SPECIFICATIONS:

• Input Voltage: 110V or 240V (these are not dual voltage)
• Max welding current: 450A @ 60%
• Max load – turntable in the flat horizontal: 300kg (based on no offset loadings)

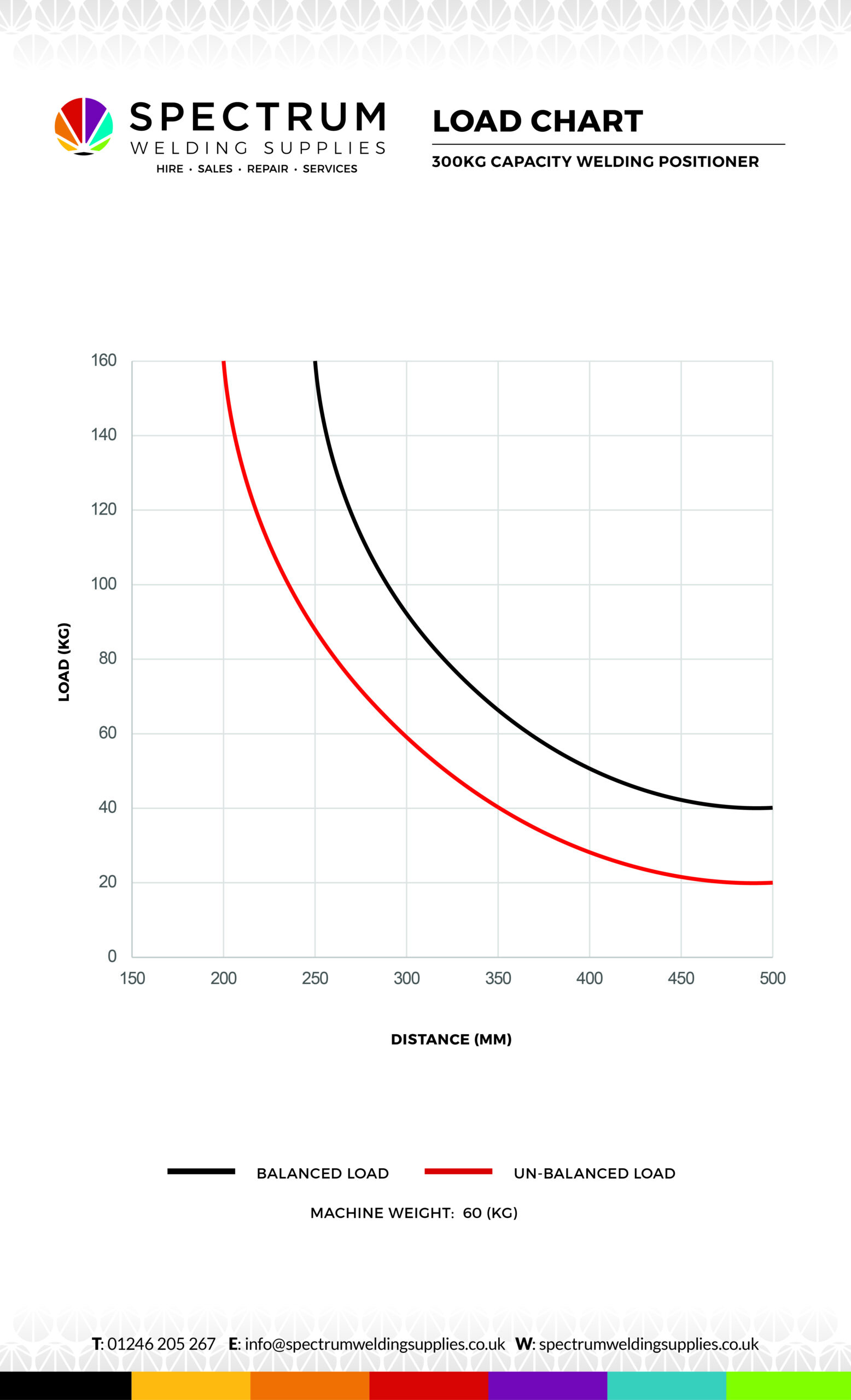

• Max load – tilted turntable in the 90° vertical position @ 200mm: 130kg (with no support on other end – based on even Centre of Gravity C of G weight distribution)
• Max load – tilted turntable in the 90° vertical position @ 300mm: 100kg (with no support on other end – based on even Centre of Gravity C of G weight distribution)
• Max load – tilted turntable in the 90° vertical position @ 400mm: 70kg (with no support on other end – based on even Centre of Gravity C of G weight distribution)
• Max load – tilted turntable in the 90° vertical position @ 500mm: 40kg (with no support on other end – based on even Centre of Gravity C of G weight distribution)
• Rotation speed: 0.1 – 2.5 rpm
• Table diameter: 450mm
• Dimensions: H:600mm, W:550mm, L:600mm

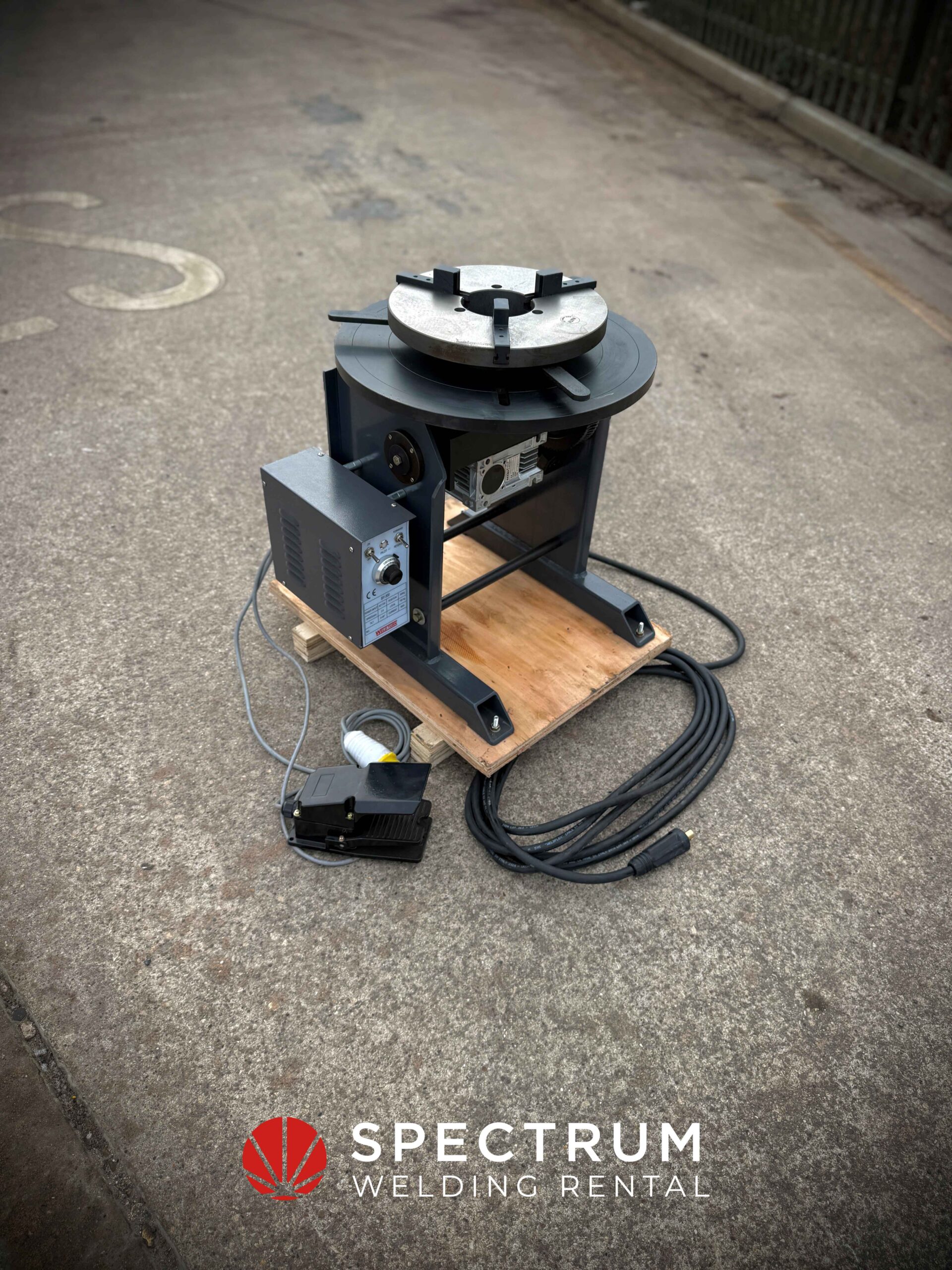

• Foot pedal operated (3mtr)
• Inc. 4mtr earth lead with Dinze Plug
• Machine weight: 50kg (exc. 300mm chuck @ 10kg)
• MUST BE BOLTED DOWN
