UK's largest fleet of ESAB Submerged Arc Tractor systems

The Versotrac submerged arc welding tractor is designed with welders in mind, focusing on simplicity, versatility, adaptability, and high performance. It features an intuitive user-friendly EAC10 controller with a simplified interface, for easier operation and real-time heat input monitoring.

Key Features and Capabilities:

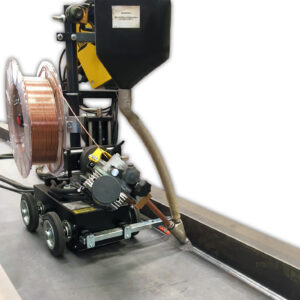

• Modular and Adaptable Design – Can be used with or without track, with runner guides or angle track for perfect guidance. The EWT 1000 has been upgraded with enhanced stability and unlimited adjustability. This automated tractor can be re-assembled in minutes, and can get into the smallest of confined spaces ie. when getting it into position inside a ship at shipyards.
• High-Performance Welding – Supports single-wire welding up to 5.0mm with an output of 800 amps at 100% duty cycle, and tandem head configuration available and in stock here at Spectrum, for increased productivity.
• Optimized Arc Control with ESAB LAF 1001 – By integrating the LAF 1001 power source, users benefit from precise welding parameter control, smooth arc starts, and consistent stable weld quality at high currents for demanding high-duty applications.
• Ergonomic Wire Handling – Features a new wire bobbin holder that lifts on and off, and user-friendly built-in memory functions to reduce downtime and improve arc time.
• Easy to Transport – Designed with rugged, modularized components and ergonomic handles for easy mobility.

Our rental Versotrac and ESAB LAF 1001 is the ultimate solution for bridge beam welding. Our rental equipment ensures exceptional high-productivity welding performance, making it a reliable and efficient solution for heavy-duty industrial applications.

Benefits of Submerged Arc Tractor Welding

High Deposition Rates

Submerged arc tractor welding delivers exceptionally high weld metal deposition rates compared with many manual and semi-automatic welding processes. This makes it ideal for heavy fabrication, thick plate work, structural steel, pressure vessels, pipe sections, and large engineering components where productivity and throughput are critical. Wherever submerged arc can be practically used, it absolutely should be used due to its unrivalled productivity and weld quality. Compared with manual MAG welding, SAW can require up to four times fewer runs to complete the same joint preparation, making the process dramatically faster and, in many applications, up to ten times easier to execute consistently. For long seams, thick plate, structural work, and pipe fabrication, it remains the benchmark process for speed, strength, and repeatable high-quality results.

Consistent Weld Quality

Because the tractor travels at a controlled and uniform speed, the welding process produces highly consistent weld profiles, penetration, and bead appearance. This repeatability significantly reduces the risk of human error and ensures high-quality welds across long seams and repetitive production runs.

Excellent Penetration on Heavy Sections

SAW tractor systems are a high-amperage process and are particularly effective on thick materials, offering deep and reliable penetration. This makes them well suited for heavy-duty applications such as structural fabrication, bridge components, offshore equipment, pressure vessels, and large diameter pipe welding.

Purest Form of Weld

Submerged arc welding is widely regarded as the purest and highest-quality form of weld achievable for heavy fabrication and repetitive production work. With the wire and arc fully submerged beneath a protective layer of flux, the weld pool is completely controlled, shielded from atmospheric contamination, delivering exceptional weld integrity, targeted zones, deeper penetration, and a remarkably low dilution rate.

Increased Productivity

Automated travel speed and continuous wire feed allow long weld runs to be completed much faster than manual welding methods. Reduced stop-start interruptions and faster welding speeds improve production efficiency, helping reduce labour time and project costs.

Infinite Positioning for Tight Access and Narrow Pipe Welding

A key advantage of submerged arc tractor welding is its infinite positioning capability, allowing the tractor to be accurately set and adjusted for a wide range of weld orientations and applications. This flexibility makes it ideal for accessing narrow gaps, confined fabrication areas, and restricted deep down working spaces where manual welding can be more difficult and less consistent. It is also highly effective for narrow pipe and circumferential welding, delivering precise, controlled travel around smaller diameter sections while maintaining excellent weld quality, slag release, and repeatability.

Reduced Operator Fatigue

Unlike manual welding, the tractor handles the travel movement automatically. This reduces physical strain on the welder and minimises fatigue during long weld runs, improving operator comfort and allowing greater focus on weld setup and quality control.

Superior Weld Appearance

The controlled travel speed and stable arc conditions produce smooth, uniform weld beads with excellent toe blend and minimal surface defects. This often reduces the amount of post-weld grinding and finishing required.

High Duty Cycle Performance

Submerged arc tractor welding systems are designed for prolonged heavy industrial use and can operate at high currents for extended periods. This makes them ideal for demanding fabrication environments where continuous production is required.

No Spatter and Clean Working Environment

As the welding arc is completely submerged beneath a layer of granular flux, there is no visible arc flash and no spatter. This helps create a cleaner working environment and reduces time spent on cleanup after welding.

Improved Mechanical Properties

The flux shielding system protects the weld pool from atmospheric contamination such as hydrogen, helping produce sound welds with excellent mechanical integrity. The flux cools the metal down and channels the weld heat into the weld zone where it should be, meaning no weakening of the base metal, no hardening, maintaining ductility, tensility, and no overheating issues such as thermal expansion stress and cracks. Interpass temperatures do need to be adhered to though. This contributes to strong, reliable joints with highest levels of toughness and durability. It is rare to get defects when submerged arc welding, as the high amperage deposition of motlen material blends and fuses better than any welding process, due to the metallurgical physics and chemistry taking place under the slag. The parent metal and filler metal truly become unified, and no other process can weld material together metal like submerged arc.

Cost-Effective for Long Seam Welding

For long straight welds, circumferential seams, and repetitive production work, submerged arc tractor welding is highly economical. Faster welding speeds, lower labour costs, and reduced rework combine to provide excellent overall value.
