Benefits of Submerged Arc Welding Head Assemblies

Submerged arc welding head assemblies form the core of modern SAW automation systems, delivering precise wire feeding, stable arc control, and highly repeatable automated welding performance across heavy fabrication and production welding applications. Used extensively with column and boom manipulators, beam welders, gantry welders, and dedicated automated welding systems, SAW head assemblies allow fabricators to dramatically increase productivity, weld quality, deposition rates, and overall welding consistency.

Designed for Advanced Welding Automation

Submerged arc head assemblies are specifically engineered for integration with automated welding systems including column & boom manipulators, beam welders, circumferential welding systems, gantry welding systems, and large-scale production automation environments. Their robust construction and precise wire feed control make them ideal for continuous heavy-duty welding operations.

Heavy-Duty Industrial Wire Feed Performance

Industrial SAW head assemblies utilise extremely robust wire feed systems designed to maintain highly stable wire delivery during prolonged high-amperage welding applications. This ensures smooth arc characteristics, improved penetration consistency, and reliable high-deposition welding performance across demanding fabrication environments.

Easy-to-Use PEK Controller Systems

Modern submerged arc systems such as ESAB PEK controller packages provide highly intuitive digital control over welding voltage, amperage, wire feed speed, travel speed, and welding parameters. This allows operators to quickly optimise welding performance whilst improving setup repeatability and reducing operator variation across production welding operations.

Compatible with Single, Tandem & Multi-Wire Systems

Submerged arc welding head assemblies can be configured for a wide range of automation applications including:

• single wire SAW systems
• tandem twin-wire with AC Power Source & AC Head + DC Power Source & DC Head systems
• ESAB ICE™ triple-wire head assemblies
• high-deposition multi-wire configurations

This flexibility allows fabricators to scale welding productivity and deposition rates to suit varying fabrication requirements and production targets.

Industry-Standard ESAB A6 Arc Master Systems

The ESAB A6 Arc Master head assembly paired with the ESAB LAF 1001 power source remains one of the most widely respected submerged arc automation systems within heavy engineering and fabrication industries. These systems provide exceptional reliability, stable welding performance, and excellent compatibility with both manual and powered slide automation packages.

Manual & Powered Slide Integration

SAW head assemblies can be supplied with manual fine-adjustment slides or fully powered slide systems for precise torch positioning and automated seam tracking. Powered slide systems are especially beneficial where operators cannot easily access adjustment handles or where highly accurate automated positioning is required.

Exceptional Deposition Rates & Weld Quality

By maintaining highly stable wire feed performance and precise welding parameters, submerged arc head assemblies allow exceptionally high deposition rates, deep penetration, and highly repeatable weld quality compared to manual welding processes.

Upskilling & Modernising Fabrication Workshops

Submerged arc welding head assemblies represent a major step forward in welding automation capability, helping fabrication companies modernise production processes, improve operator consistency, reduce fabrication time, and achieve significantly higher welding standards across critical engineering applications.

OPC Flux Recovery Systems

OPC flux recovery systems provide fully automated recovery and recirculation of unused submerged arc welding flux during production welding operations. By continuously vacuum recovering excess flux from around the weld zone and returning it back into the hopper system, OPC units dramatically improve workshop efficiency, reduce flux waste, minimise operator cleanup time, and maintain cleaner working conditions around large submerged arc welding applications. Flux recovery systems are especially beneficial during long seam welding, circumferential vessel welding, and high-deposition automated production environments where large quantities of flux are continuously consumed.

GMH Seam Join Tracking Systems

GMH seam tracking systems provide highly accurate automated weld joint tracking during submerged arc welding operations, ensuring the wire remains perfectly positioned within the weld preparation throughout the entire welding cycle. Integrated with powered slide assemblies, the seam tracker continuously detects and compensates for weld prep variation or drift, automatically adjusting the welding head position in real time. This eliminates manual correction, improves weld accuracy, reduces the risk of arc wandering, and ensures highly repeatable weld quality across long seam and automated production welding applications.

Swivel Bracket Head Positioning Systems

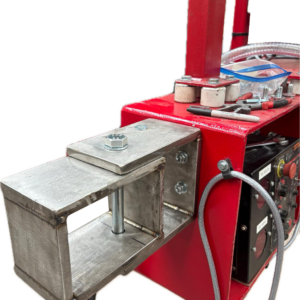

Swivel bracket positioning systems provide exceptionally fast and versatile submerged arc welding head repositioning across complex fabrication applications, allowing the welding head assembly to be rapidly relocated without needing to rotate the entire column & boom manipulator on its 360° giro slew or reposition the fabrication itself. With a massive 270° swivel range and 250kg load capacity, these heavy-duty brackets allow operators to quickly transition between circumferential welding, longitudinal seam welding, and difficult access welding positions whilst maintaining highly accurate torch positioning.

The swivel bracket is specifically designed to work alongside powered slide assemblies, allowing the welding head and wire feeder package to be repositioned far beyond the normal movement range of standard slide systems alone. This dramatically improves weld accessibility around nozzles, protrusions, stiffeners, and difficult fabrication geometries whilst reducing the need to repeatedly spin the column, reposition the workpiece, or lift the fabrication using overhead cranes.

Typically, the swivel bracket allows the submerged arc nozzle assembly to be offset approximately 90° to the side, but when combined with fine tune slides and secondary swivel slide systems, the welding head can be repositioned through extremely wide movement ranges — including folding the head assembly back towards itself where required. This creates an exceptionally flexible automation setup capable of reaching difficult weld preps quickly and efficiently whilst saving substantial setup and repositioning time during production welding operations.
