Benefits of Conventional Welding Rotators

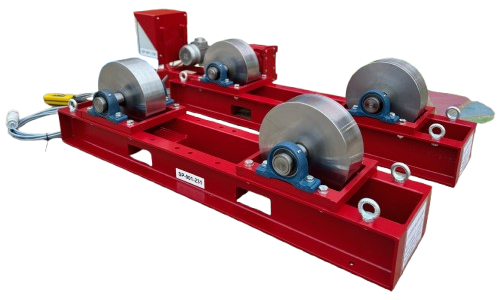

Designed for precision setup, maximum stability, and controlled rotation, conventional welding rotators are the preferred solution for workshop-based fabrication where pipe diameter is known and accurate adjustment is required. Offering superior flexibility in wheel positioning and lower working heights, these systems provide excellent control for high-quality circumferential welding applications.

Adjustable Wheel Centres for Precise Diameter Control

Conventional welding rotators allow the operator to manually adjust the wheel spacing to suit specific pipe and vessel diameters, from very small narrow pipe through to large-diameter fabrications. This provides far greater control and accuracy compared to fixed or self-adjusting systems when working with known job sizes.

Ideal for Repetitive Production Work

Once set, conventional rotators provide a highly stable and repeatable setup, making them ideal for batch production, pipe shops, and fabrication environments where the same or similar diameters are welded regularly.

Lower Working Height for Improved Clearance

Unlike self-aligning rotators, conventional systems typically keep the workpiece lower to the ground, which is a major advantage when working under:

• column & boom manipulators
• overhead cranes
• workshop height restrictions

This allows larger diameter cylinders to be welded without exceeding boom lift limits or crane clearance.

Improved Compatibility with Column & Boom Systems

The lower working height means cylinders can sit closer to the floor, allowing the column and boom arm to reach over the workpiece more easily, particularly on larger diameter vessels or when working within restricted workshop environments.

Enhanced Stability & Load Control

With fixed, correctly set wheel centres, conventional rotators provide excellent load distribution and stability, reducing movement during welding and improving overall weld consistency and safety.

Efficient Setup for Known Fabrications

For workshops working with predefined fabrication sizes, conventional rotators offer a simple, reliable, and highly efficient setup process, ensuring the system is optimised for each specific job.

Compact Design & Reduced Footprint

Conventional welding rotators are typically smaller, narrower, and more compact than self-aligning systems, making them far easier to position within busy fabrication workshops. Their reduced footprint allows better access around the job, minimises obstruction during welding operations, and helps prevent interference with protruding fittings, nozzles, or attachments on cylinders and vessels.

Load Spread & Denting Control

While self-aligning rotators are designed to distribute load across multiple wheels to reduce the risk of denting, conventional welding rotators can achieve similar results when correctly configured. By using larger capacity rotators with wider wheels, combined with additional idler units to spread the load, conventional systems can effectively support thin-wall large-diameter fabrications, such as 8mm stainless steel vessels, reducing localised pressure points and minimising the risk of deformation during rotation.
