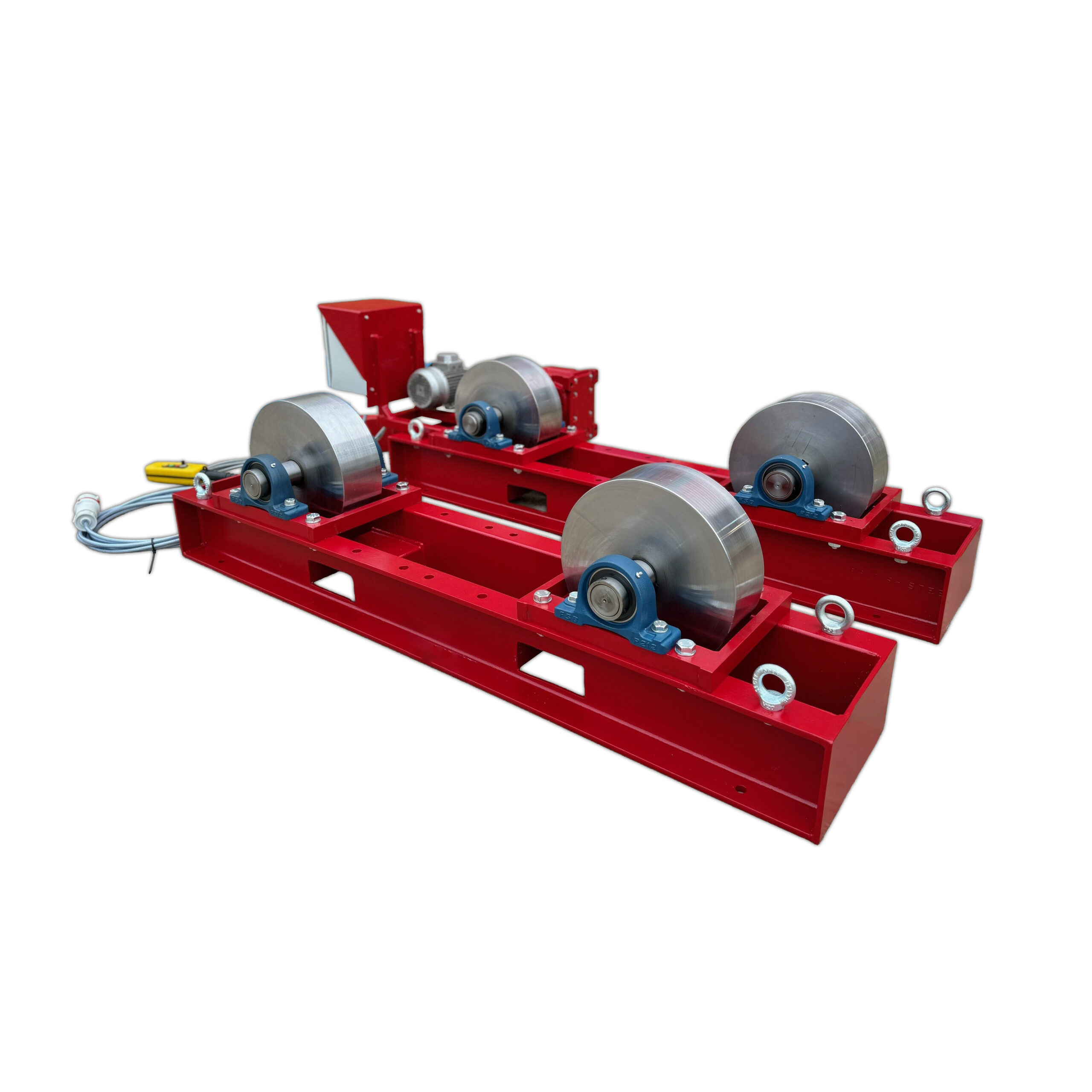

10 TONNE STEEL WHEEL ROTATOR SET @ £250 P/WEEK

• SET = 1x drive & 1x idler
• SET CAPACITY: 10 tonnes
• DRIVE CAPACITY: 5,000KG
• IDLER CAPACITY: 5,000KG
• 200mm MIN to 2500mm MAX diameter capacity
• Variable speed
• 415V
• 15mtr pendant control

DIMENSIONS:

• DRIVE LENGTH: 1880MM
• DRIVE WIDTH:  360MM (DRIVE BOGIE IS 600MM WIDE)
• DRIVE HEIGHT:  500MM
• DRIVE LENGTH: 1880MM
• DRIVE WIDTH:  360MM
• DRIVE HEIGHT:  500MM

UK MANUFACTURED HERE AT SPECTRUM WELDING

• Fully in-house designed
• Inverter control panel wired and made at Spectrum
• Fabricated, machined, painted, built
• BS EN 1090-3 / LRQA ISO 9001
• GA and CAD drawings + numbered wiring diagram
• Gearbox ratio / motor kW / torque & travel speed configured
• Steel & component kN load calculation test document
• Load tested
• CE Marked
