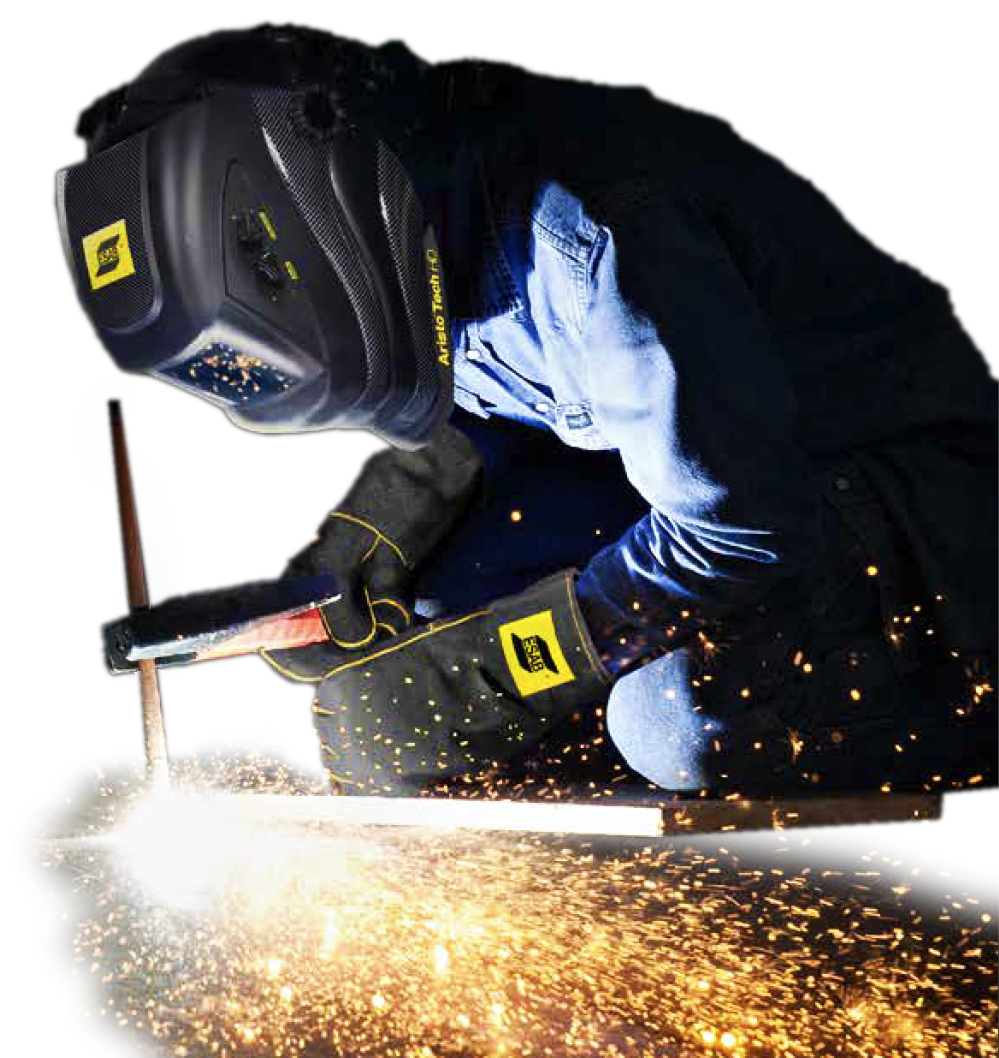

What is Air Arc Gouging

Air arc gouging (also known as air carbon arc gouging) is a metal removal process that uses an electric arc and a stream of compressed air to melt and remove metal from a workpiece. It can gouge perfect sized U-shaped prep channels into steel (different carbons achieve different width/depth), allowing for a full penetration weld. It can skim off the top, or go in the deep. It is also very fast and efficient, and commonly used within welding and fabrication for:

• Steel preparation
• Weld preparation
• Foundry production
• Demolition
• Steel repair work
• And cuts through any steel

Gouging carbons can achieve any width and depth cut when ARCAIR gouging defective weld runs, and can prepare surfaces for new welding. Any unwanted material can be quickly removed and done very easily.

How It Works:

1. Electrode: A carbon-graphite electrode is used to create an electric arc between the electrode and the metal surface.
2. Arc Heat: The arc generates extreme heat, melting the metal.
3. Compressed Air: A high-velocity jet of compressed air blows away the molten metal, creating a groove.

Essential for back gouging:

For a double V-Groove / double U-Groove , or 2/3^rd 1/3^rd front and back prep, back gouging will be needed for cleaning the MAG root out on the other side. Back gouging will open up the other side ready for sub arc runs, in order to gain access for penetration. This will get rid of porosity and gaps for defect-free full penetration.

• Air arc back gouging is essential for removing weld metal from the backside of a joint, typically a groove weld, to create a clean and sound surface for welding the back side.
• Essential preparation for the backside of a weld for an additional pass, ensures a sound and defect-free weld root
• This is done to ensure complete fusion and to remove any defects like porosity or inclusions that might be present. It's a crucial step in achieving high-quality welds, especially in thicker materials or when complete joint penetration is required
• It involves removing weld metal from the back side of a groove weld, usually after the first weld pass has been completed from the front side
• Complete Joint Penetration: Ensuring the weld penetrates all the way through the joint
• Removing Defects: Eliminating porosity, slag inclusions, and other defects that might have formed during the initial weld pass
• Needed to achieving X-ray quality welds, and to guarantee meeting stringent quality requirements in critical application
• Eliminates the need to gouge out full runs of weld if defects are later found (which would mean major down time and potentially scrapping the job)

Equipment Required:

• A DC welding power source (usually constant current) configured for ARCAIR
• Carbon-graphite electrodes (often copper-coated)
• Compressed air supply (minimum compressor required is a 270 ltr tank / 23 CFM FAD usable air / 8 bar cut-in / 7.5 HP / 415V)
• Full personal protective equipment (PPE) with Shade 13 welding helmet (high amperage brightness), and due to sparks and metal splatter

Advantages Over Other Methods:

• Far faster and smoother than grinding
• More precise than oxy-fuel cutting for gouging applications
• Can be used in various positions (flat, vertical, overhead)
