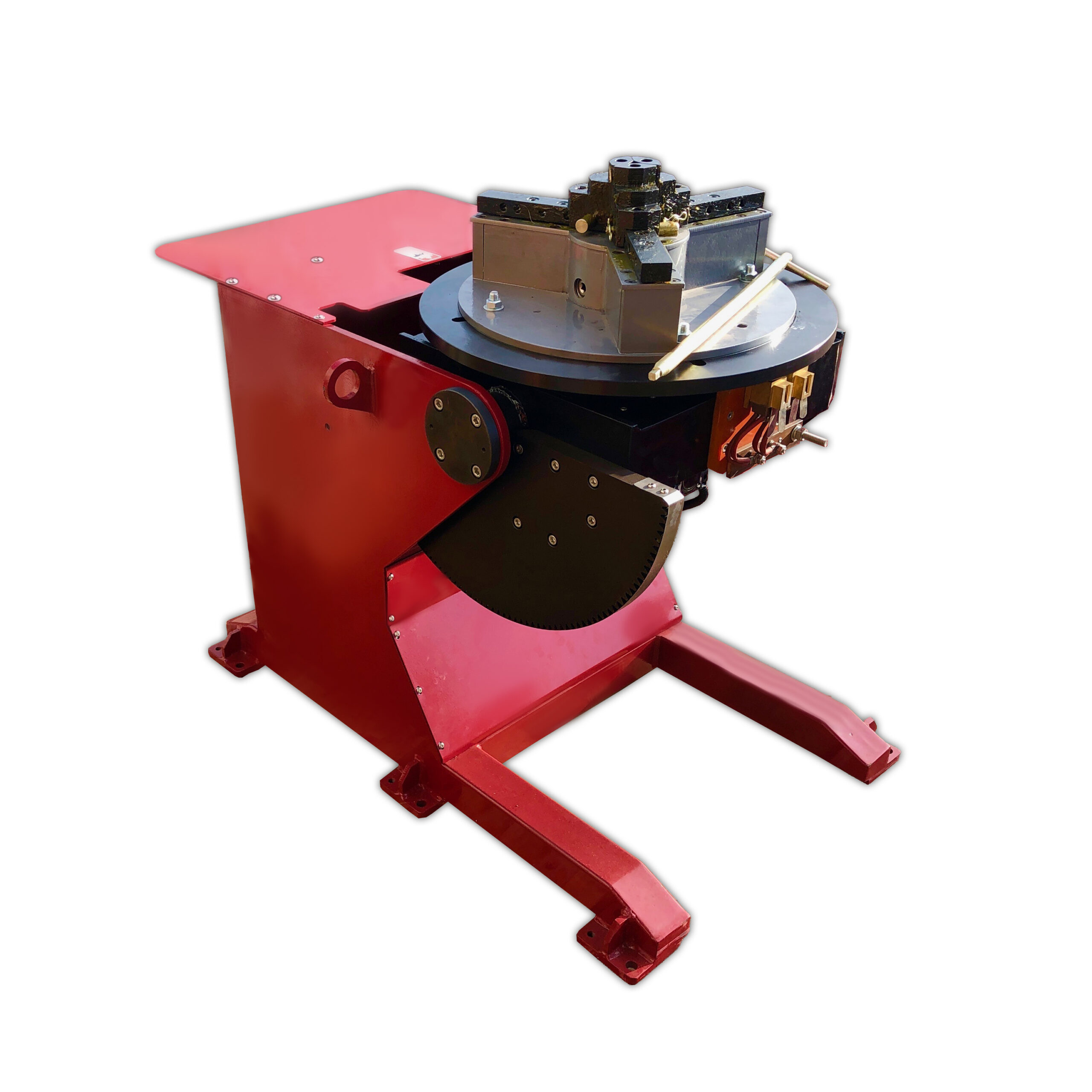

Product Description
- Input Voltage: 110V single-phase
- Amperage load: 7 amps (16amp yellow plug fitted as standard)
- Up / Down limit switches: Fitted
- Controls: Fitted to control panel
- Foot pedal control: 5mtr cable as standard (left / right twin pedal)
- Max welding current: 500A @ 60%
- Max load – turntable in the flat horizontal: 500kg (based on no offset loadings)
- Tilt range: 135° in 50 seconds
- Max diameter ‘cylindrical’ job capacity with vertical titled table without hitting front legs: 1300mm
- Length: 1295mm
- Width: 752mm
- Height from floor to top of flat table: 861mm
- Table diameter: 620mm
- Distance from floor to centre of table with 90 degree vertical tilted table: 743mm
- Distance from top of front legs to centre of table with 90 degree tiled vertical table: 643mm
- Leg height: 100mm
- Front leg stick out past vertical tilted table: 284mm
- Table slots: 4x M16 (subject to model)
- Weight: 500kg (exc. 300mm chuck @ 40kg / 500mm light-duty chuck @ 70kg)
- Please email us for exact dimensions , as some models can vary in size / weight

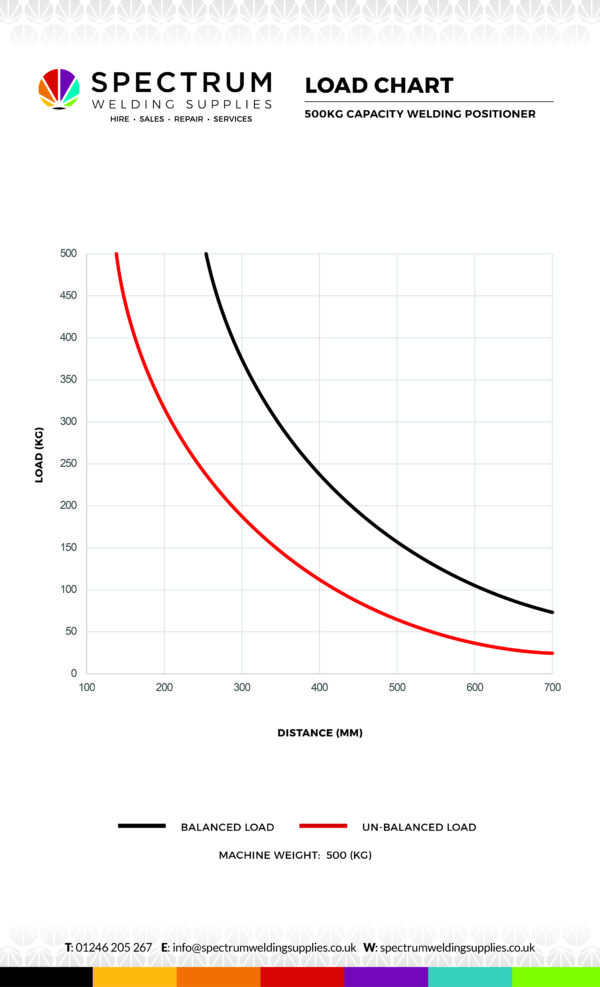

SAFETY GUIDE: MAX LOAD and TOTAL DISTANCE from the table when tilted 90° in the vertical position / based on EVEN balanced weight distribution / with no support at the other end
- @ 200mm: 400kg
- @ 300mm: 350kg
- @ 400mm: 300kg
- @ 500mm: 250kg
SAFETY GUIDE: MAX LOAD and TOTAL DISTANCE from the table when tilted 90° in the vertical position / based on UN-EVEN / ECCENTRIC / OFFSET weight distribution / with no support at the other end
- @ 200mm: 250kg
- @ 300mm: 200kg
- @ 400mm: 150kg
- @ 500mm: 125kg
See spec sheet: 500kg Welding Positioner
