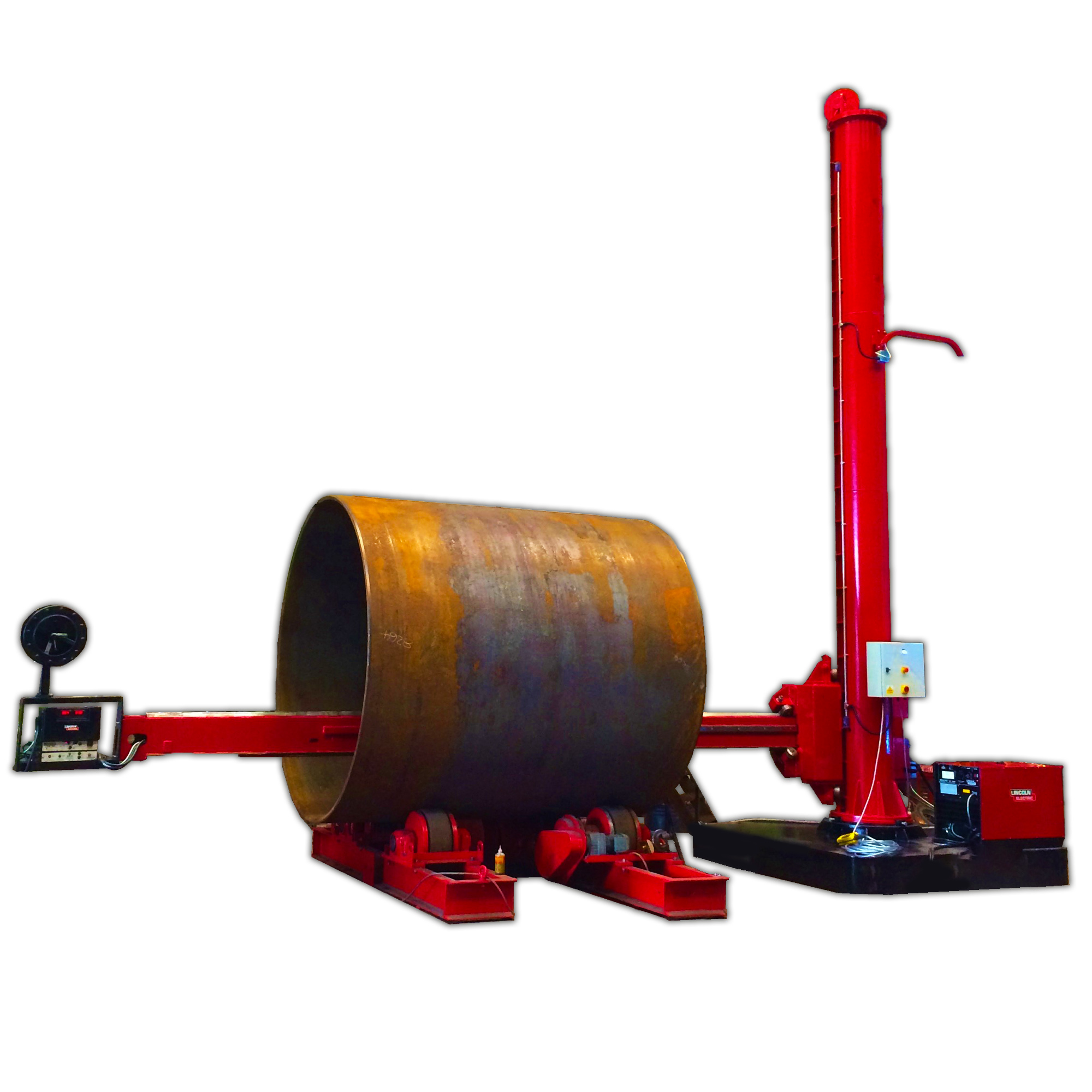

6 x 6 SPECIFICATIONS:

• Max height (floor to underside of boom): 6000mm
• Boom longitudinal travel (A to B): 6000mm
• Column centre to end of arm: 7500mm
• CaB height: 7500mm
• Boom length: 9000mm
• Assembled CaB weight: 6,000kg
• Duty rating: Medium-duty
• Boom mounting: One end suitable
• Boom max load capacity: 200kg total
• Maximum weight at the end of arm: 200kg @ 1000mm
• Maximum distance from end of boom: 1000mm
• Supply voltage: 415V (32 amp plug)
• Controller: 15m handheld pendant
• Controls: Up/down/forward/reverse/stop/e-stop/variable speed

NOTE. Head assembly & 30kg spool holder can be mounted on the same end

STANDARD ESAB SAW PACKAGE @ £100 P/WEEK INCLUDES:

• ESAB LAF 1001
• A6S Arc Master wire feeder head assembly
• PEK controller
• Steel flux hopper
• Plastic spool holder
• Laser guide
• 210mm manual X/Y fine tune slides
• All welding cables and controller cables
• Setup for 3.2mm wire.

ESAB A6 S Arc master head assembly to be hired with one of our modern rental column and boom manipulators as a package complete.

We would do all the fitting, assembly, install, and commissioning.
