SPECS:

• 250amps @ 100%
• 300amps maximum output (don’t go over 250amps)

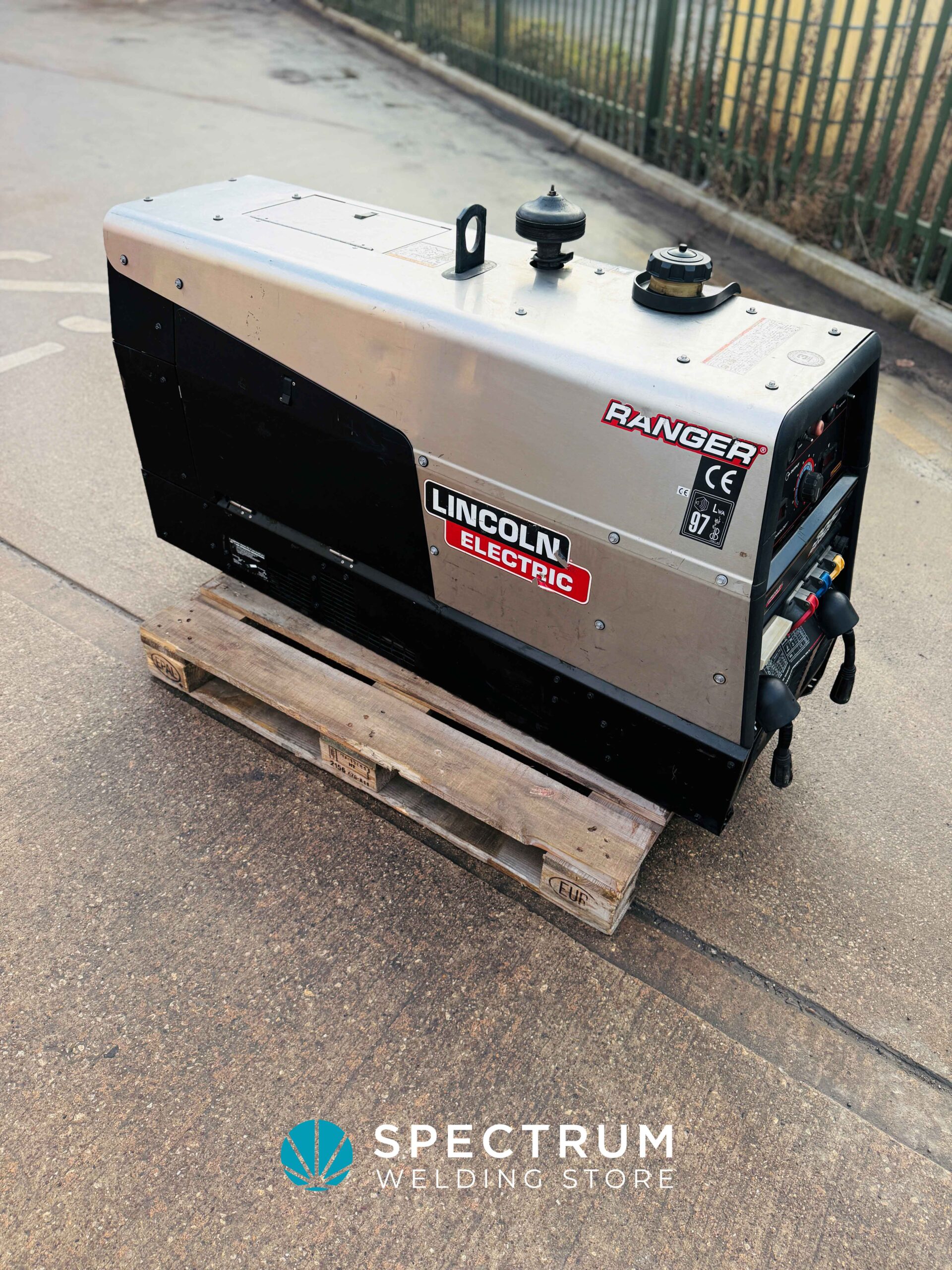

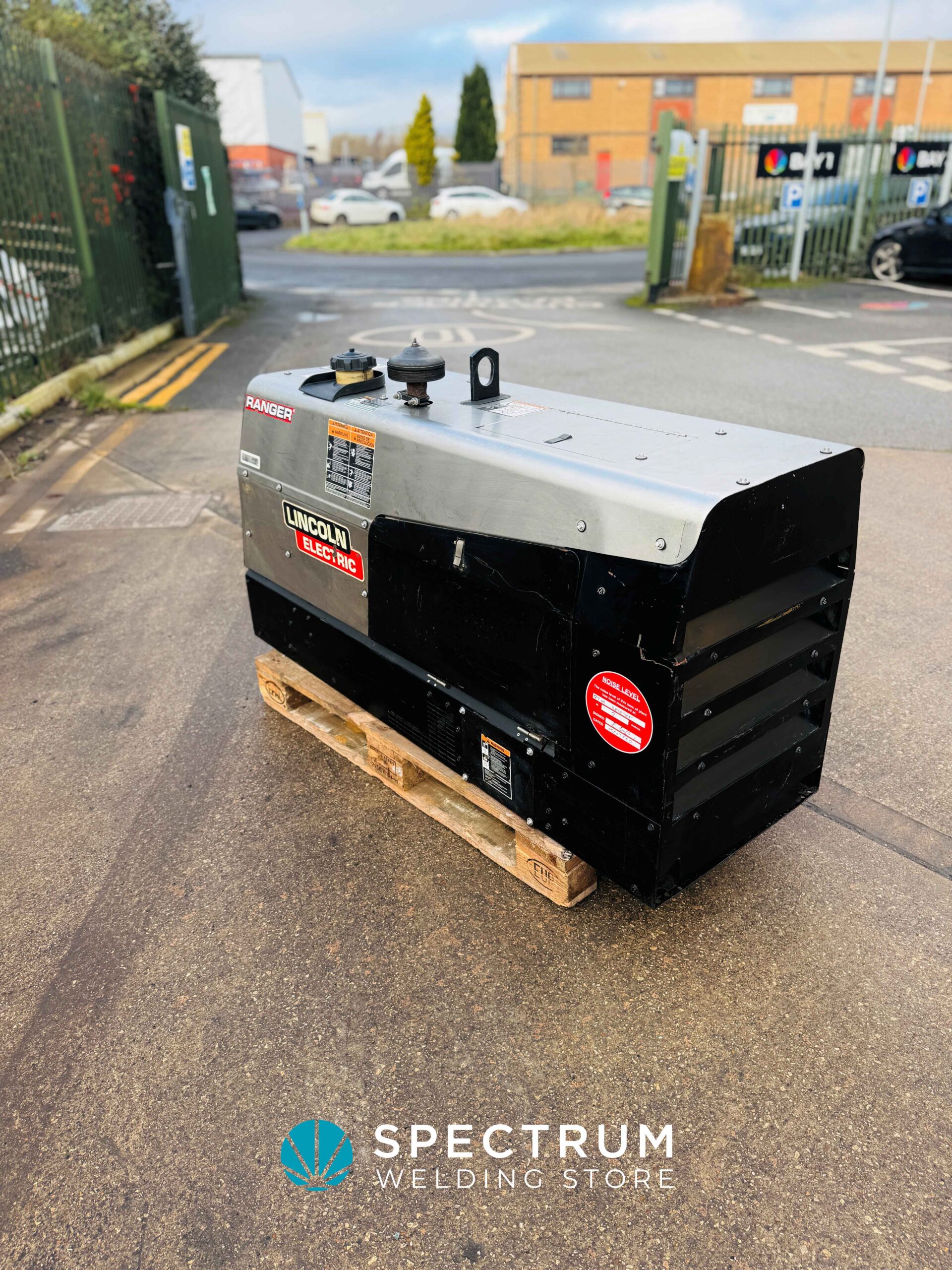

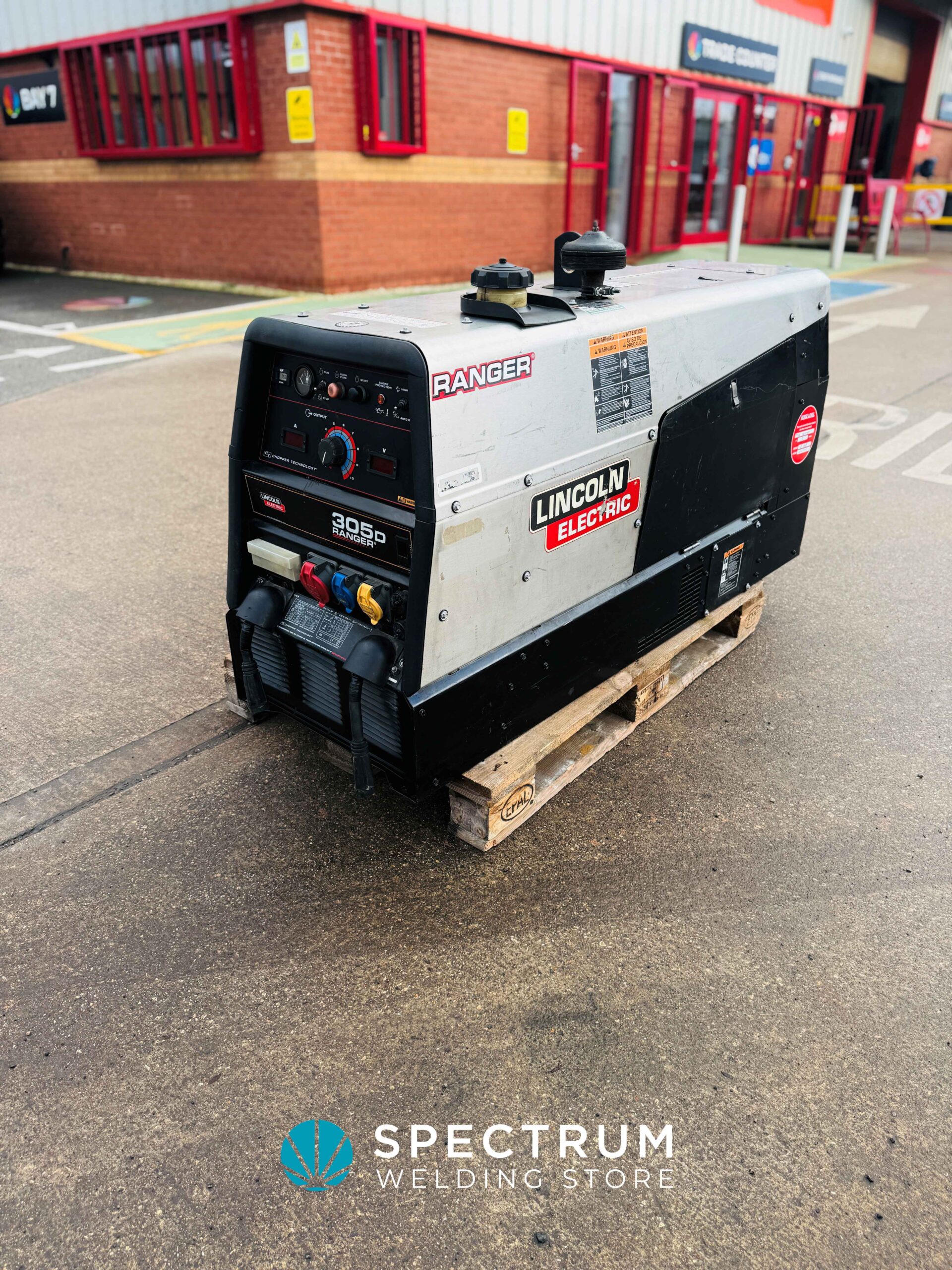

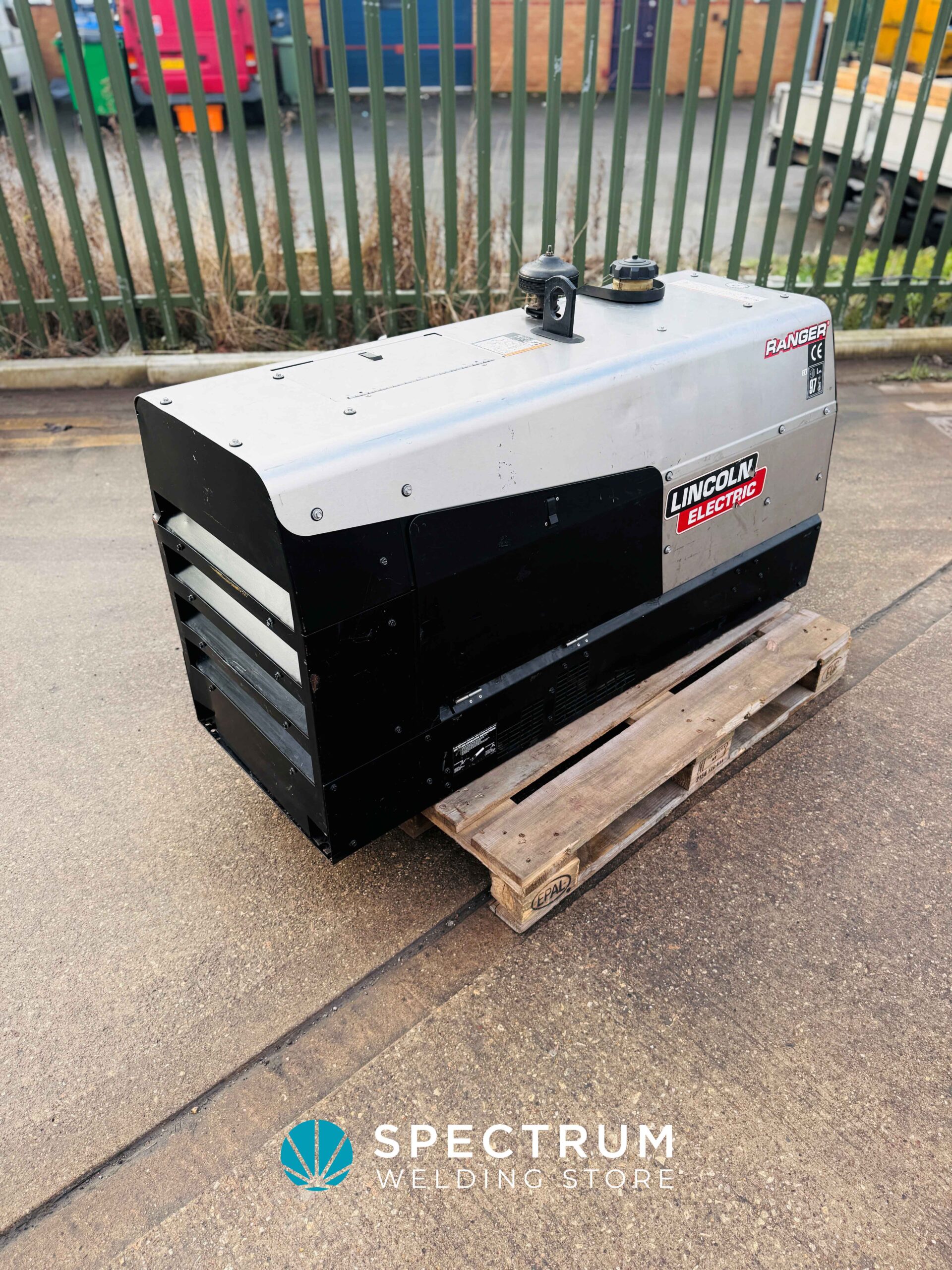

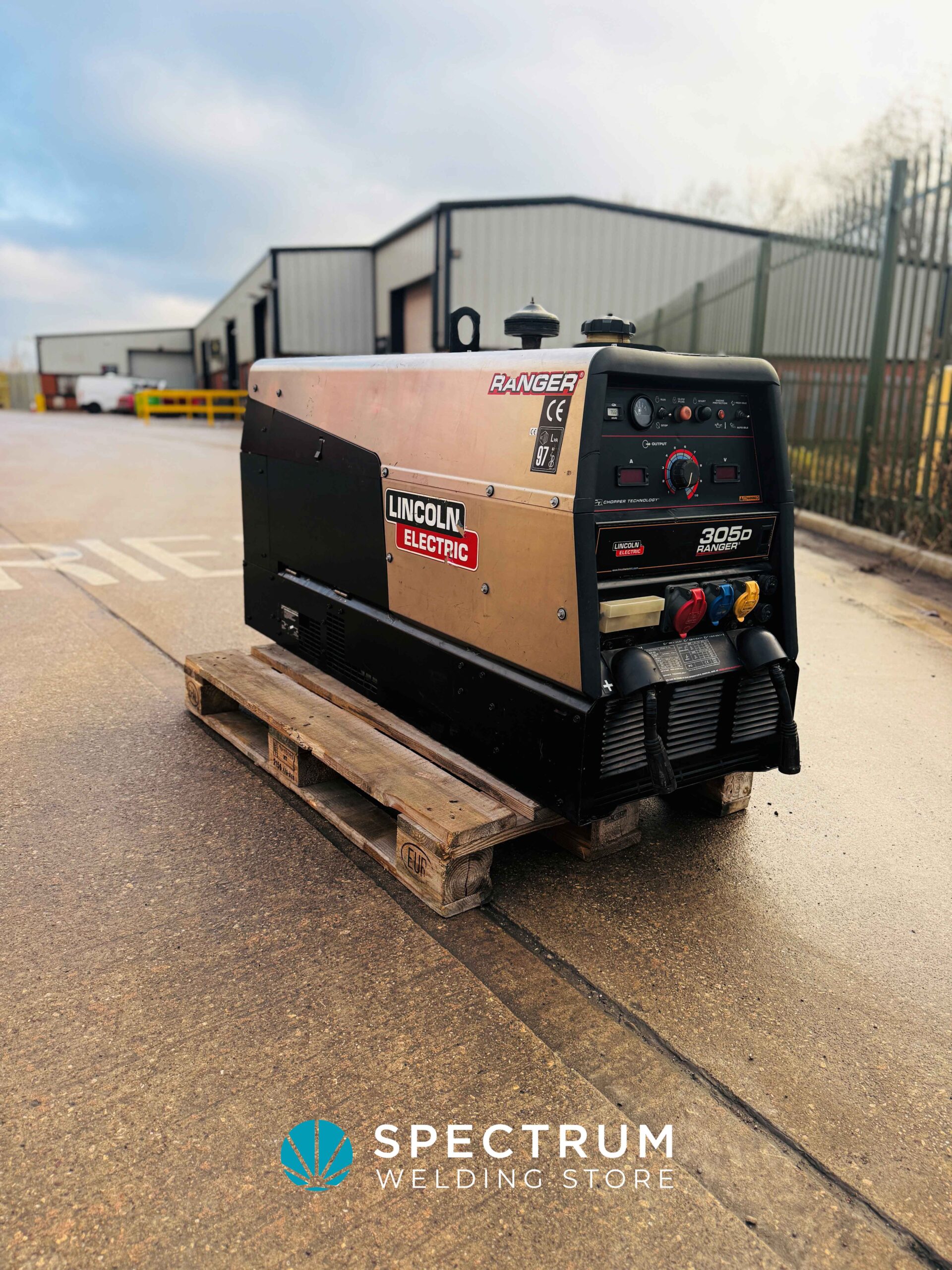

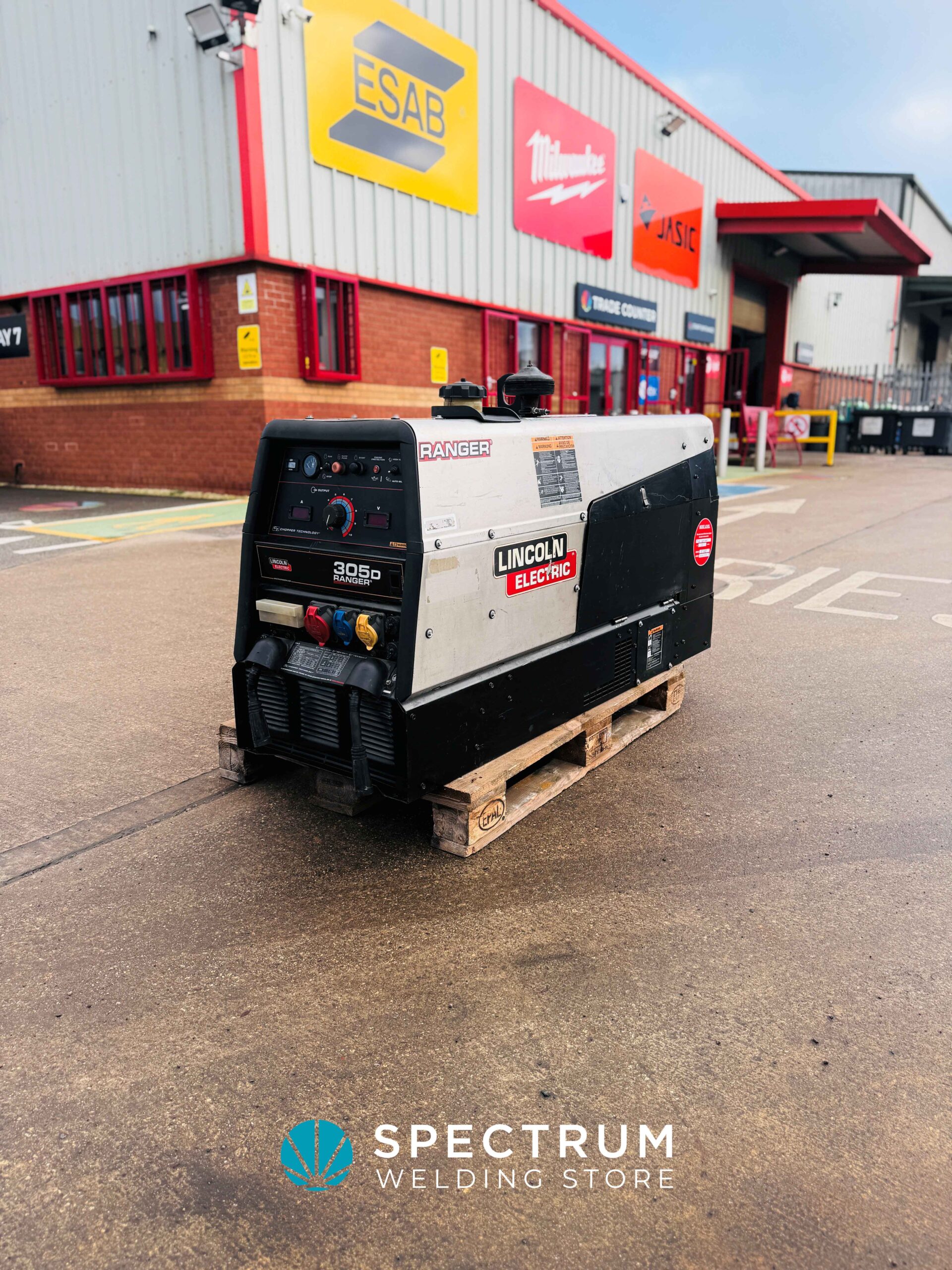

• Comes on skids (on a euro pallet)
• 341 kg dry weight
• Can stick weld up to 5.0mm 7018 electrodes (which need 190-260amps subject to plate thickness)
• Designed for MIG welding 0.8mm and 1.0mm solid wire
• Designed for welding 1.2mm FCAW-G dual shield gas-shielded all-positional wire
• 110V 16amp yellow auxiliary @ 2 kVA (4 ½ and 5″ grinder maximum)
• 240V 16amp blue auxiliary @ 4 kVA

NOTE. 9″ grinders are 2200 watt, so they a minimum of 2.5 kVA. When on 110V they also pull 24amps, and need a 32amp yellow plug

NOTE. 5″ 110V grinders are 1100 watt, so 2 kVA is perfect

NOTE. When used with a RobustFeed AVS MIG setup, 1.2mm flux-cored gas-shielded all-positional rarely needs more than 240amps, and is the perfect wire

NOTE. DO NOT go over the 250amps @ 100% duty rating. Using @ full power will quickly damage the machine and voids warranty

NOTE. CAN NOT air arc gouge!!! 6.0mm gouging carbons need a minimum of 320amps
