Benefits of Pulsed MIG Welding

Pulsed MIG welding technology provides superior arc control, lower heat input, and exceptional weld appearance, making it one of the most advanced and versatile welding processes for modern fabrication, stainless steel, aluminium, and high-quality production welding applications. By rapidly pulsing between peak and background current, pulsed MIG delivers smooth metal transfer with significantly reduced spatter and improved operator control.

Reduced Heat Input & Distortion

Pulsed MIG welding dramatically reduces overall heat input compared to conventional spray transfer welding, helping minimise distortion, burn-through, and heat affected zone size, particularly on thinner materials and stainless steel fabrications.

Exceptional Weld Appearance

The stable pulsed arc produces extremely smooth weld beads with excellent toe blend, reduced spatter, and improved consistency, delivering a cleaner, more professional finished appearance.

Improved Control on Thin Materials

Pulsed MIG allows greater welding control at lower amperages whilst still maintaining spray-like metal transfer, making it ideal for thinner gauge materials where conventional spray transfer would introduce excessive heat. When set for thin stainless, pulse can be manipulated to achieve welds that look identical to TIG, only automated and fast.

Superior Aluminium Welding Performance

Pulsed MIG is widely used for aluminium fabrication due to its smooth arc characteristics, controlled droplet transfer, and ability to reduce burn-through whilst maintaining excellent fusion and weld quality. When used with premium aluminium shielding gases such as BOC Alushield specifically for pulse MIG process, the welding performance is improved even further. Usually this gas is introduced when welding thicker section aluminium for deeper penetration, but this is a high quality production gas. When combined with pulse you can expect exceptionally clean welds, smoother arc stability, enhanced wetting action, focused HAZ, faster travel speeds, reduced soot deposits, and highly aesthetic aluminium weld appearance with minimal spatter and near zero post-cleanup requirements.

Reduced Spatter & Post-Weld Cleanup

The controlled pulsed arc significantly reduces weld spatter, lowering cleanup time, improving workshop efficiency, and reducing consumable waste across production welding operations.

Enhanced Positional Welding Capability

The stable arc and controlled weld pool make pulsed MIG easier to use in positional welding applications, improving operator control and weld consistency on more challenging fabrication work.

Increased Productivity & Operator Comfort

With smoother arc characteristics, easier weld pool control, and reduced cleanup requirements, pulsed MIG welding improves overall production efficiency whilst reducing operator fatigue during long welding operations.

Ideal for High-Quality Fabrication Applications

Pulsed MIG welding is widely used across stainless steel fabrication, aluminium manufacturing, automotive, food-grade production, pipework, pressure equipment, and high-specification engineering projects where weld appearance and quality are critical.

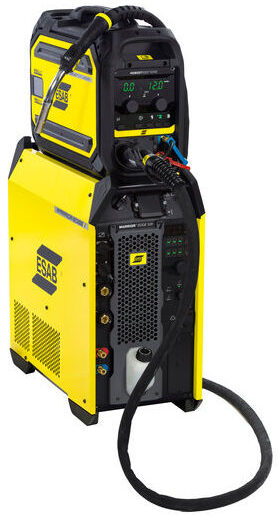

High Powered & Water Cooled Pulse MIG Systems

High-performance pulsed MIG welding systems are typically based around 500 amp high-duty power source, 95mm² thick copper cables, powerful water cooler, and 500 amp water cooled torch, due to the intense thermal load generated by advanced pulse welding technology. The pulse waveform creates extremely high-frequency energy transfer through the interlink and torch assembly, generating substantial heat that must be efficiently controlled to maintain stable welding performance. Water cooling plays a critical role by continuously removing heat from the torch neck, contact tip, power cable, and internal components, ensuring the welding system remains thermally stable during prolonged operation.

Without proper water cooling, excessive torch temperature can negatively affect weld quality, causing overheated shielding gas, unstable arc characteristics, porosity, trigger failure, consumable damage, and premature torch component failure. A correctly specified high-duty water-cooled pulsed MIG system maintains the perfect balance between high welding performance and controlled heat management, allowing exceptionally clean, precise, and low-heat input minimal-distortion welds to be achieved consistently. Let the welding machine do the work, and welds will be immaculate.
