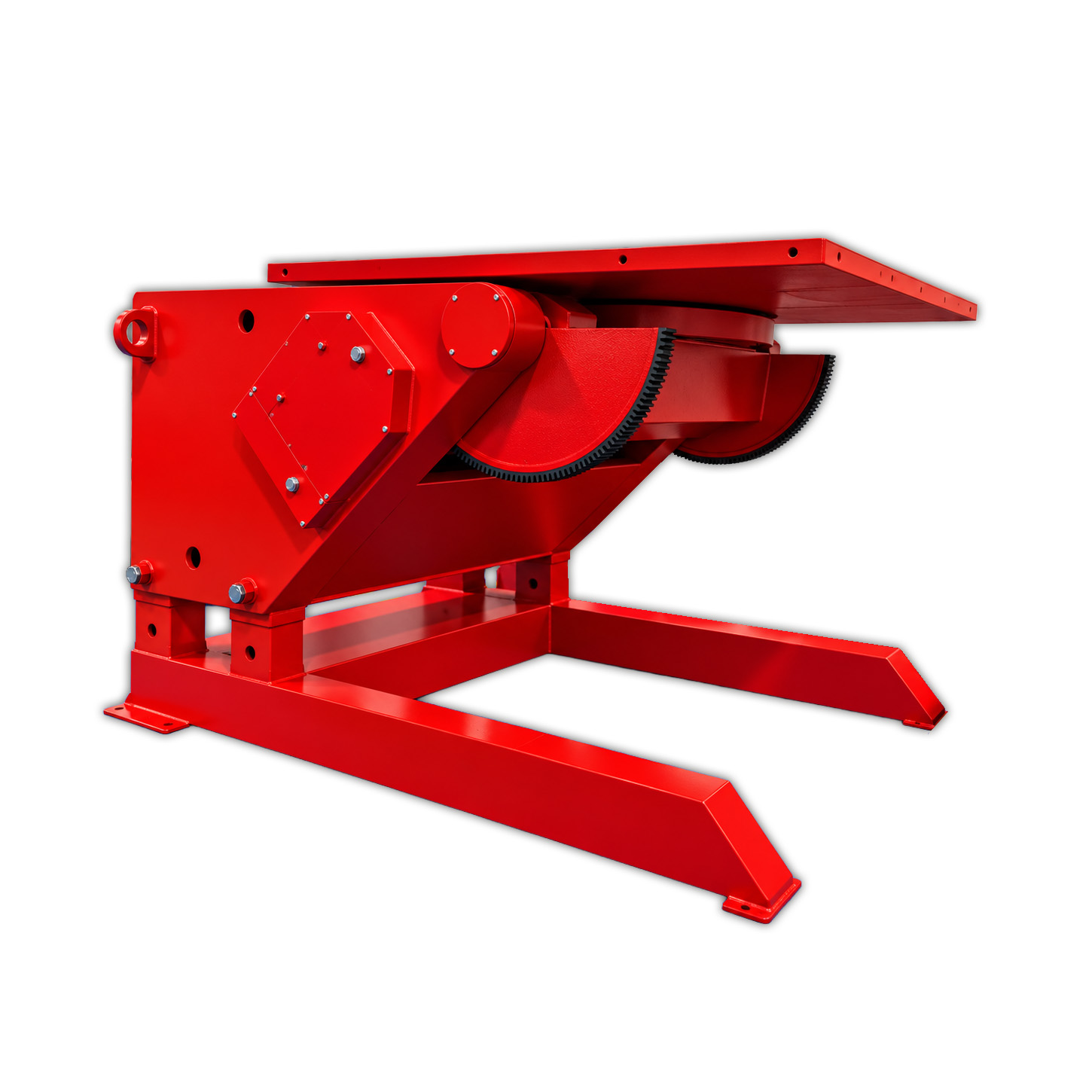

25 tonne adjustable height welding positioner for hire

TO HIRE 25 TONNE AH @ £600 p/week

A monster machine capable of tilting / turning very heavy lumps such as 7,500kg @ 1500mm away from a 90° tilted table (free-floating / unsupported at the other end / job attached to the table only).

The adjustable height feature allows for extreme jobs wider than 5 metres to be attached to the table and tilted vertical, without fouling on the floor.

Multiple heavy positioners in stock here at Spectrum Chesterfield.

Email us to set an account up and hire straight away.

Hire this machine

    Call 01246 205 267 or contact us below

    Product Description

    SPECIFICATIONS:

    • Maximum capacity: 25,000kg (refer to load chart)
    • Frame type: Adjustable height
    • Max diameter ‘cylindrical’ capacity @ 90°:  5160mm
    • Tilt range: 0-135°
    • Table rotation speed: 0.07 – 0.66 RPM
    • Input Voltage: 415V 3-phase
    • Amperage load: 36amps (63amp 4-pin or 5-pin plug)
    • Safety devices: Up/Down limit switches (Phase sensitive)
    • Pendant control: 10m
    • Pendant controller: Forward/reverse/stop/e-stop/variable speed
    • Max welding current: 400A @ 60%

    NOTE: If it is not tilting, an electrician will need to swap L2 & L3 in the plug to engage the limit switches.

    DIMENSIONS:

    • Length: 3500mm
    • Width: 2600mm
    • Height: 1900mm
    • Table diameter: 2400mm
    • HEIGHT SETTING 1 floor to centre of table: 1680mm
    • HEIGHT SETTING 2 floor to centre of table: 1980mm
    • HEIGHT SETTING 3 floor to centre of table: 2280mm
    • HEIGHT SETTING 4 floor to centre of table: 2580mm
    • Weight: 10,000kg
    Want more information? Call us...
    01246 205 267 info@spectrumweldingsupplies.co.uk
    Positioner Capacity

    25 tonne

    Positioner Height

    Variable height

    Downloads

    Download 25 tonne load chart
