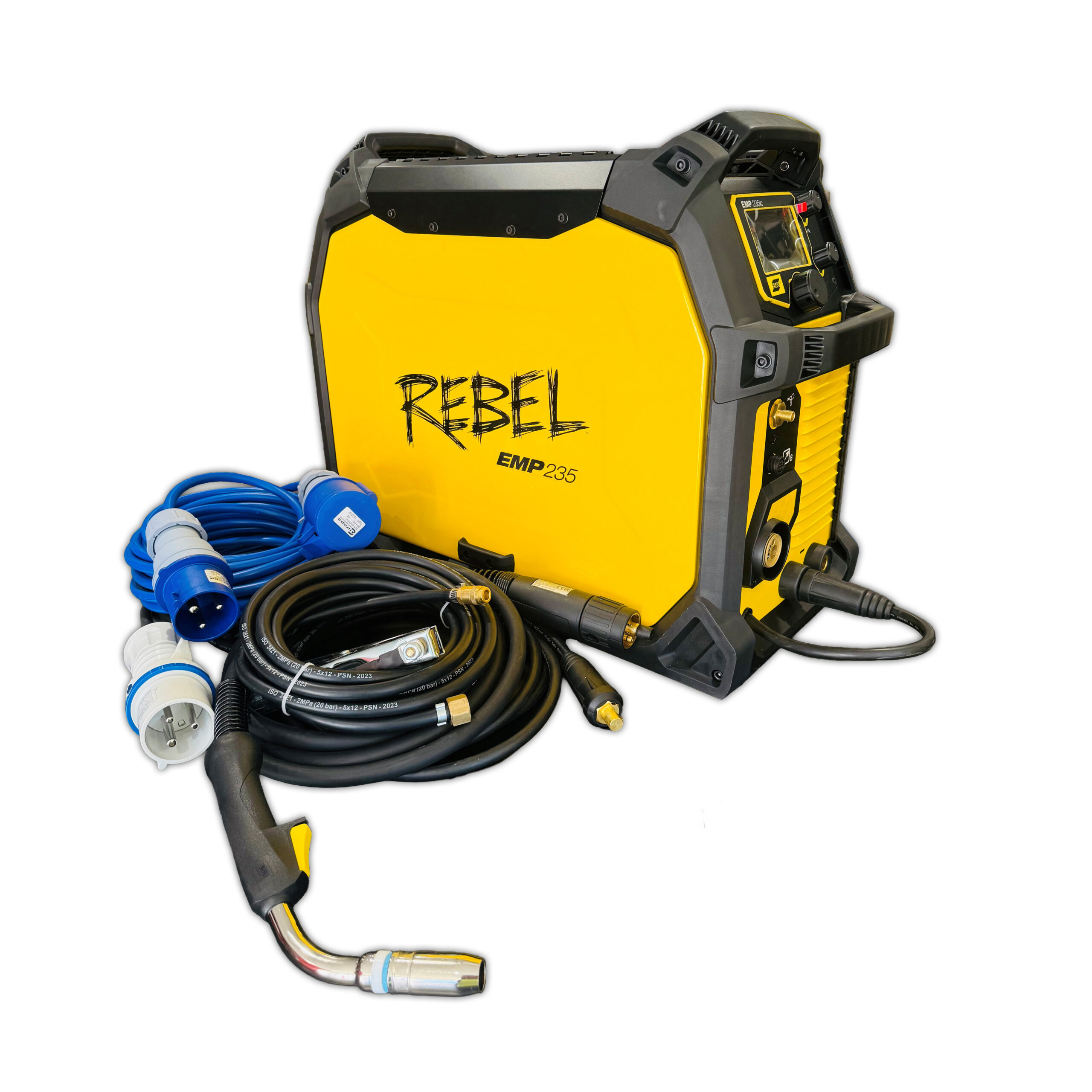

ESAB Rebel EMP 235ic air cooled MIG welder 240V

Name: ESAB Rebel EMP 235ic air cooled MIG welder 240V - Welding Equipment
SKU: 0700300989
Price: 2400.00 GBP
Availability: InStock

£2,400.00 exc VAT

We hold actual stock of this machine, here at Spectrum Chesterfield. Available same day collection / and or delivery (next day if sent via pallet).

The Rebel range is ESAB’s heavty-duty top tier option, and they’re as good as welding machines get. The 235 is a powerful and portable 240V single-phase welder available, designed for welding OK Aristorod 12.50 1.0mm 18kg solid wire for medium-length durations (230amps @ 25% duty / 12mm to 12mm maximum). You can weld 1.0mm MIG wire @ 170amps (equivalent of welding 6mm to 6mm) for 6 minutes continuous (4 mins cool down) without the thermal trip coming on.

The beauty of the Rebel 235, is that when on ESAB OK Aristorod 12.50 0.8mm 15kg MIG wire for thinner mild steel (ie. 2mm to 2mm @ 90amps), you still have the guaranteed easy to setup, low amperage stability and control that a lot of 3-phase 415V welders lack. Customers tend to use this welder in fabrication workshops on 0.8mm MIG wire running all day (subject to the job), as they can handle 140amps flat out @ 100% duty.

Product Description

PACKAGE INCLUDES:

Rebel 235 MIG welder part no. 0700300998
2m x 2.5mm² 4-core SY power supply cable fitted
Portable compact (in-built wire feeder)
TBi MB25 x 3m air cooled MIG torch
300amp x 4mtr 25mm² earth lead
2mtr 20bar 6mm ID 3/8th nut argon hose (2 off)
32amp blue 240V plug (works on a 16amp household up to 200amps)

SETUP FOR EITHER OF THE BELOW:

4x, 0.6mm – 0.8mm V-Groove solid wire MIG wire drive rollers
4x, 0.8mm – 1.0mm V-Groove solid wire MIG wire drive rollers
4x, 1.0mm – 1.2mm U-Groove aluminium wire MIG wire drive roller (part no. 0367556004)

SPECIFICATIONS:

240V duty rating @ 25% – 230 amps (12mm to 12mm max)
Pulls single-phase 31amps @ 230amps with 1.0mm wire
14 kVA generator needed with 32amp blue socket (single-phase)

Rebel’s are machines designed to survive their environment and last. They’re built with far superior components, they don’t let us down. We highly recommend this model for workshops that don’t have 415V 3-phase, or for customers just wanting high-end, affordable, reliable equipment.

Download spec sheet

Part no. 0700300989
