ESAB Warrior 500 water cooled
500amp ESAB Warrior 500 water cooled MIG welder for hire - Image 2
500amp ESAB Warrior 500 water cooled MIG welder for hire - Image 3

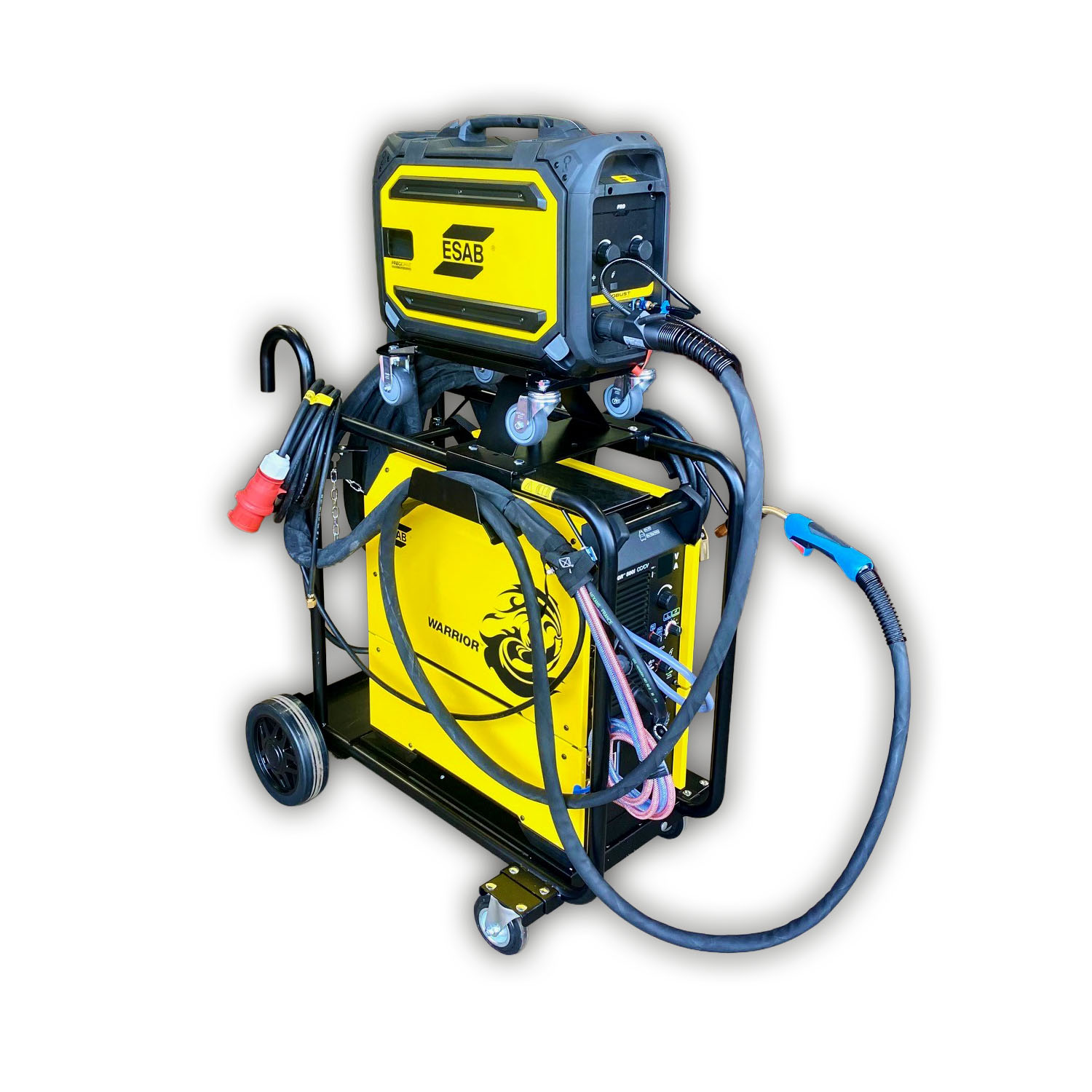

500amp ESAB Warrior 500 water cooled MIG welder for hire

TO HIRE WARRIOR 500 @ £150 p/week

Email us to set an account up and hire straight away.

Product Description

PACKAGE INCLUDES:

  • Warrior 500 MIG welder part no. 0446400884
  • 3m x 6mm² 4-core SY power supply cable fitted
  • RobustFeed Pro part no. 0446401881
  • On wheels with bottle trolley
  • MB501 x 3 or 4m water cooled MIG torch
  • 600amp x 5mtr 70mm² earth lead c/w 600amp clamp
  • 10mtr interlink (machine to feeder reach)
  • 3mtr 20bar 6mm ID 3/8th nut argon hose
  • 415V 32amp 4 or 5-pin red plug
  • Assembled
  • Weld tested

SETUP FOR EITHER OF THE BELOW:

SPECIFICATIONS:

  • Duty rating @ 100% – 400 amps
  • Duty rating @ 60% – 500 amps
  • Pulls 3-phase 32amps @ 500amps
  • MCB D-rated trip needed
Want more information? Call us...
01246 205 267 info@spectrumweldingsupplies.co.uk

Additional information

500amp welder power source duty rating:  400amps @ 100% (10 mins continuous with no cool down needed / 500amps @ 60% = 6 minutes full power & 4 minutes cool down).

630amp wire feeder duty rating: 400amps @ 100% (10 mins continuous with no cool down needed).

70mm² x 10mtr interlink duty rating:  400amps @ 60% (6 mins continuous / 4 mins cool down needed).

600amp earth lead duty rating:  400amps @ 60% (6 mins continuous / mins cool down).

500amp water cooled torch duty rating:  450amps @ 100% (10 mins continuous with no cool needed).

Inc.1 off,  Calibration validation certificate upon request (+/- 2.5% INDICATED / ACTUAL degree of accuracy in accordance with BS EN IEC 60974-14:2018).

Supply Voltage

415V
Welding Equipment Type

MIG Water Cooled

Downloads

Warrior 500 with RobustFeed Pro water cooled MIG spec sheet
