2.5 tonne pipe rotators 110V (British)

2.5 TONNE ROTATOR SPECS:

• Manufacturer: Spectrum
• Model: SWS-2.5CR-UK
• Set: 1x drive & 1x idler
• Set capacity: 2.5 tonnes
• Drive capacity: 1,250KG
• Idler capacity: 1,250KG
• Diameter capacity: 50mm MIN to 2000mm MAX
• Roller speed: 80mm to 1600mm/min
• Controller: Variable speed / forward / stop / reverse
• Supply: 110V

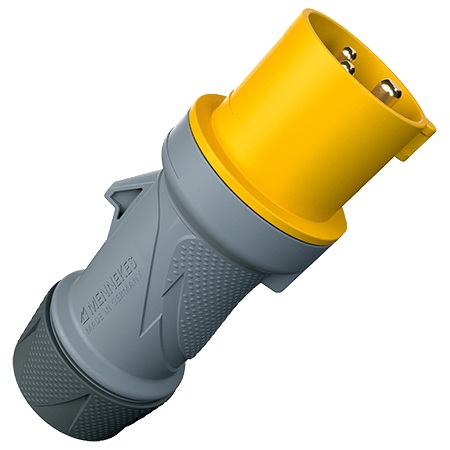

• Amps:  5 (16amp yellow plug fitted)
• kVA required: 0.7 kVA continuous
• Pendant controller: 10 metre
• Foot pedal control: 10 metre (SY braided 2.5mm²)
• Steel wheels available (for pre-heated pipe)

UK MANUFACTURED HERE AT SPECTRUM WELDING

• Fully in-house designed
• Inverter control panel wired and made at Spectrum
• Fabricated, machined, painted, built
• BS EN 1090-3 / LRQA ISO 9001
• GA and CAD drawings + numbered wiring diagram
• Gearbox ratio / motor kW / torque & travel speed configured
• Steel & component kN load calculation test document
• Load tested
• CE Marked
