Product Description

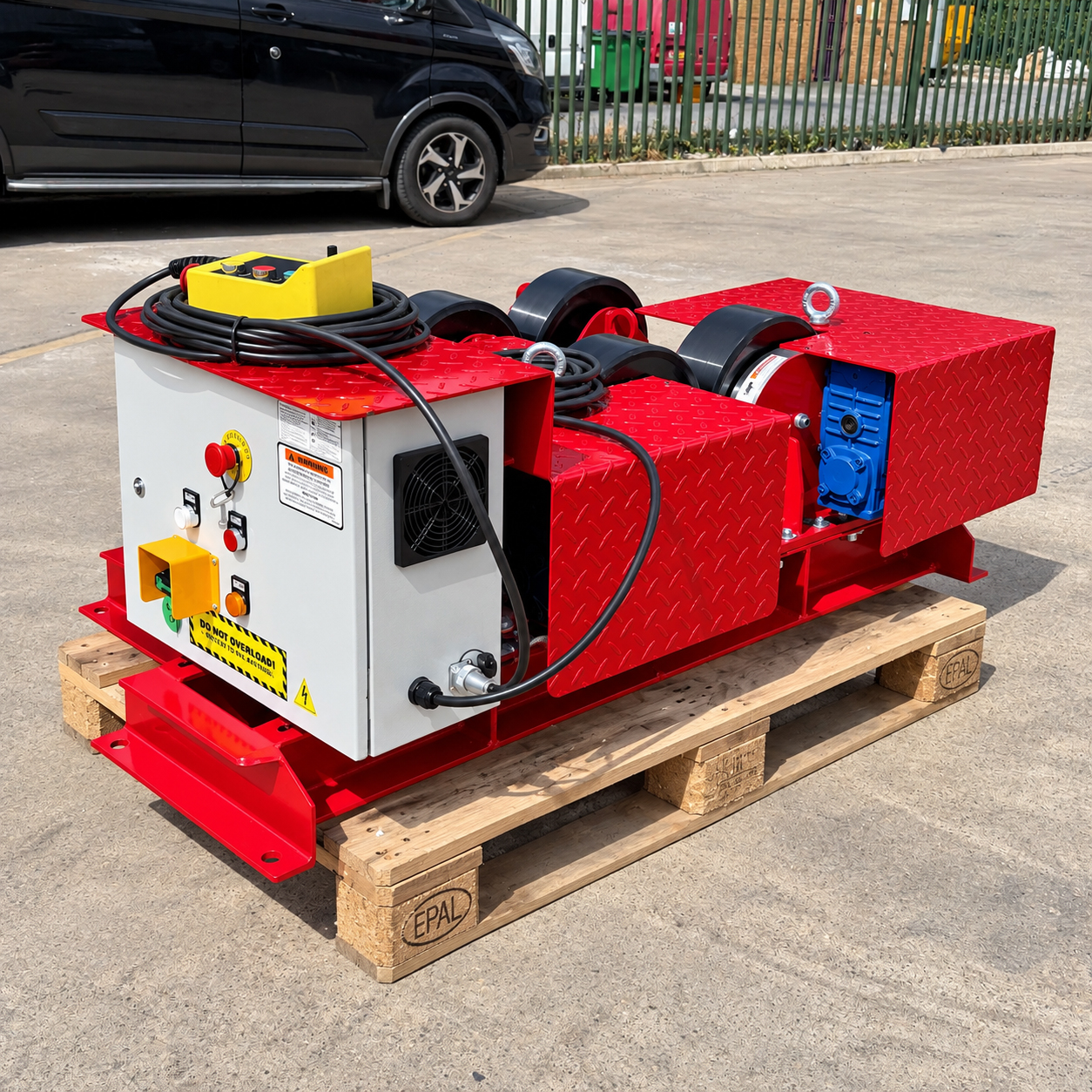

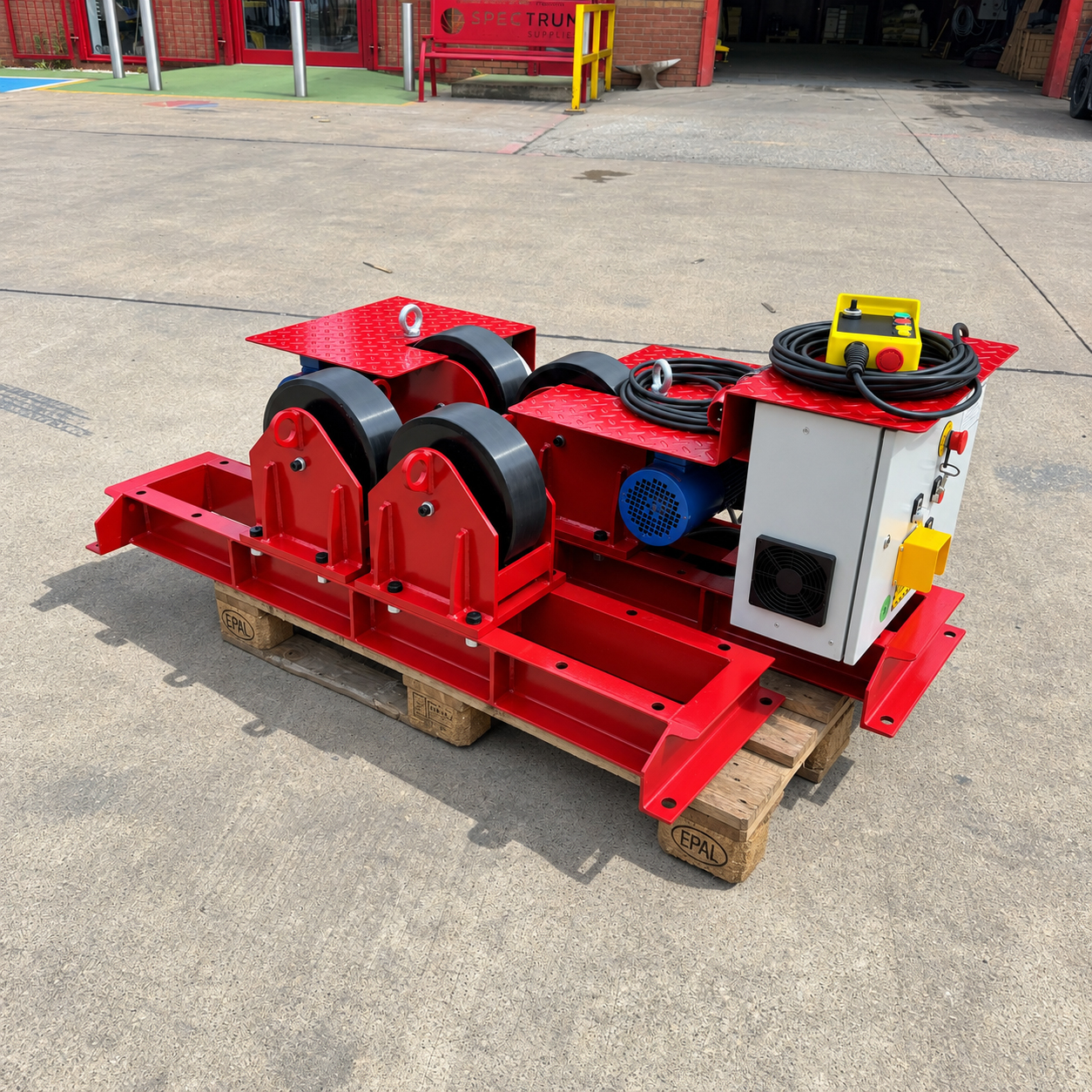

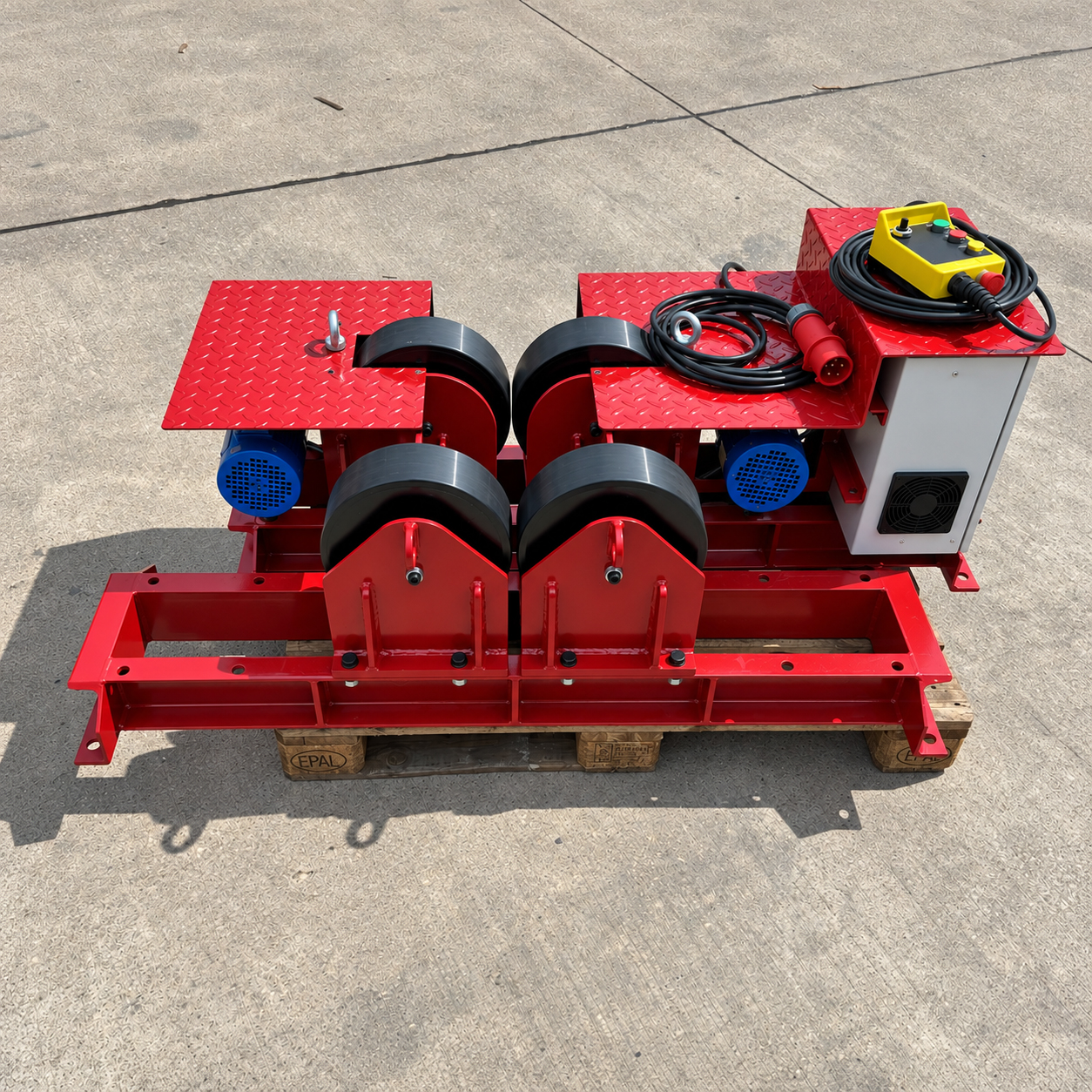

SPECTRUM IMPORT 5 TONNE ROTATOR SET SPECS:
- Model: SWS-CR5T
- Set: 1x drive & 1x idler
- Set capacity: 5 tonnes
- Drive turn capacity: 5,000kg
- Capacity per drive (loading): 2500kg
- Capacity per idler (loading): 2500kg
- Control: Variable speed
- Controller: Push button forward/reverse/stop/speed/e-stop
- Supply: 415V
- Amps: 12amps (32amp plug fitted)
- Pendant control: 10 metre cable
- Pedal control: 10 metre cable
- Minimum vessel size: 150mm
- Maximum vessel size: 2500mm
- Tyre size: 300mm x 100mm
- Tyre material: Polyurethane
- Electrical panel: Mounted on drive unit
- Roller speed: 190mm to 1900mm/min at 5 to 50hz
- Control voltage: 24V AC
- Drive control: 1.1 kw ac inverter
- Drive motors: 2x 0.55kw force cooled
- Surface preparation: Grit blast to SA 2.5
- Paint: Spray paint
- Colour: RAL 3003 red
NOTE. Longer pendant and foot pedal control cables available upon request.
