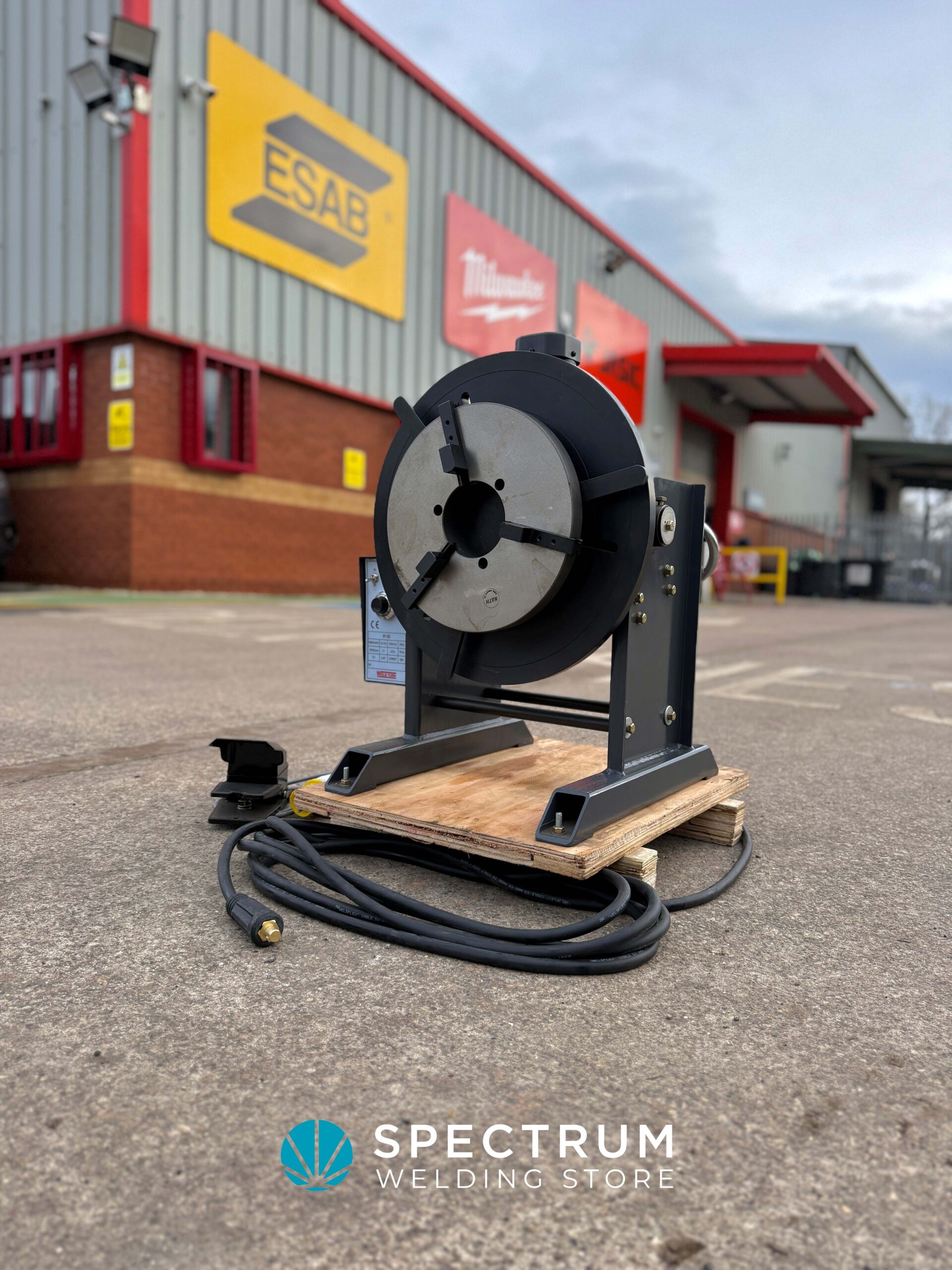

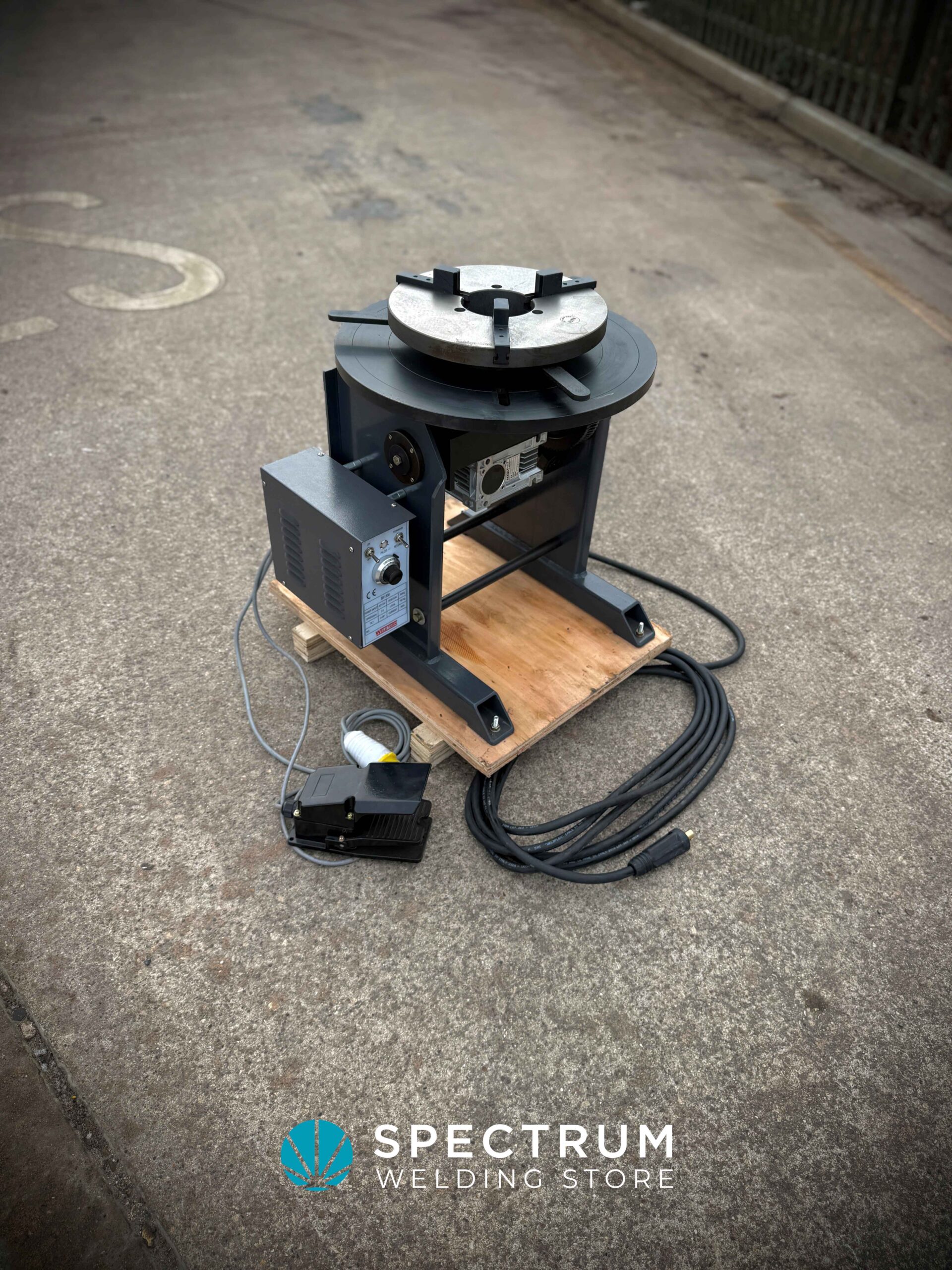

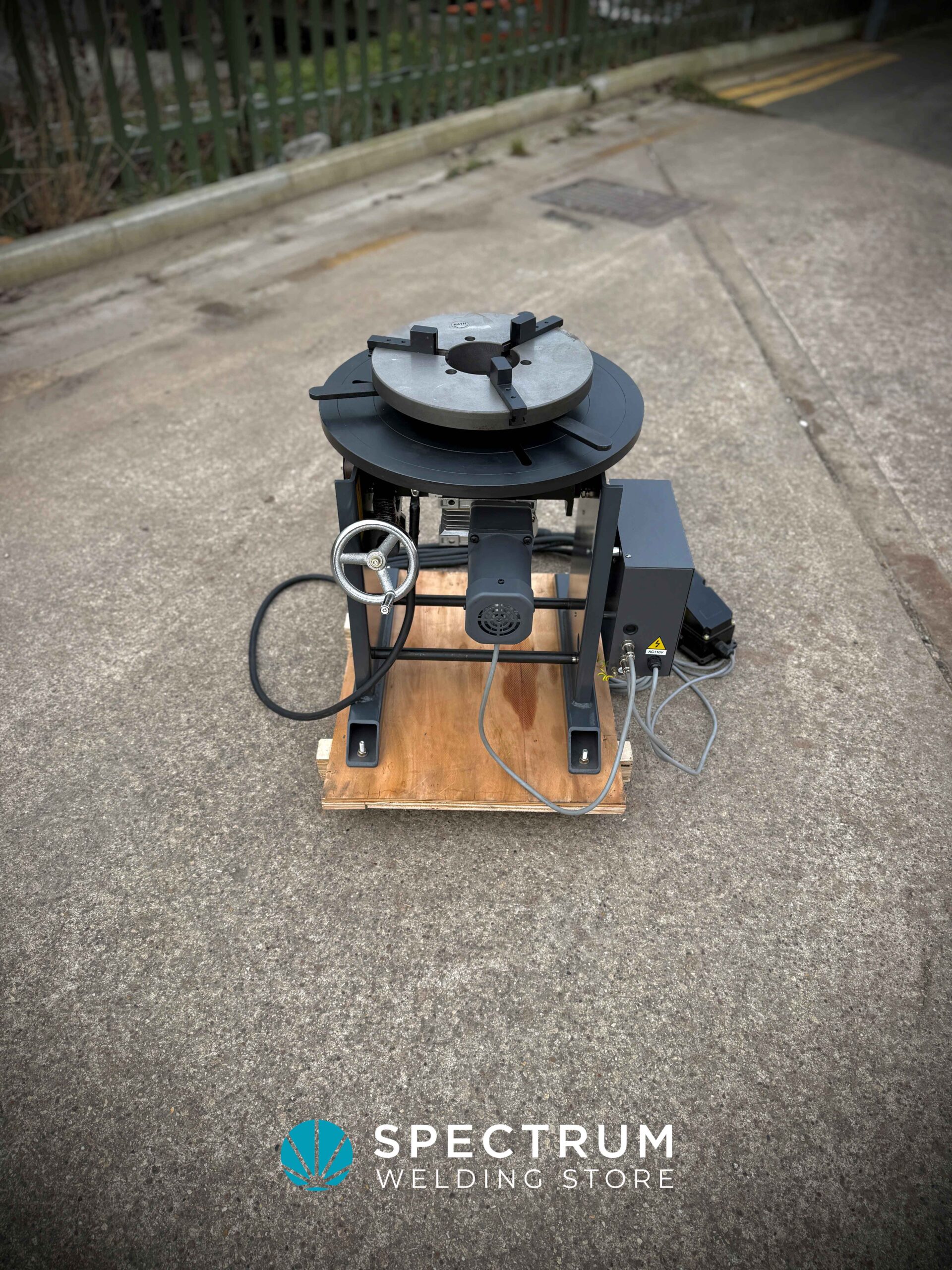

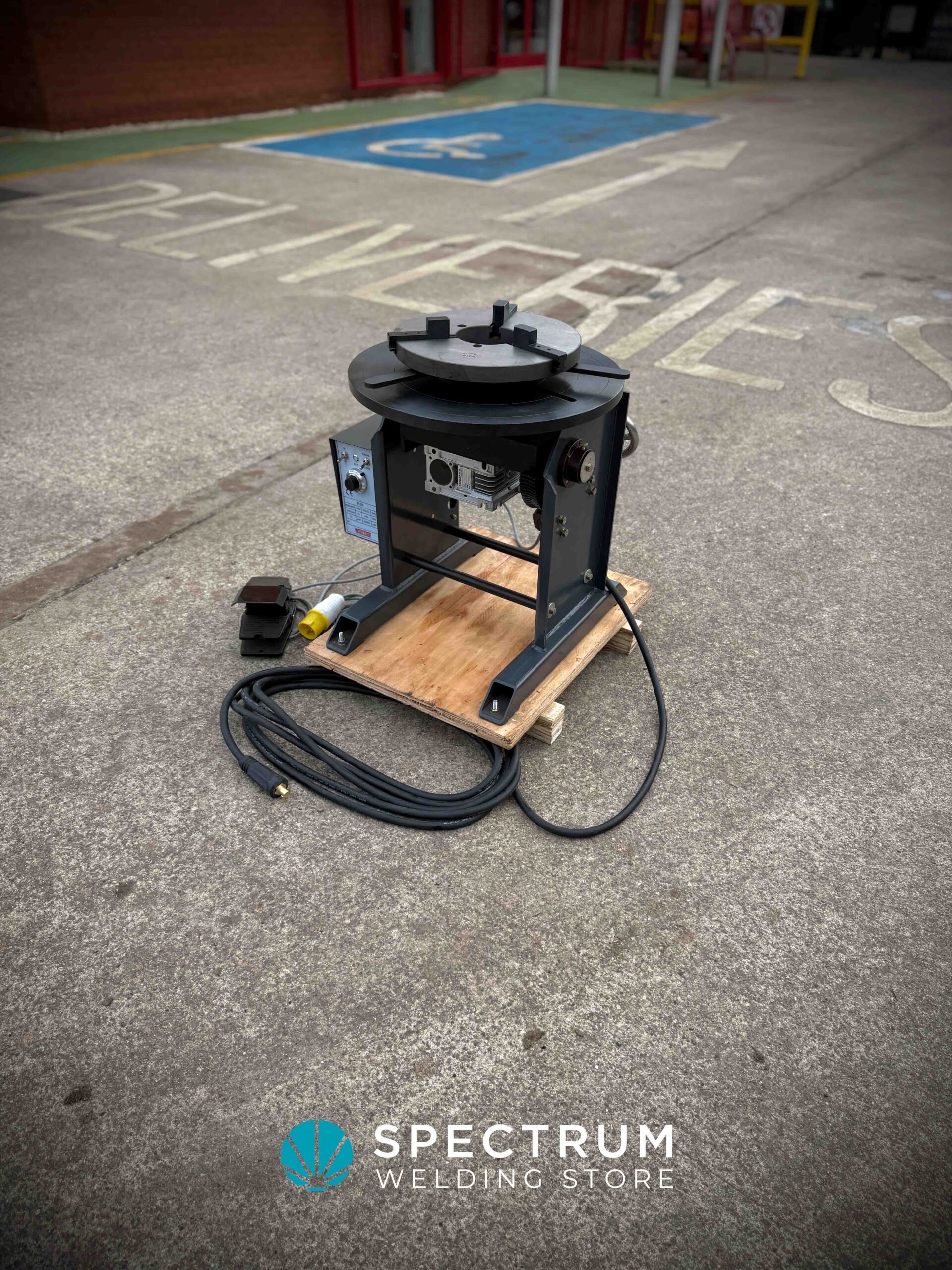

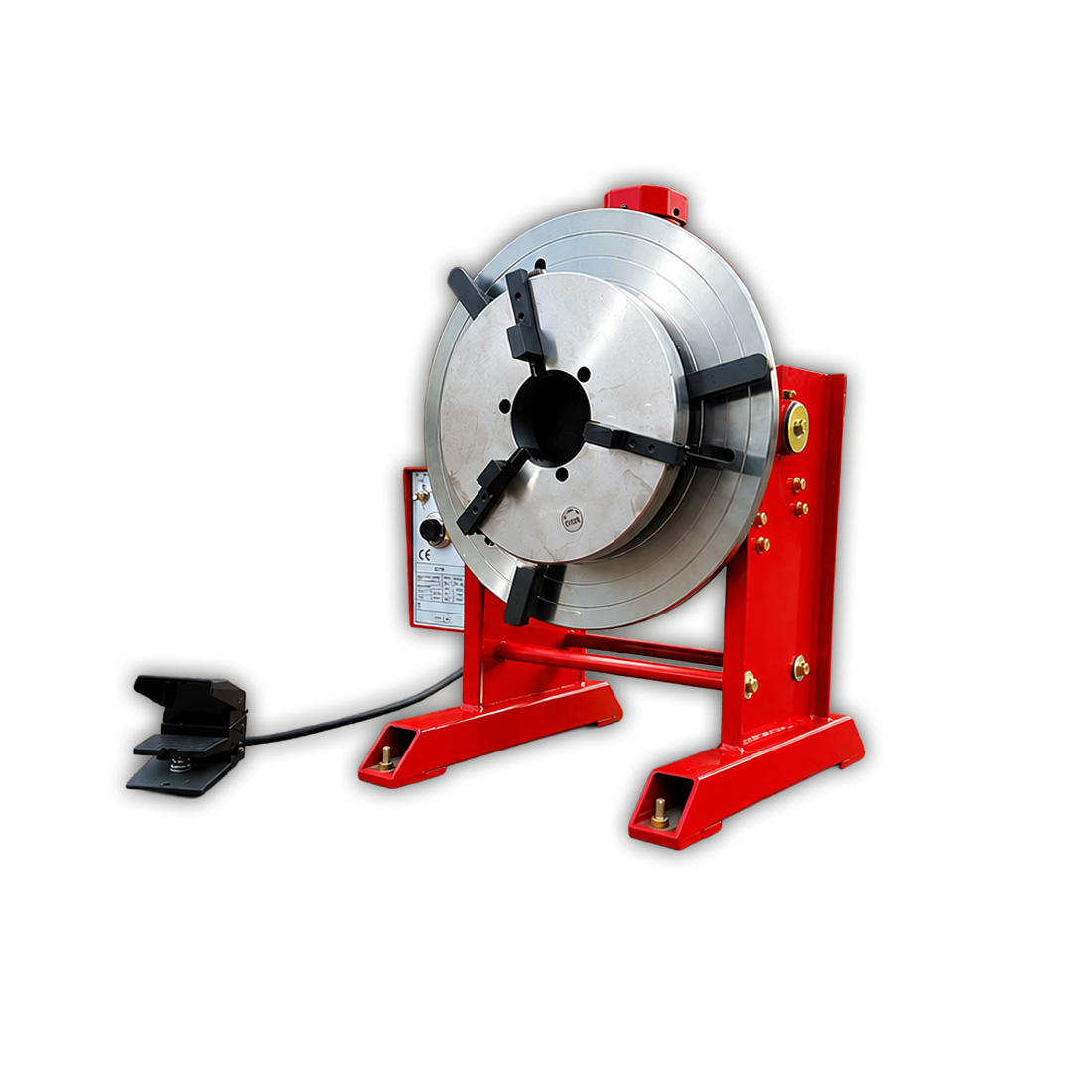

300kg welding positioner (Imported)

£3,000.00 exc VAT

300kg capacity welding positioner (exc. chuck) in stock inc. 3mtr foot pedal control, and 5mtr earth lead with welder plug (bolted to the positioner).

Available with:

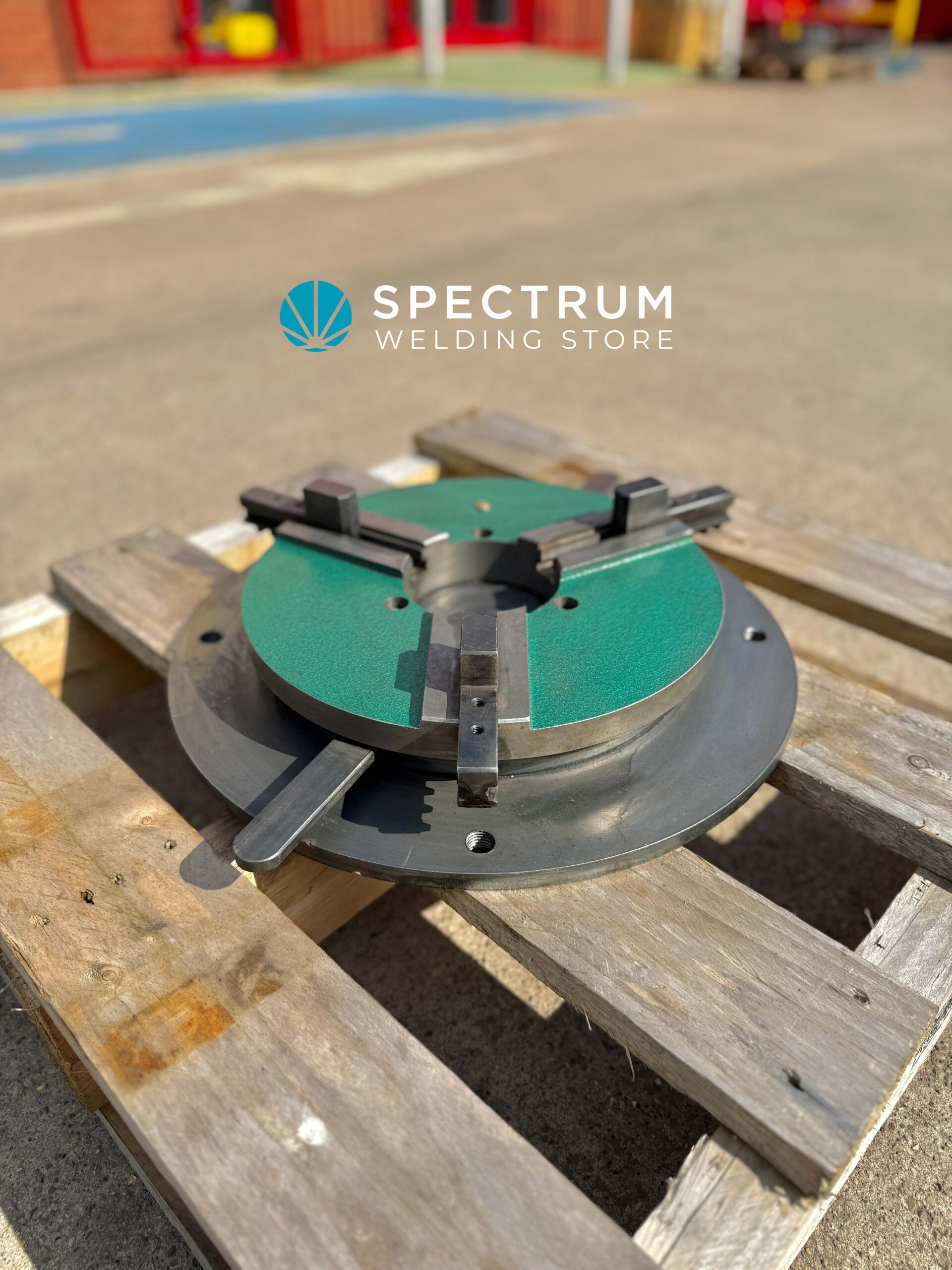

1 off, 250mm 150kg capacity light-duty 3-jaw quick release chuck & mounted backing plate @ £1,000

This is a nice and dinky light-duty mini welding positioner, designed for waist-height bench-top applications. We fit a 150kg capacity 250mm 3-jaw chuck, and manufacture the mounting backing plate in our shop, to allow proper fixing and for the quick-release bar to spin freely.

We also fit a 5mtr earth connection lead, which is for plugging into your welding machine ‘+’ or ‘-‘. The welding earth current transfer through the table and chuck. This means no rotary earth is needed. Should you want to use a rotary giro earth based on your setup, we also stock and sell many types.

Email us to set an account up and hire straight away.

Product Description

SPECIFICATIONS:

Maximum capacity: 300kg (refer to load chart)
Frame type: Fixed height
Tilt range: 0-90°
Table rotation speed: 0.1 – 2.5 RPM
Input Voltage: 110V or 240V single-phase
Amperage load: 10amps
Controller: Mounted panel (forward/reverse/stop/variable speed)
Foot pedal control: 3m (can be made longer)
Max welding current: 400A @ 60%
MUST BE BOLTED DOWN

PACKAGE INCLUDES:

300kg welding positioner @ £3,000 net
250mm light-duty 150kg capacity 3-jaw chuck & backing plate @ £1,000
50mm² x 5mtr 400amp earth lead with welding plug connection
3mtr foot pedal control

NOTE. Longer foot pedal control avai;able upon request

DIMENSIONS:

Length: 600mm
Width: 550mm
Height: 600mm
Table diameter: 450mm
Machine weight: 60kg
Chuck & backing plate weight: 15kg

Please email us for exact dimensions , as some models can vary in size / weight.

NOTE. The 300kg model is definitely not for 300kg loads, so please see the load chart in the images and downloads tab sections. The load capacity is only to demonstrate its maximum limitations.
