30 tonne welding positioner for hire
30 tonne welding positioner for hire - Image 2

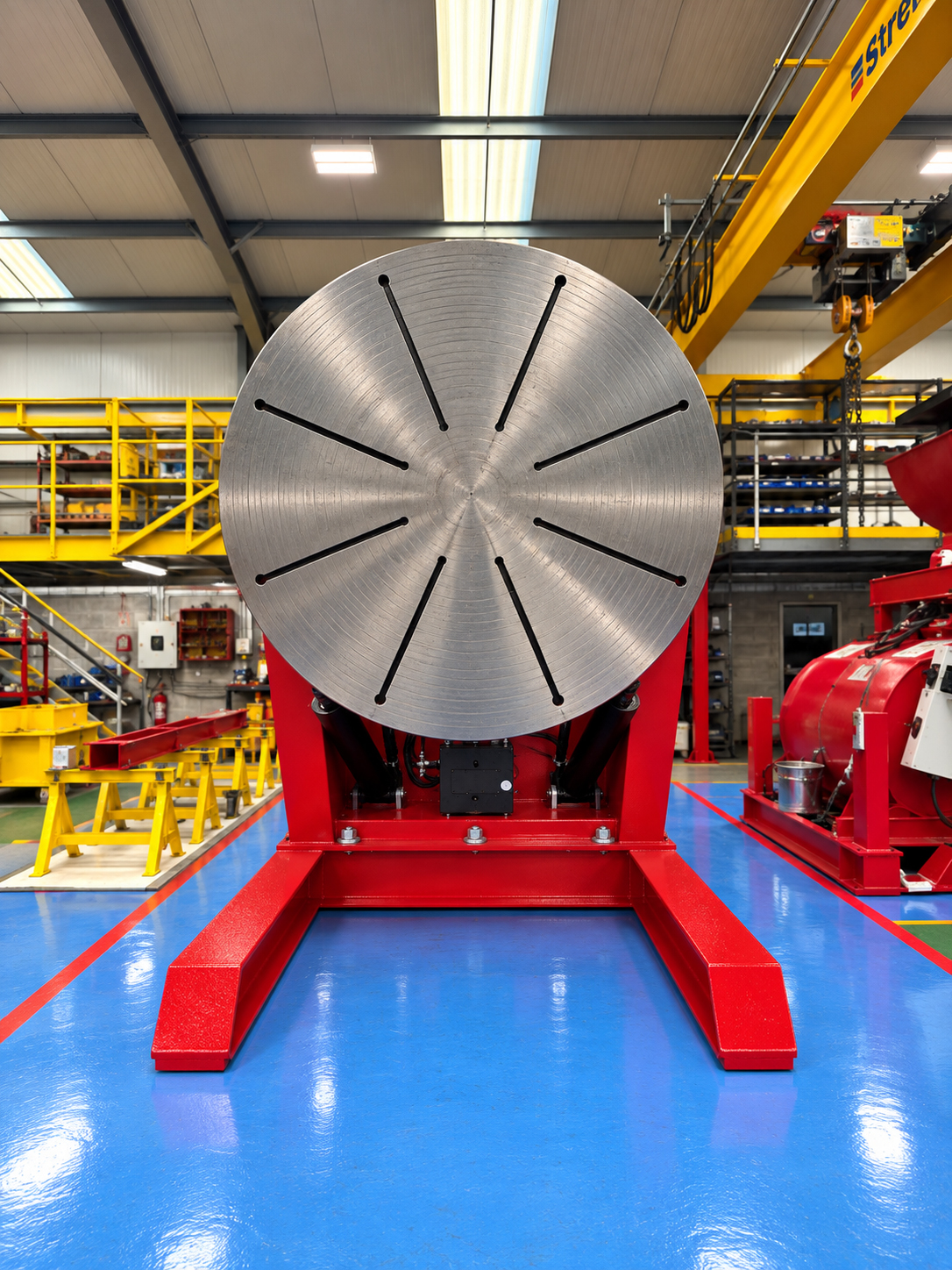

30 tonne welding positioner for hire - Image 3

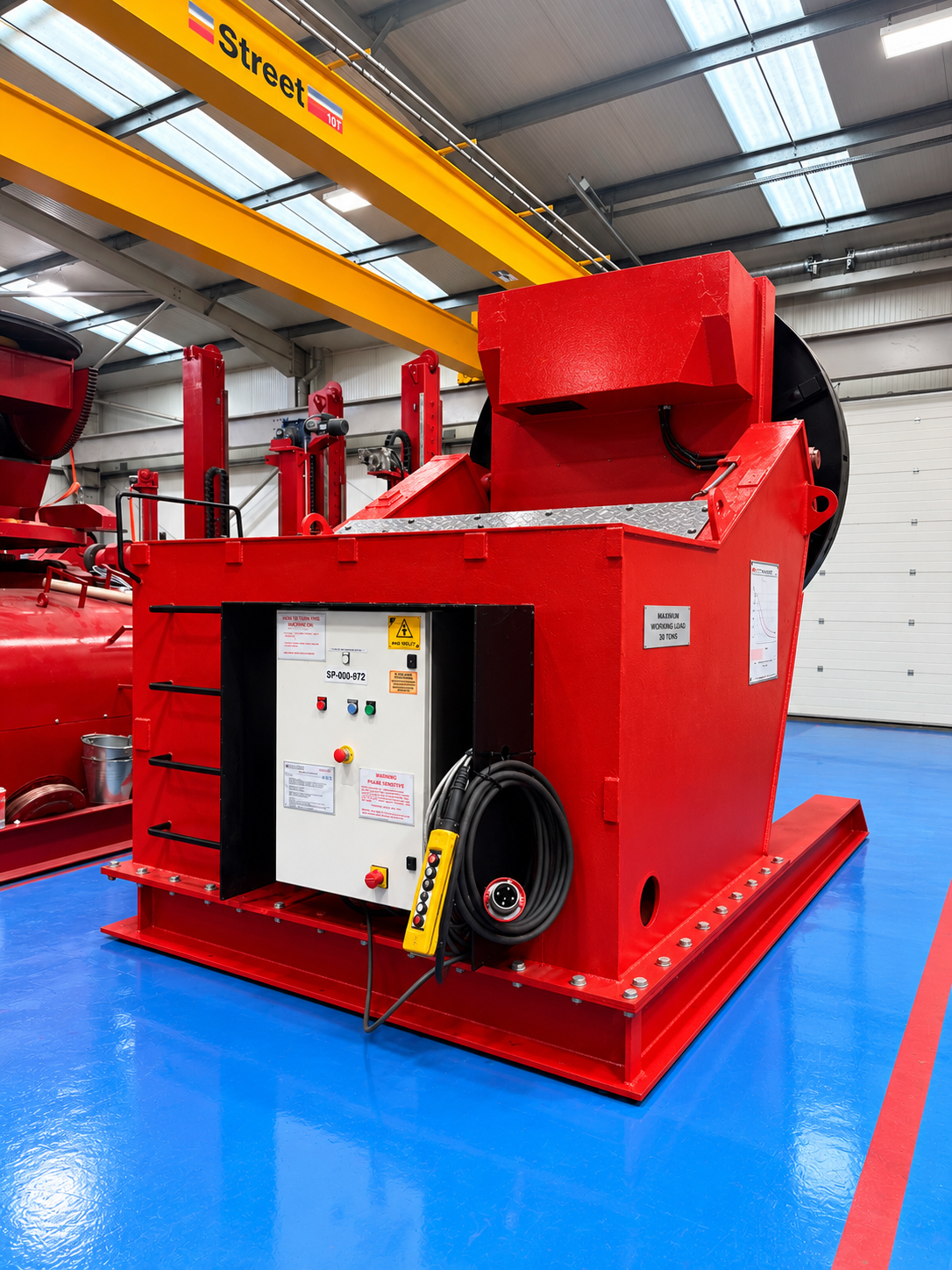

30 tonne welding positioner for hire - Image 4

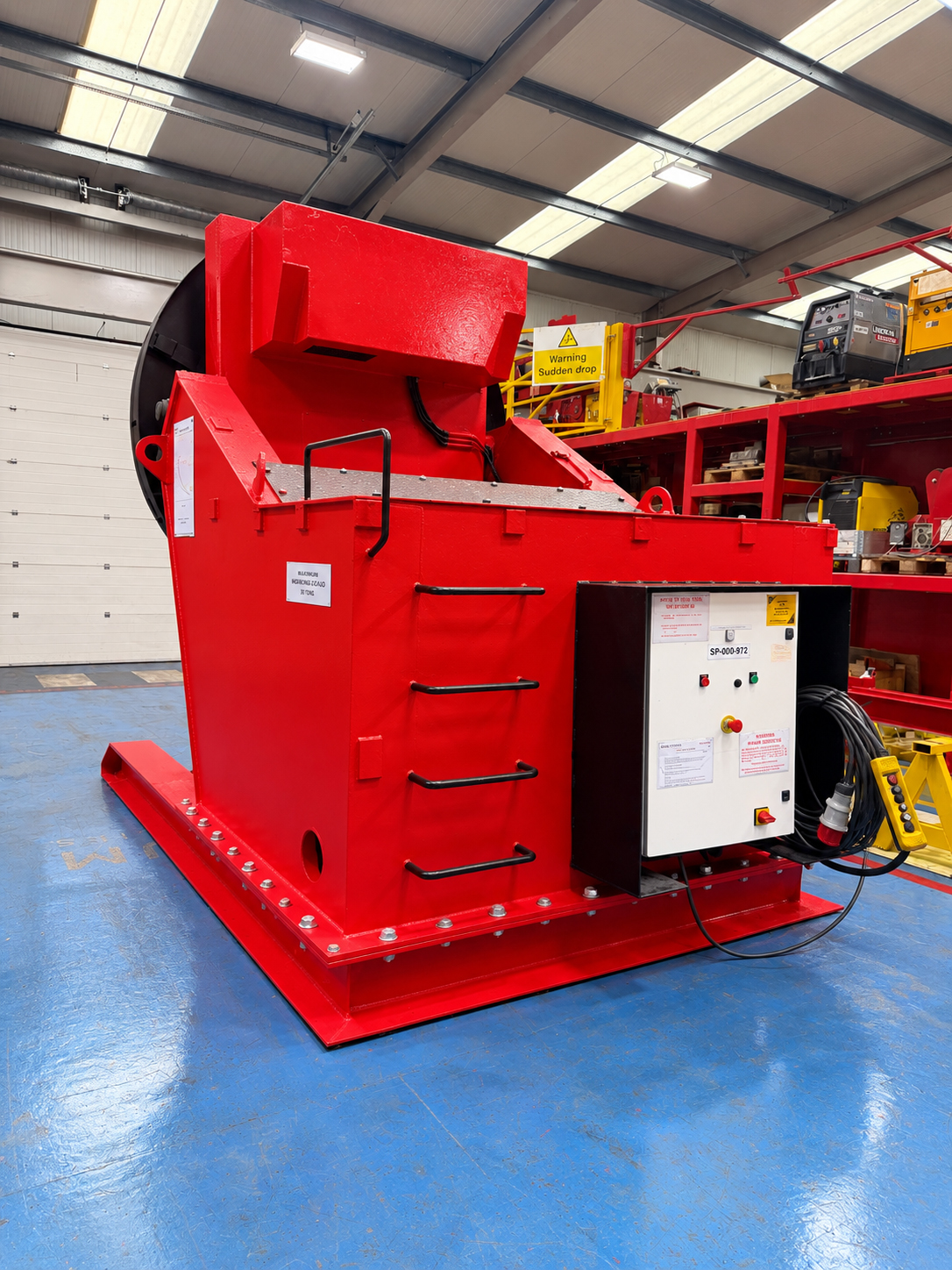

30 tonne welding positioner for hire - Image 5

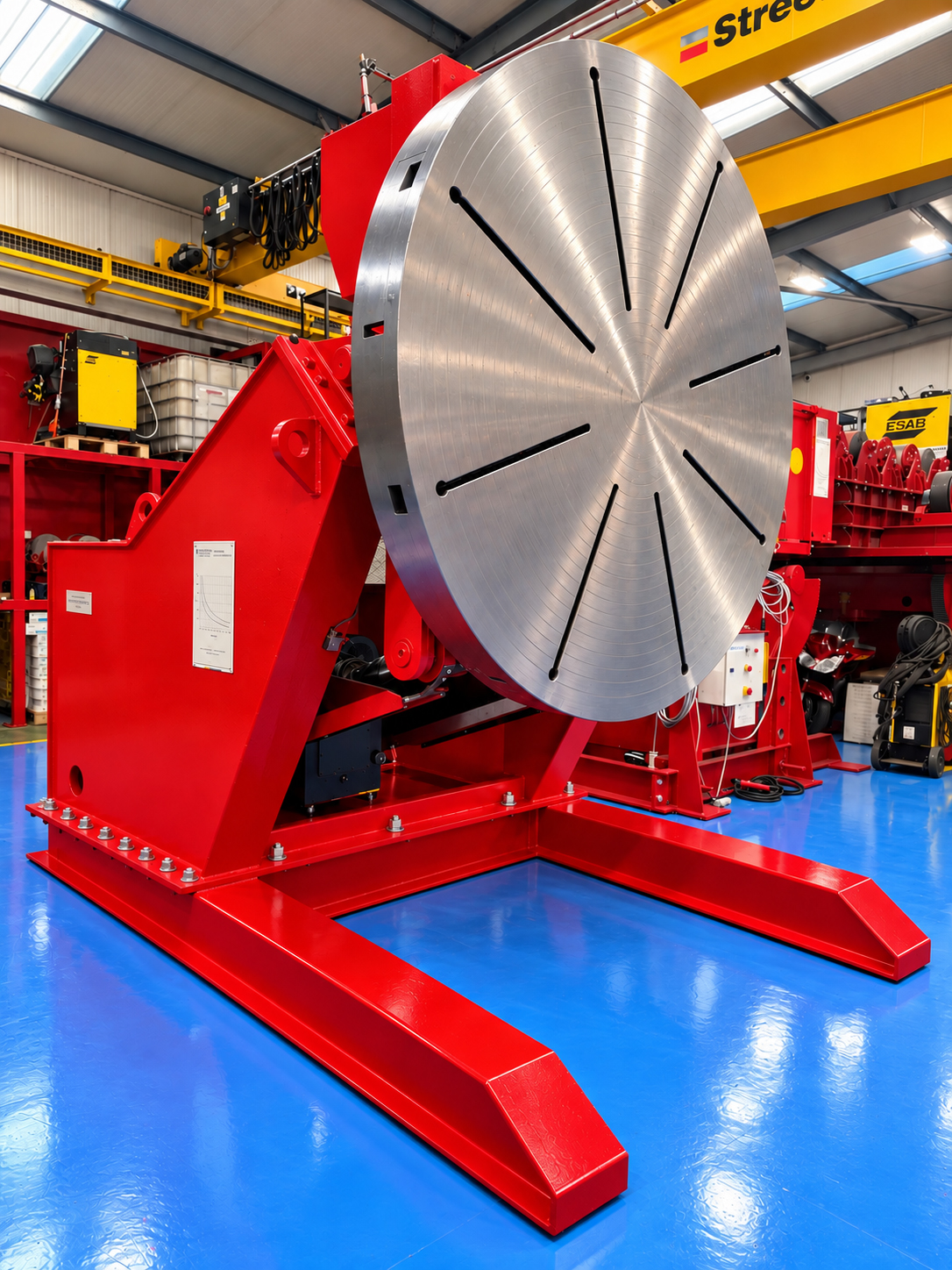

30 tonne welding positioner for hire - Image 6

30 tonne welding positioner for hire

HIRE 30 TONNE @ £1,400 p/week

Real rental machines here at Spectrum Welding, Chesterfield. Typically applications include cladding dished ends and extra large fabrications, needing the highest quality welds to be done in the 1G flat fillet, 1G groove, 1GR pipe,  2F horizontal + inspection.

Come in to see us any time, and we can show you how they work.

2 off heavy-duty models in stock ready to go from our depot (S40 2WB).

  • Serviced
  • Tested
  • Load tested
  • Hydraulic rams tested and certified
  • Mechanically and electrically certified
  • Full document package available

Email us to set an account up and hire straight away.

Hire this machine

    Call 01246 205 267 or contact us below

    Product Description

    SPECIFICATIONS:

    • Maximum capacity: 30,000kg (refer to load chart)
    • Frame type: Fixed height
    • Max diameter ‘cylindrical’ capacity @ 90°:  4360mm
    • Tilt range: 0-135°
    • Table rotation speed: 0.01 – 0.6 RPM
    • Input Voltage: 415V 3-phase
    • Amperage load: 48amps (63amp 4-pin or 5-pin plug)
    • Safety devices: Up/Down limit switches (Phase sensitive)
    • Pendant control: 10m
    • Pendant controller: Forward/reverse/stop/e-stop/variable speed
    • Max welding current: 400A @ 60%

    DIMENSIONS:

    • Length: 4100mm
    • Width: 2380mm
    • Height: 2510mm
    • Table diameter: 2400mm
    • Floor to centre of table: 2180mm
    • Weight: 10,000kg
    Want more information? Call us...
    01246 205 267 info@spectrumweldingsupplies.co.uk
    Positioner Height

    Fixed height
    Positioner Capacity

    30 tonne
