SPECS:

• 300amps @ 100% duty
• 6.0mm electrodes MAXIMUM
• Just about capable of 6.0mm gouging carbons MAX (350amps needed)
• Gouging NOT ADVISED with this model (500amp model needed)
• Do not use past 300amps @ 100% to avoid burnout

NOTE. Duty cycle is a thermal performance rating, not a reliability guarantee

400AMP MIG PACKAGE @ £250 P/WEEK INCLUDES

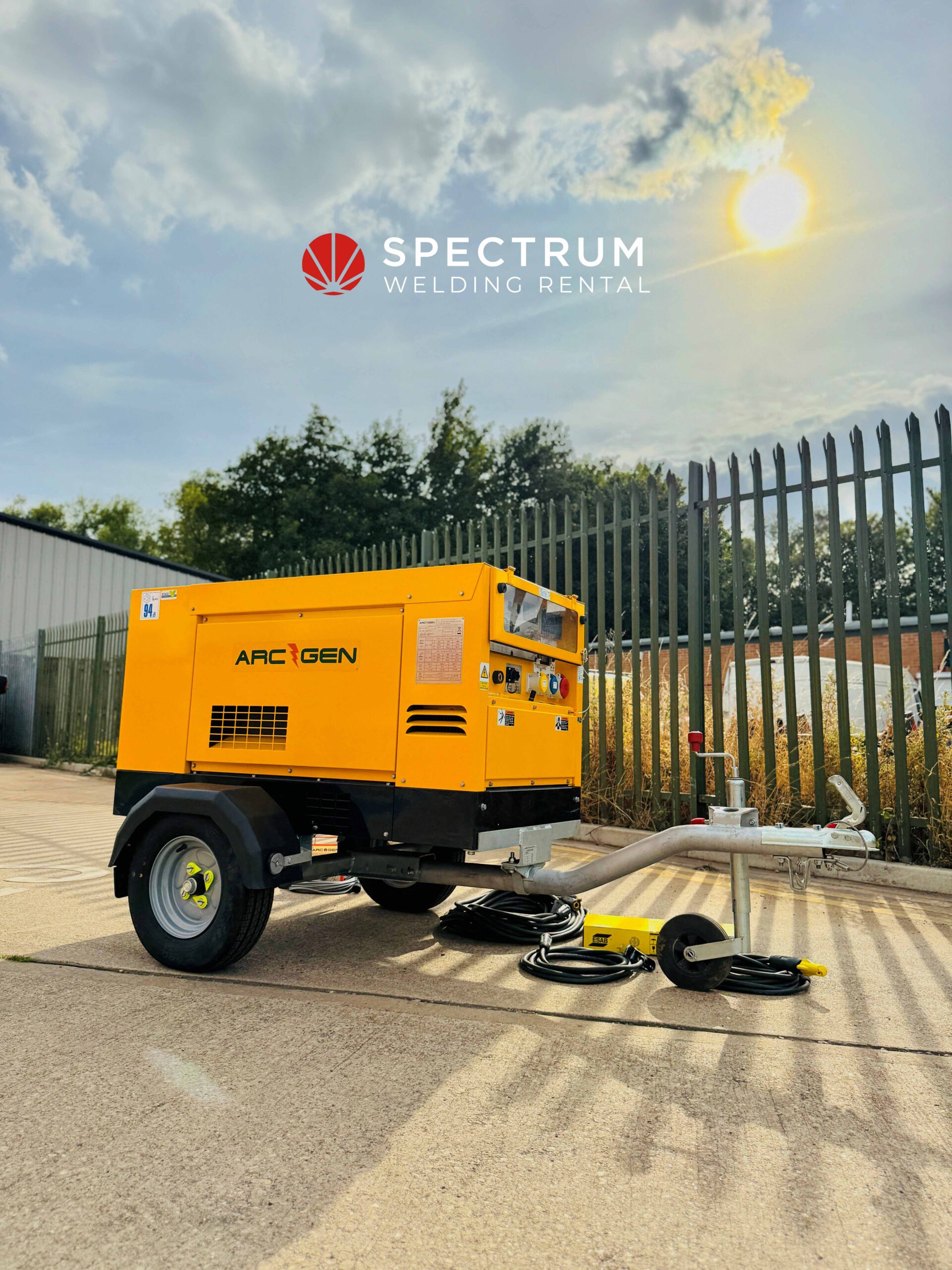

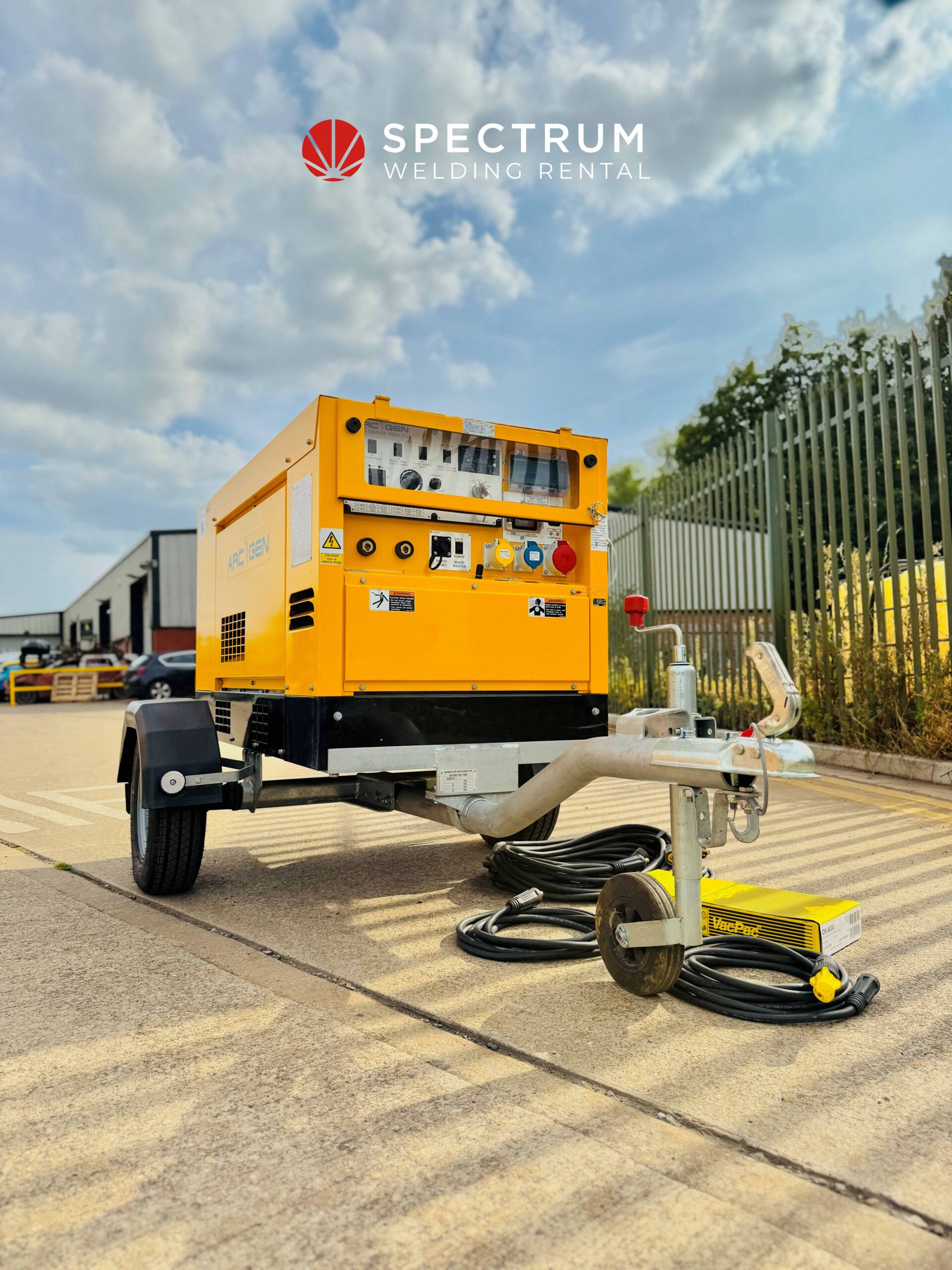

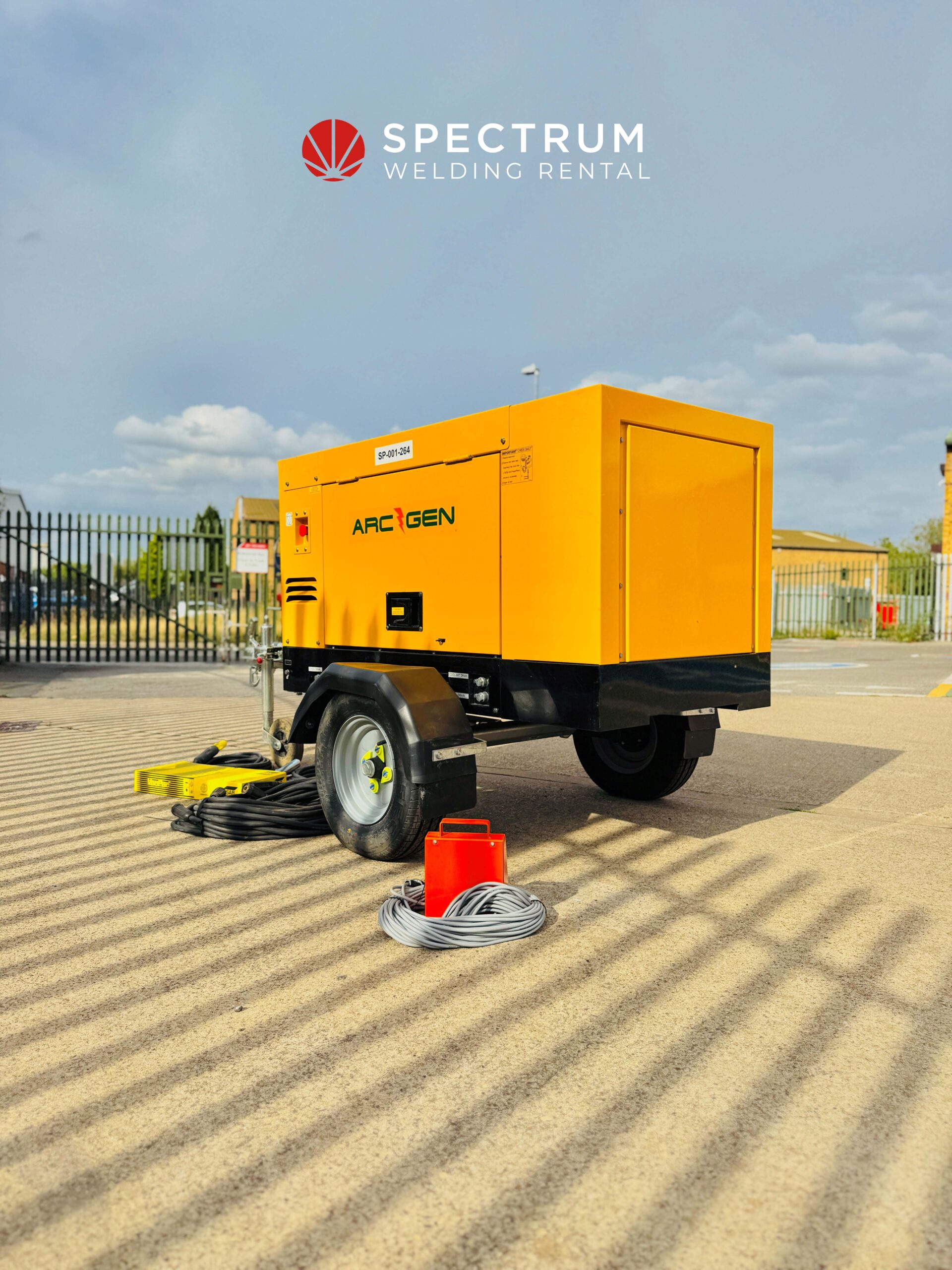

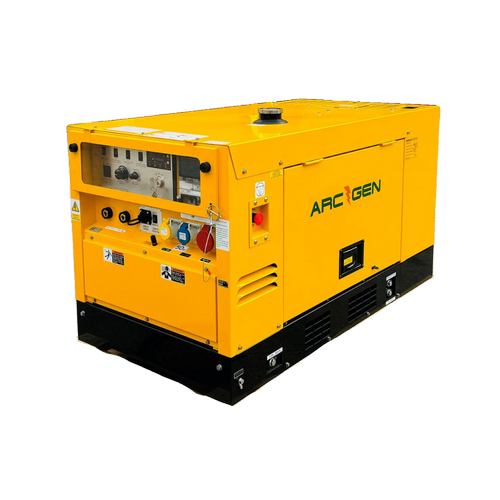

• 400mp diesel welder generator

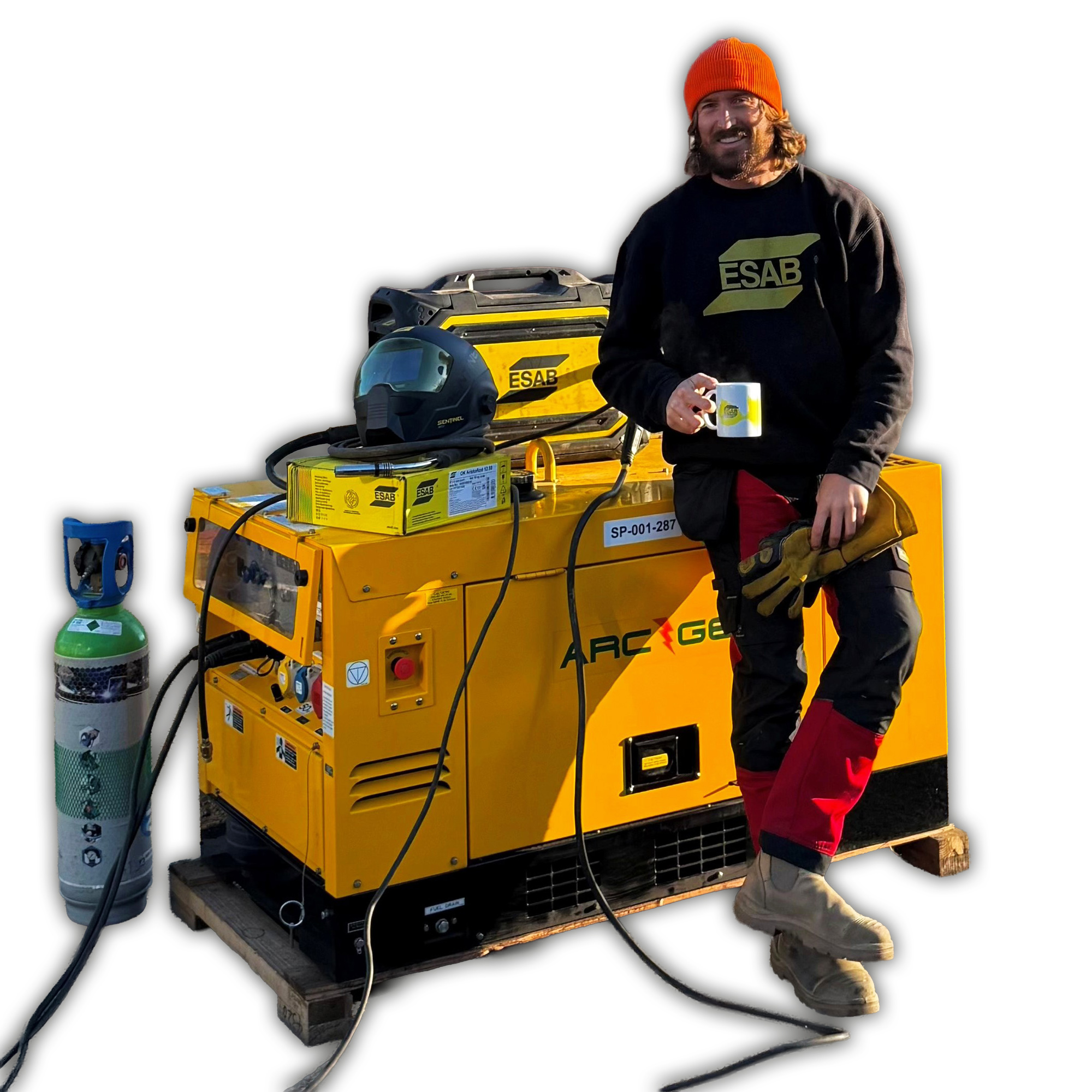

• ESAB Robustfeed AVS site feeder with welder socket & coupler
• inc. 3/8th hose fitting + 7mtr reference lead clamp
• Setup 0.8mm/1.0mm/1.2mm solid/1.2mm flux-cored
• MB36 x 3m or 4m air cooled MIG torch (300amps @ 40% duty)
• 600amp x 5mtr x 50mm² earth lead
• 15mtr x 50mm² copper cable extension leads (x2)
• inc. 50-70mm² welder plug & sockets
• 20bar x 15mtr x 6mm ID argon hose
• inc. 3/8th fittings & male/male couplers (x2)
• 10 bar argon regulator & 40ltr flow meter + gas flow tester

OPTIONAL HIRE EQUIPMENT

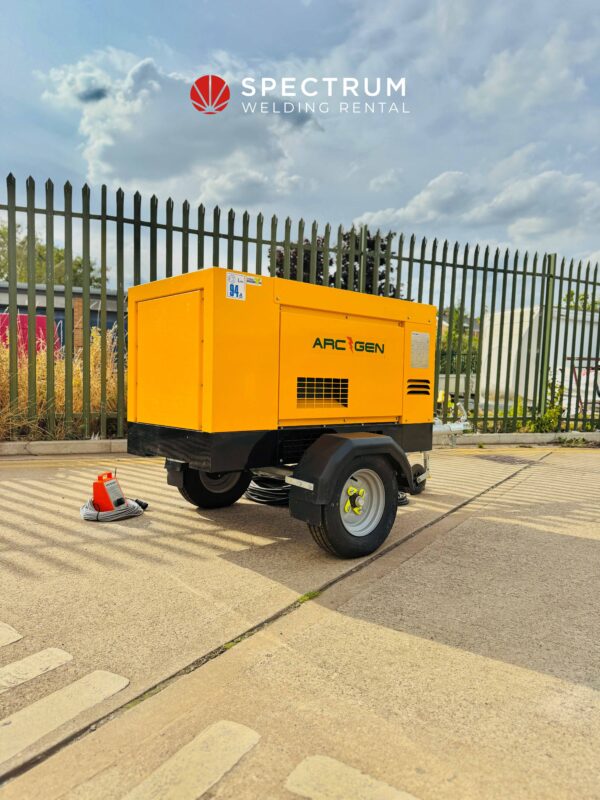

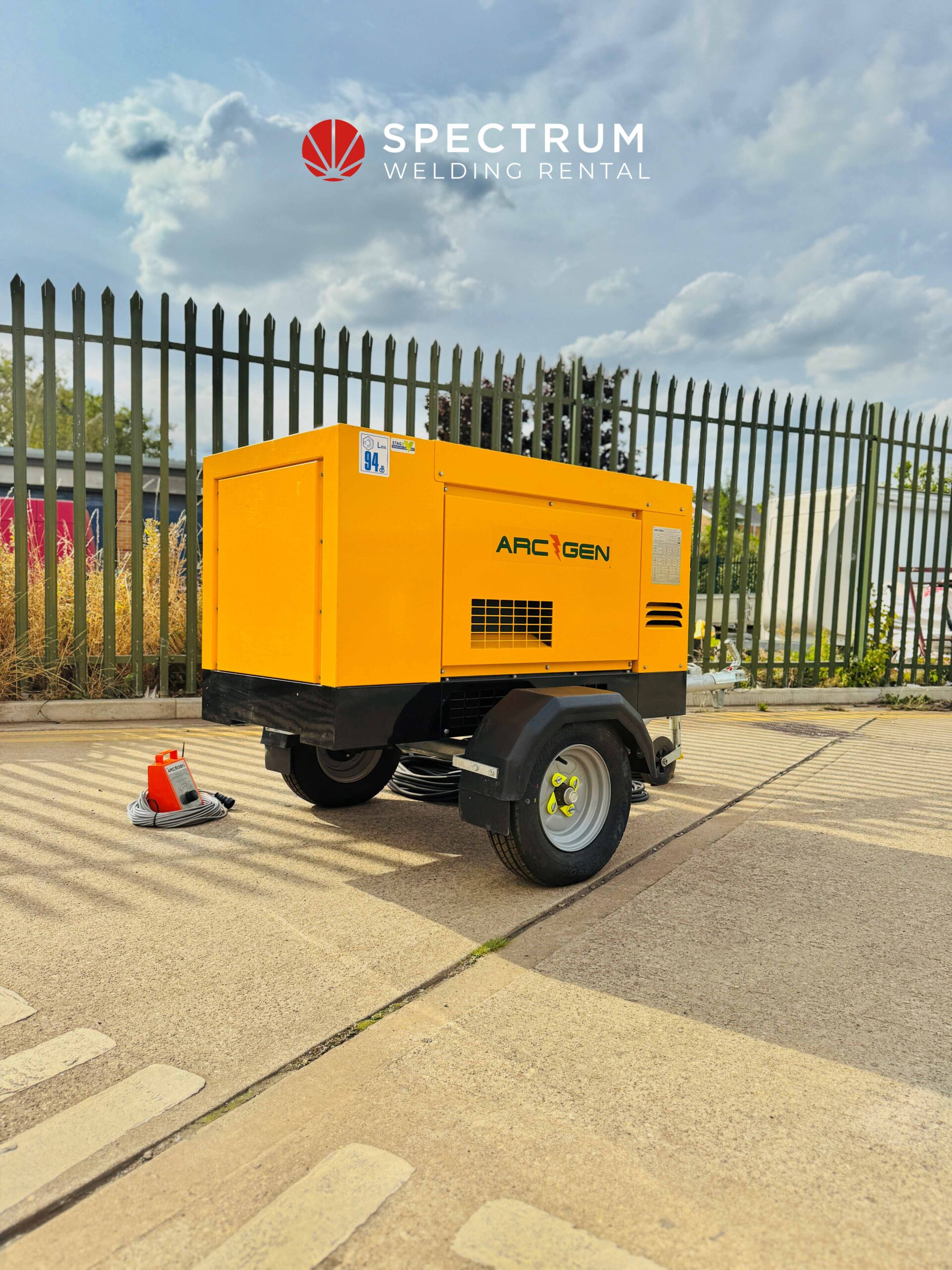

• Site tow trailer available upon request @ £50 p/week
• 25m remote available upon request @ £50 p/week
• + 15m +&- cable set reach available upon request @ £50 p/week
• Drip tray / oil nappy @ £50 p/week
• MMA electrode cable upgrade (for MIG & MMA) @ £50 p/week

The ultimate site MIG welder, and all 400amp diesel welder generators will ALWAYS be used with 1.2mm flux-cored gas-shielded all-positional MIG wire. The beauty of this flux-cored wire is that is makes life easy on site (where conditions and are more difficult), and for the below reasons:

• It can weld in any position such as vertical with extreme ease (which is always needed on site)
• Is a far stronger wire than than standard solid (due to a deeper focused penetration) and can withstand much colder temperatures before breaking
• Bridges much wider root runs and plating gaps
• Can be used on thin steel and extremely thick plate
• Very stable and soft arc
• Cleaner welds
• Excellent weld bead shape, minimal spatter, quality welds, and high operator appeal
• NOTE. Always use Argon/Co2 shielding gas with this wire (approx. 15-25 lpm flow rate coming out of the end of the shroud subject to plate thickness, and more ltr p/min if in windy conditions)
