BODE 4m x 4m column and boom welding manipulator – Ex Hire & Refurbished

£20,000.00 exc VAT

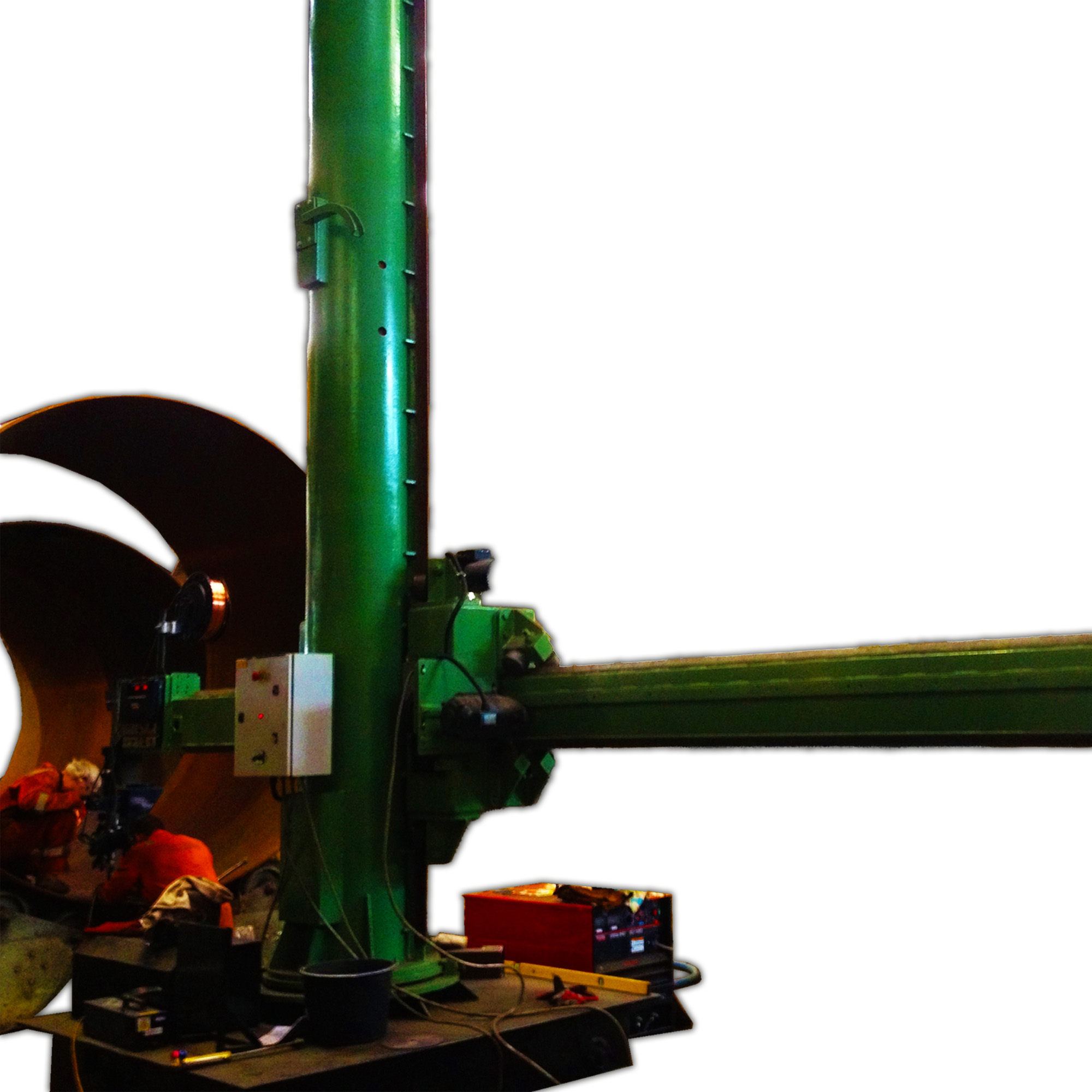

Recently fully refurbished in 2025 (now red – pictures to follow) used hire fleet BODE 4 x 4 column and boom submerged arc welding manipulator (machine only exc. welding equipment), in stock available same day @ £20,000 each inc. 3 years warranty.

Delivery, install, commissioning, and training also available.

SALE PRICE 4 X 4 + NA-3 WELDER COMPLETE @ £24,000

SALE PRICE 4 X 4 + NA-5 WELDER COMPLETE @ £24,000

  • New force cooled AC motor gearbox fitted for boom left/right traverse
  • New force cooled braked AC motor gearbox fitted for bogie up/down travel
  • New control panel system and new limit switches fitted

Product Description

4 x 4 SPECIFICATIONS:

  • Max height (floor to underside of boom): 4000mm
  • Boom longitudinal travel (A to B): 4000mm
  • Column centre to end of arm: 5300mm
  • CaB height: 5300mm
  • Boom length: 7200mm
  • Assembled CaB weight: 4,500kg
  • Duty rating: Medium-duty
  • Boom mounting: One end suitable
  • Boom max load capacity: 200kg total
  • Maximum weight at the end of arm: 200kg @ 1000mm
  • Maximum distance from end of boom: 1000mm
  • Supply voltage: 415V (32 amp plug)
  • Controller: 15m handheld pendant
  • Controls: Up/down/forward/reverse/stop/e-stop/variable speed
  • Static base

NOTE. Head assembly & 30kg spool holder can be mounted on the same end

Download spec sheet
