Product Description

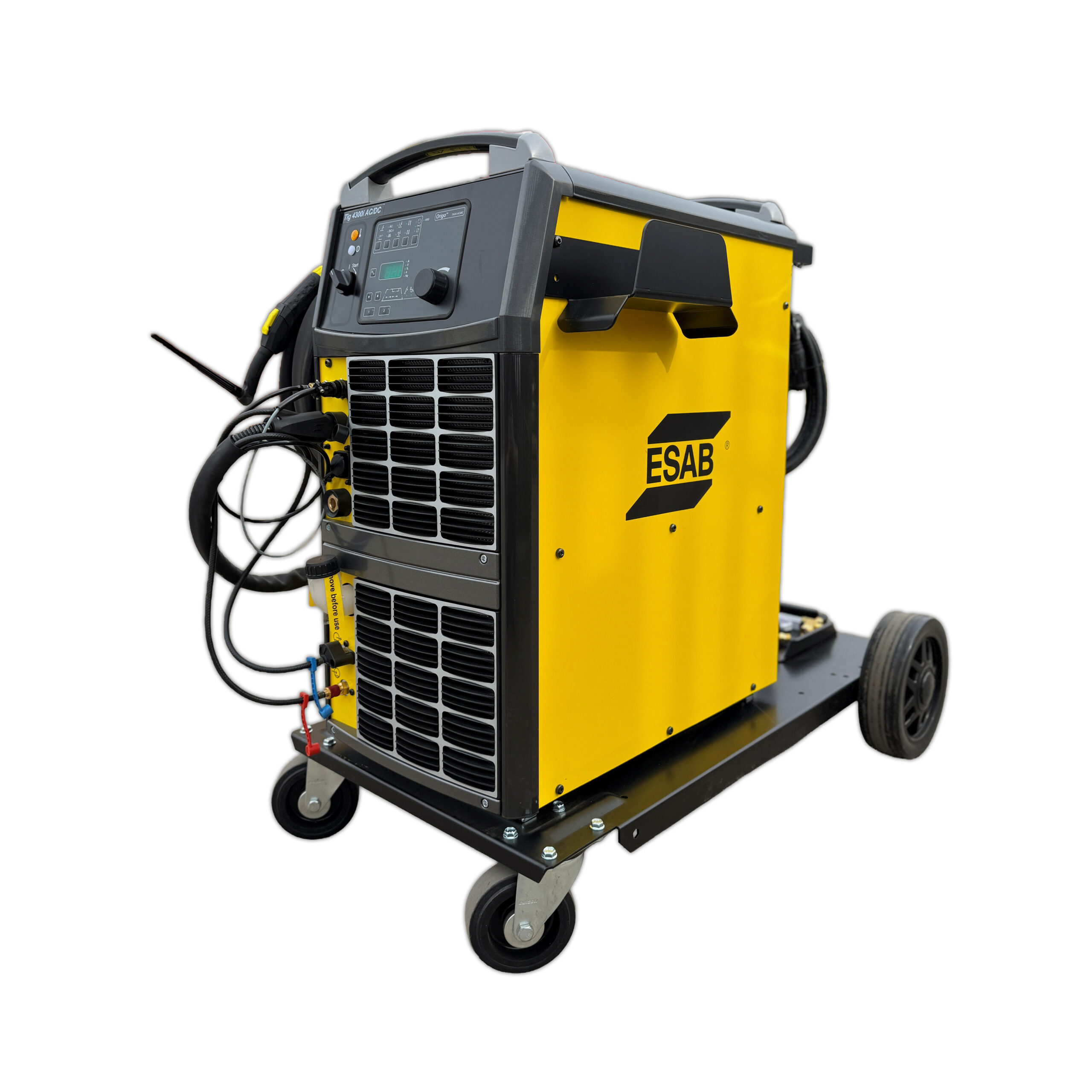

Specification for this Origio Water Cooled TIG Welder
Setting range TIG AC/DC 4 – 430
Setting range MMA 16 – 430
Mains supply, V/Ph 415 3-phase
Fuse type C MCB, A 25
Mains cable, Ø mm2 4 x 4
Maximum output DC/AC
at 40% duty cycle, TIG , A/V 430/27.2
at 60% duty cycle, TIG, A/V 400/26
at 100% duty cycle, TIG, A/V 315/22.6
Slope up, sec 0-10
Slope down, sec 0-10
PACKAGE INCLUDES:
- Origo Tig 4300iw AC/DC TA24 part no. 0460100880
- Trolley Tig 4300iw part no. 0458530881
- Exeor SR 21FX 8M water cooled Tig torch part no. 0700026293
- 600amp x 5mtr 70mm² earth lead
- 2mtr 6mm ID 20 bar argon hose 3/8th nut
- 32amp 5-pin plug

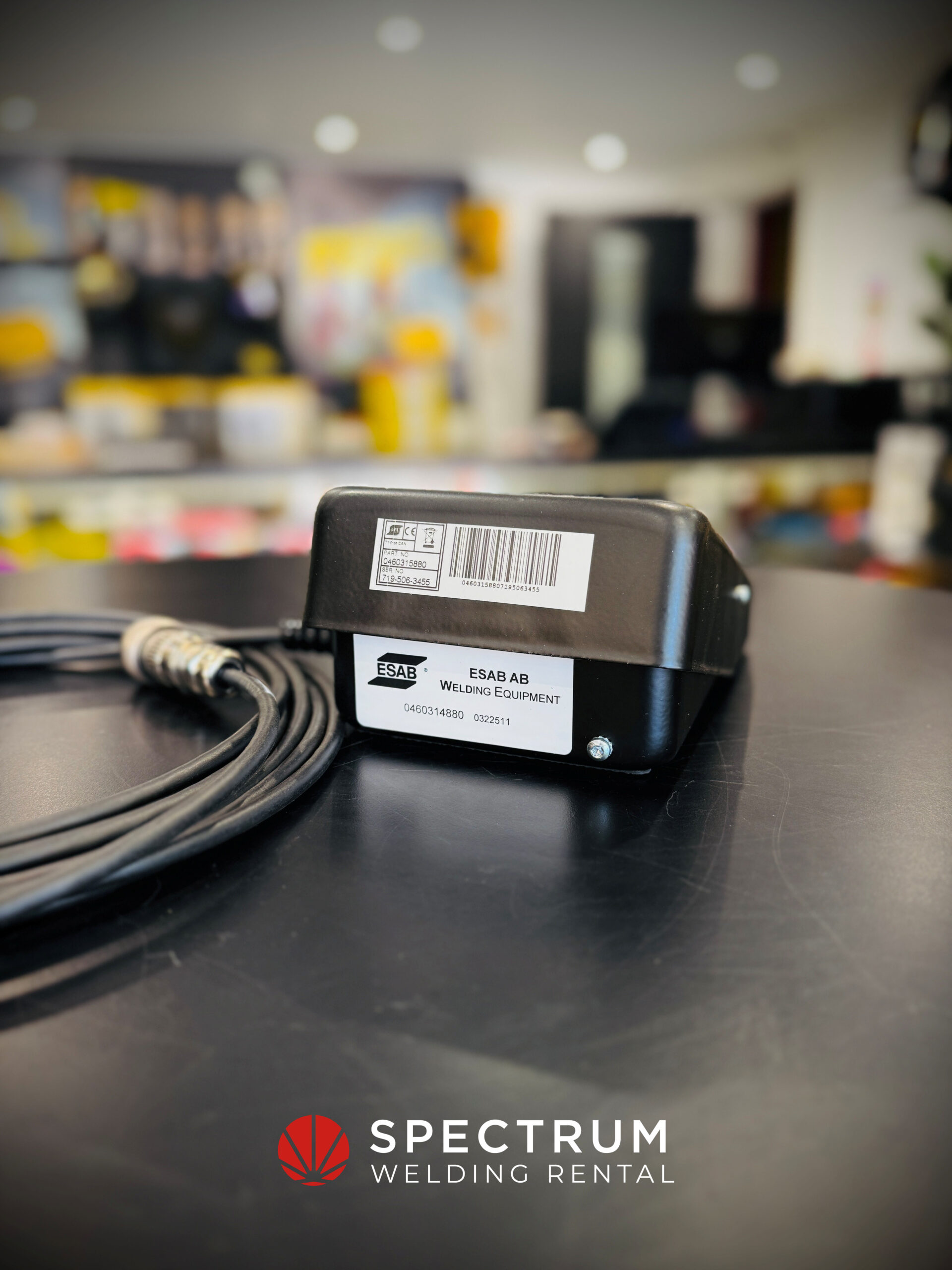

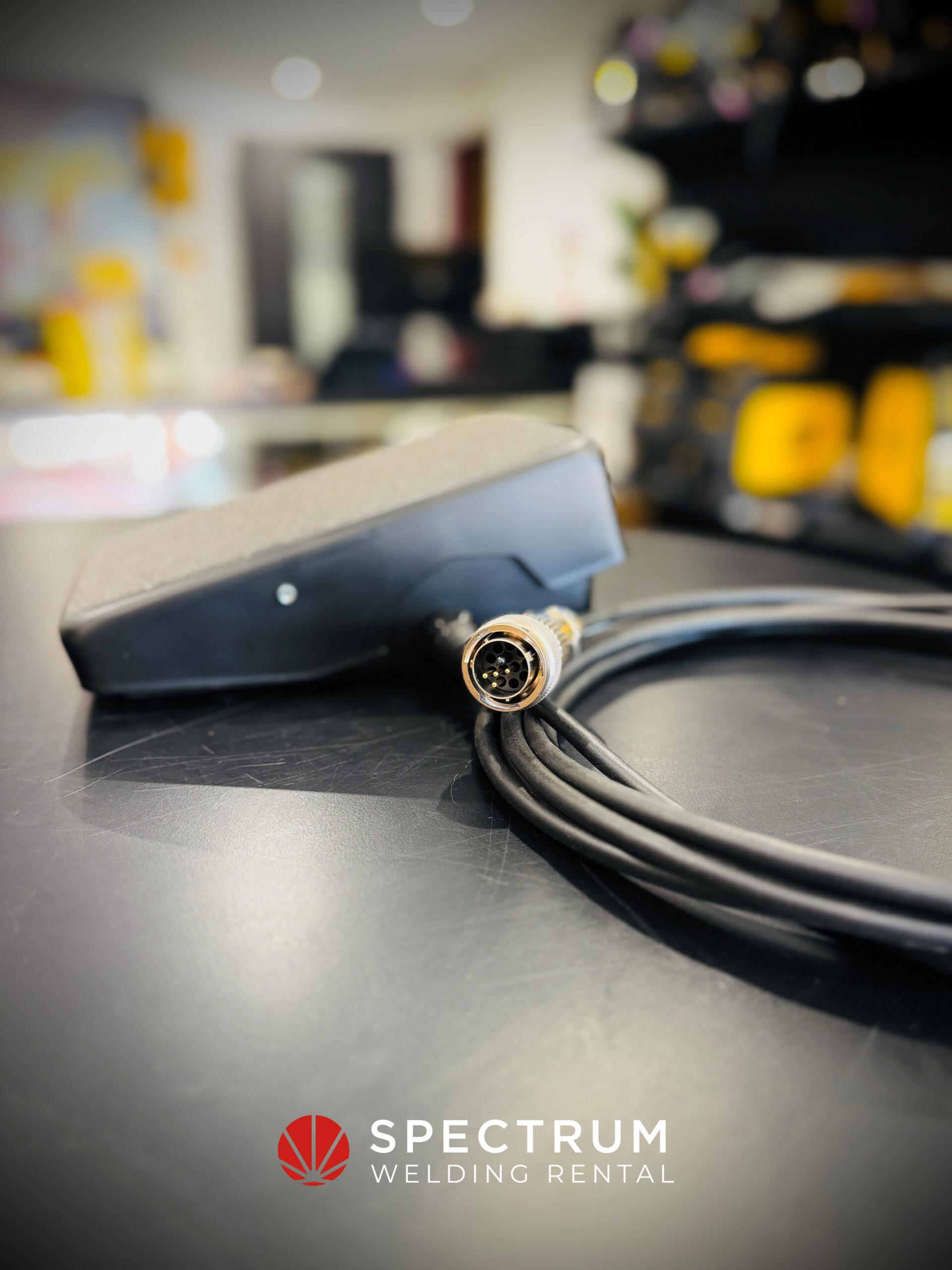

- NOTE. Foot pedal available upon request
