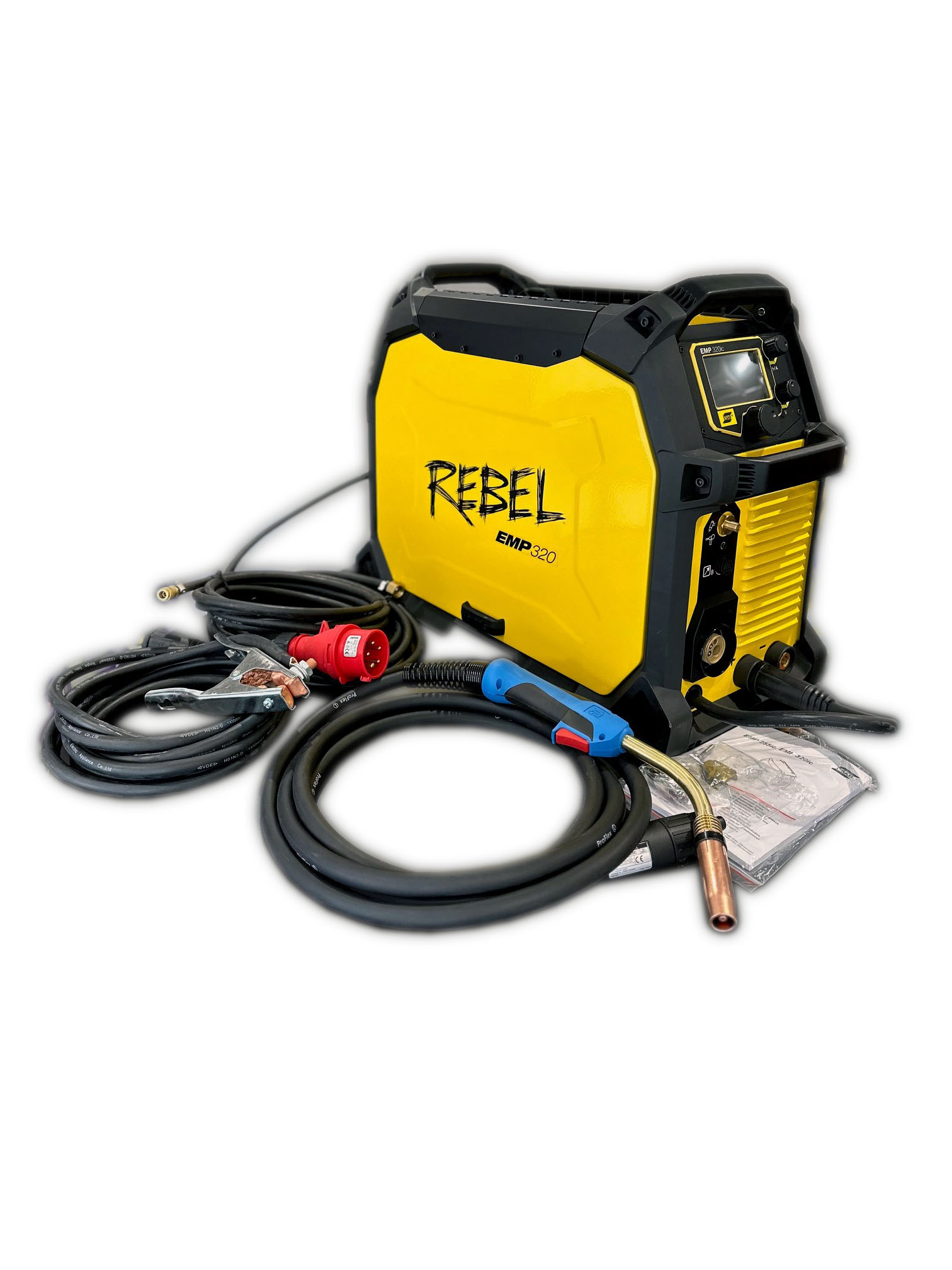

ESAB Rebel™ EMP 320ic compact air cooled MIG welder

£2,800.00 exc VAT

The ESAB Rebel EMP 320ic is the ultimate rugged portable air cooled MIG welder, to combine power and mobility.

The compact and lightweight system offers flexibility in any fabrication environment, and still has an output of 350 amps, capable of running 1.2mm solid, metal-cored and flux-cored wires with a high duty cycle.

PACKAGE INCLUDES:

  • TBi MB36 x 4mtr air cooled MIG torch (with M8/M8 tip adapter)
  • 400amp x 5mtr 50mm² earth lead
  • 2mtr 20bar 6mm quick release 3/8th nut argon hose
  • 415v 32amp 5-pin red plug
  • 1.0mm – 1.2mm V-Groove solid MIG wire drive rollers

Buy from the UK’s best family run welding equipment supplier.
Or call 01246 205 267 for more information.

Download the ESAB Rebel EMP 320ic brochure



Product Description

Specifications for the EMP 320ic

Primary Voltage 415 VAC
Supply Voltage Range 360 – 440 VAC
Number of Phases 3 ph
Supply Frequency 50/60 Hz
Supply Plug CEE16A plug
Mains Cable 3 m 4×2.5 mm2
Maximum Output 350 A
Protection Class IP23S

  • REBEL 320 WELDER: 220amps for 10 minutes continuous / 10 mins cool down
  • REBEL 320 WELDER: 110amps for 20 minutes continuous / 10 mins cool down
  • MB36 TORCH: 300amps for 4 minutes continuous / 6 minutes cool down
  • MB36 TORCH: 200amps for 10 minutes continuous / 10 minutes cool down

See the full spec sheet for the ESAB Rebel EMP320ic.

See the page on ESAB website.

Part no. 0700300991

Want more information? Call us...
01246 205 267 info@spectrumweldingsupplies.co.uk

Additional information

MIG Welding Output
40% Duty Cycle
60% Duty Cycle
100% Duty Cycle
320 A / 30.0 V
265 A / 27.3 V
200 A / 24.0 V
MMA Welding Output
40% Duty Cycle - 300 A / 32.0 V
60% Duty Cycle - 255 A / 30.2 V
100% Duty Cycle - 180 A / 27.2 V
TIG Welding Output
40% Duty Cycle - 320 A / 22.8 V
60% Duty Cycle - 265 A / 20.6 V
100% Duty Cycle - 200 A / 18.8 V
Wire Feed Speed Range 2.0 – 20.3 m/min
Wire Diameter Range:
Mild Steel - 0.8 –1.4 mm
Stainless Steel - 0.8 –1.4 mm
Flux Cored - 0.8 –1.6 mm
Aluminium - 1.0 –1.2 mm

Weight 31.4 kg
Dimensions 68.6 × 29.2 × 49.5 cm
Equipment Type

MIG Welding
Brand

ESAB
MIG Feeder Reach

Compact
Supply Voltage

415V
Cooling system

Air Cooled
