Product Description
PACKAGE INCLUDES:

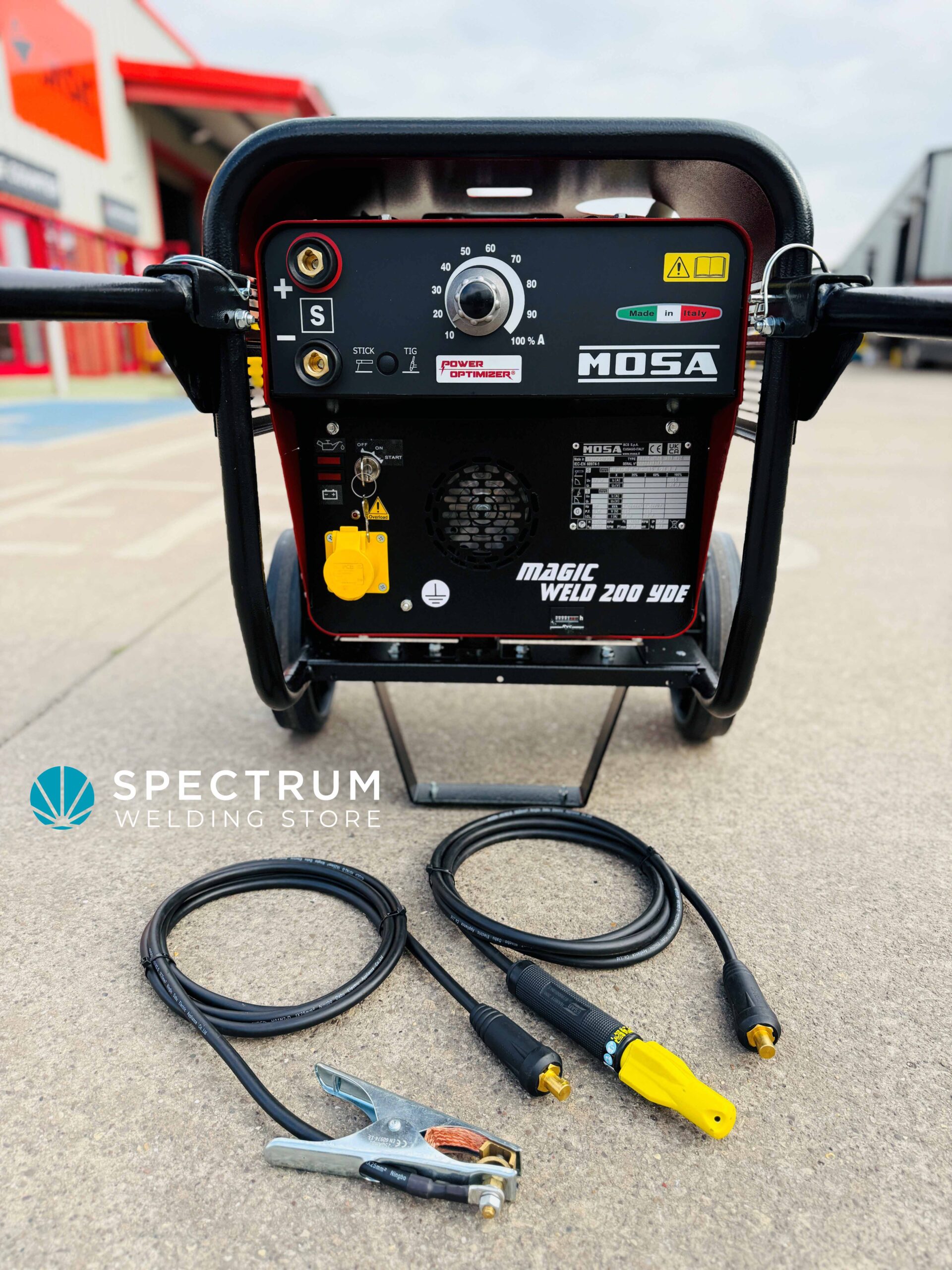

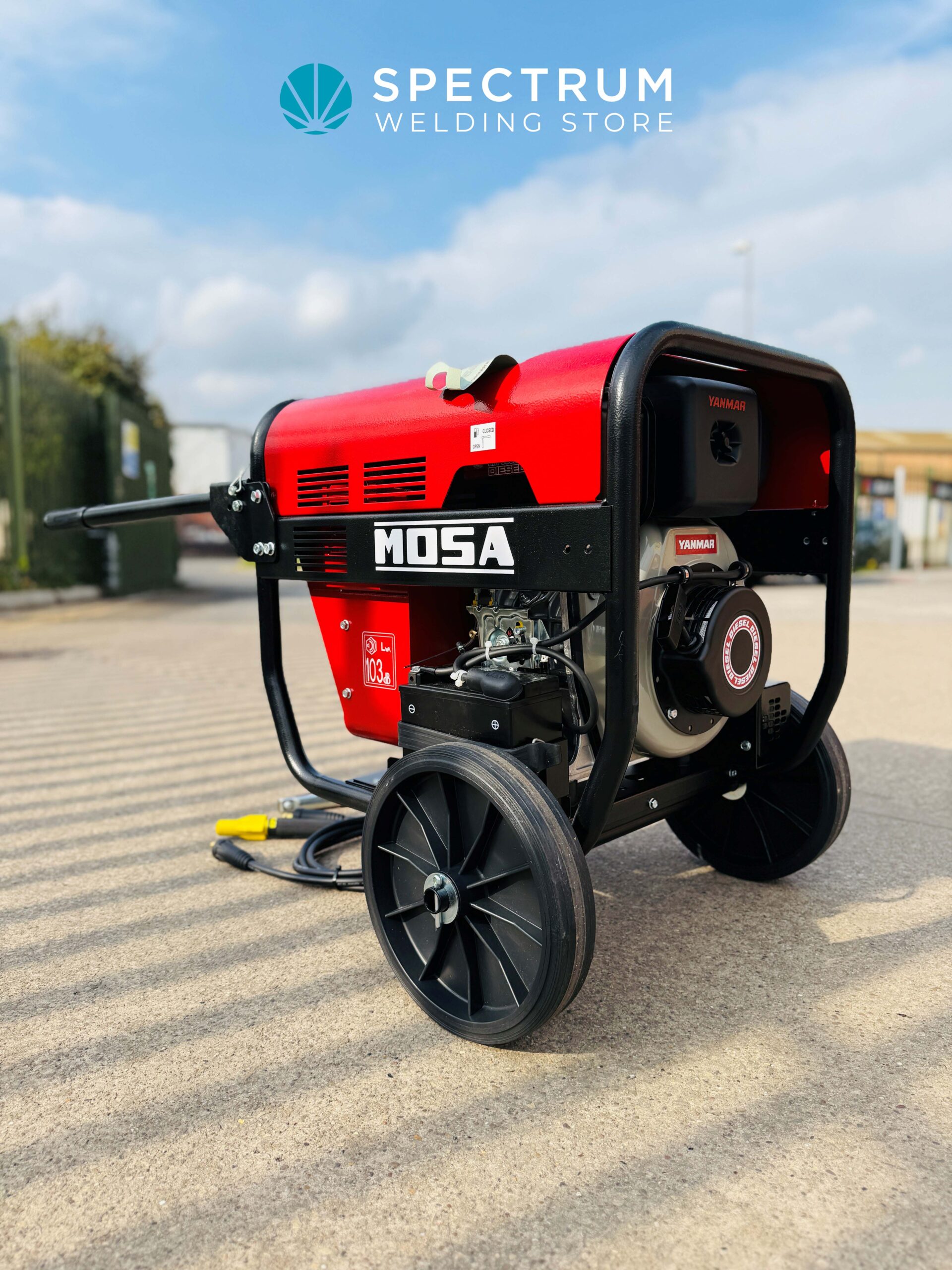

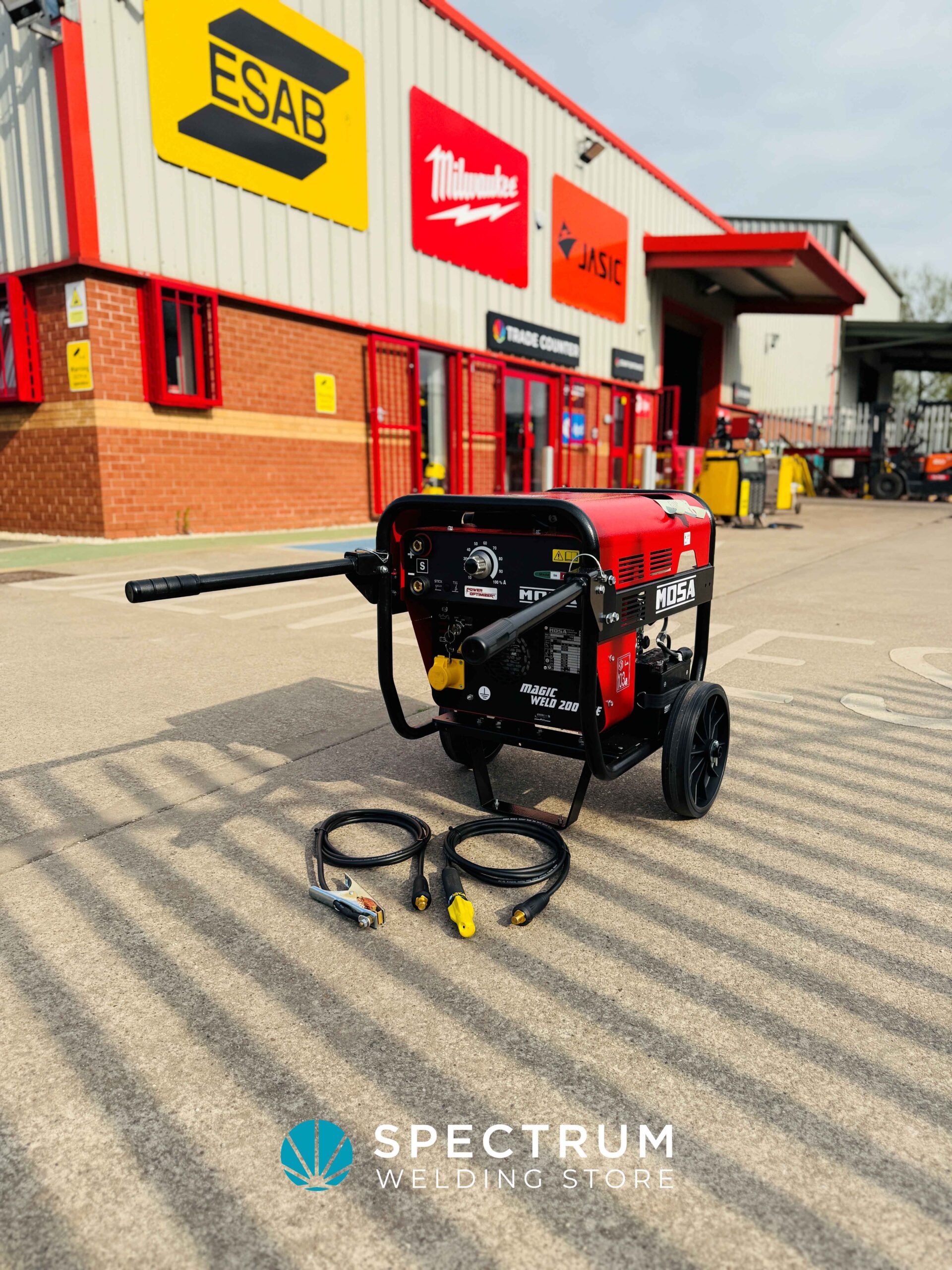

- Magic Weld 200 YDE electric start model with Power Optimiser
- Wheel and handle kit
- 200amp x 5mtr 25mm² earth lead
- 200amp x 5mtr 25mm² electrode lead
- Assembled and oil filled
Wheel kit and handles for Mosa 200 YDE @ £300 optional extra.
We assemble, fill with oil, check over, and test before despatch.
WELDING
- Welding current: 20 – 200A
- Duty rating: 170amps @ 60%
- Open circuit voltage (no-load voltage): 72V
- Electrode capacity: 4.0mm maximum
POWER RATINGS
- Single-phase power: 3.3 kVA / 230 V / 14.3 A
- Single-phase power: 2.1 kVA / 110 V / 18.3A
GENERAL SPECIFICATION
- Engine: Yanmar L70V
- Fuel: Diesel
- Cooling: Air
- Starter: Electric (key)
- Output: 4.8 kW (6.6 HP)
- Diesel Tank capacity: 3.3 ltr
- Running time (welder 60%): 3.3 hours
- Acoustic power LwA (pressure LpA): 103 dB(A) (78 dB(A) @ 7 m
- Dry Weight: 91 Kg
- Dimensions max. on base Lxlxh: 630 x 490 x 540mm
