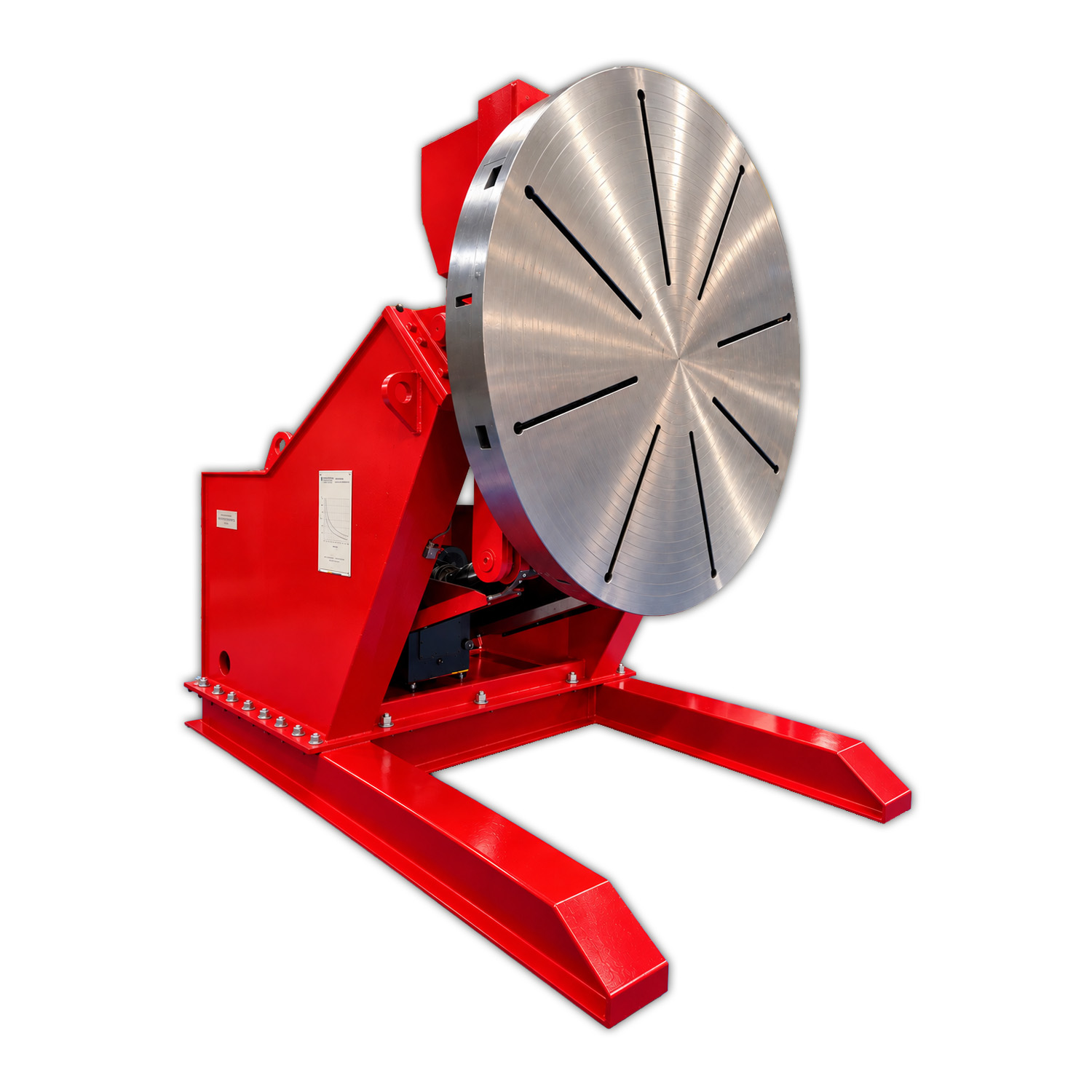

SAFETY GUIDE: MAX LOAD and TOTAL DISTANCE from the table when tilted 90° in the vertical position / based on EVEN balanced weight distribution / with no support at the other end

• @ 1000mm: 30,0000kg
• @ 1500mm: 18,000kg
• @ 2000mm: 12,000kg
• @ 2500mm: 8,000kg
• @ 3000mm: 4,000kg

SAFETY GUIDE: MAX LOAD and TOTAL DISTANCE from the table when tilted 90° in the vertical position / based on UN-EVEN / ECCENTRIC / OFFSET weight distribution / with no support at the other end

• @ 1000mm: 15,000kg
• @ 1500mm: 9,000kg
• @ 2000mm: 6,000kg
• @ 2500mm: 4,000kg
• @ 3000mm: 2,000kg

• TILTING TIME:  40 seconds 0 – 90 degrees
• DEGREE TABLE TILT:  110° hydraulic tilt
• MAX TILTING TORQUE:  300,000 NM
• ROTATION SPEED ROTATION TORQUE:  55,000 NM
• ROTATION SPEED:  0.01 (60 min revolution slowest) to 0.6 rpm (2 minute revolution fastest)
• CONTROL:  Cable pendant control (UP/DOWN/LEFT/RIGHT)
• ELECTRICAL SUPPLY:  3-phase 380V to 440V 50/60Hz
• INPUT CURRENT:  40amps (63amp plug needed)

• LENGTH:  4100mm
• WIDTH:  2380mm
• HEIGHT:  2510mm (LOW-LOADER STEP-BED TRAILER TRANSPORT REQUIRED TO DELIVER!)
• TABLE WIDTH:  2400mm (8x bolting slots that are 27mm – 1” – wide)
• HEIGHT FROM THE FLOOR TO CENTRE OF TILTED TABLE:  2180mm (2120mm centre of table to leg)
• MAXIMUM JOB DIAMETER CAPACITY WITH VERTICAL TABLE:  4200mm (2120mm centre to leg)
• LEG HEIGHT:  270mm
• DISTANCE LEGS STICK OUT BEYOND VERTICAL TABLE:  750mm
• MACHINE WEIGHT:  10,000KG
