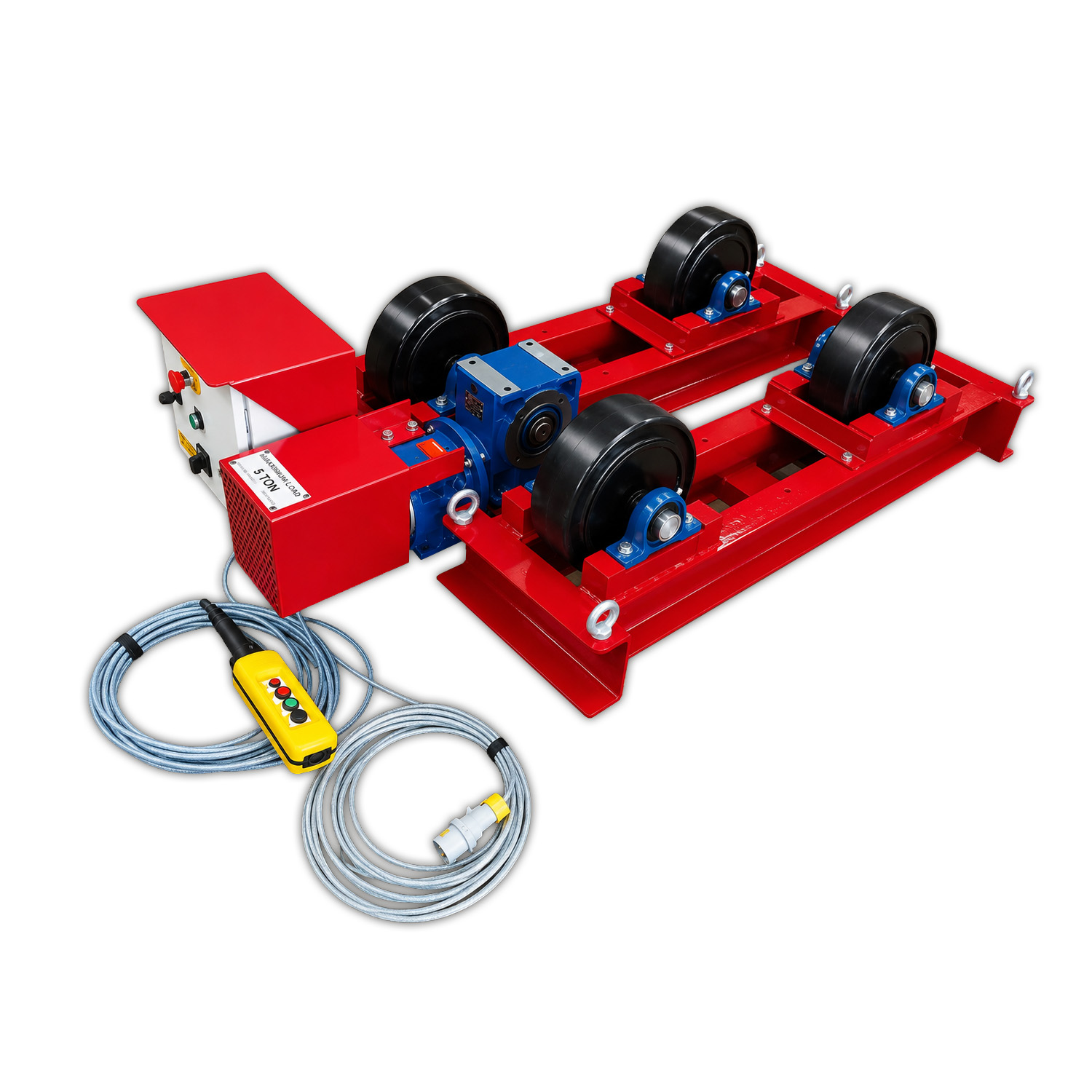

5 tonne pipe rotators 110V (British)
5 tonne pipe rotators 110V (British) - Image 2

5 tonne pipe rotators 110V (British)

£12,000.00 exc VAT

Brand new Spectrum UK manufactured single-phase 110V 5 tonne pipe welding rotators in stock @ £12,000 net per set.

Special features include:

  • Very popular single-phase 110V supply
  • High-powered drive unit system with lots of additional low end torque
  • Extra low working height and super compact for optimal space saving

Additional support idlers also available @ £4,000 net each.

In stock here at Spectrum Welding, Chesterfield.

Product Description

5 TONNE ROTATOR SPECS:

  • Manufacturer: Spectrum
  • Model: SWS-5CR-UK
  • Set: 1x drive & 1x idler
  • Set capacity: 5 tonnes
  • Drive capacity: 2,500kg
  • Idler capacity: 2,500kg
  • Diameter capacity: 100mm MIN to 2000mm MAX
  • Roller speed: 80mm to 1800mm/min
  • Control panel: Modern inverter AC
  • Cooling: Self-cooled fan + Force-cooled fan
  • Controller: Variable speed / forward / stop / reverse
  • Supply: 110V
  • Amps:  8 (16amp yellow plug fitted)
  • kVA required: 1 kVA continuous
  • Pendant controller: 10 metre
  • Foot pedal control: 10 metre (SY braided 2.5mm²)
  • Steel wheels available (for pre-heated pipe)

UK MANUFACTURED HERE AT SPECTRUM WELDING

  • Fully in-house designed
  • Inverter control panel wired and made at Spectrum
  • Fabricated, machined, painted, built
  • BS EN 1090-3 / LRQA ISO 9001
  • GA and CAD drawings + numbered wiring diagram
  • Gearbox ratio / motor kW / torque & travel speed configured
  • Steel & component kN load calculation test document
  • Load tested
  • CE Marked
