800amp ESAB LAF 1001 A2 PEK 4-wheel 25mtr submerged arc welder tractor for hire

TO HIRE SUB ARC @ £500 p/week

Email us to set an account up and hire straight away.

The UK’s largest fleet of submerged arc welder tractors in stock available to hire, with ESAB LAF 1001 and A2 PEK.

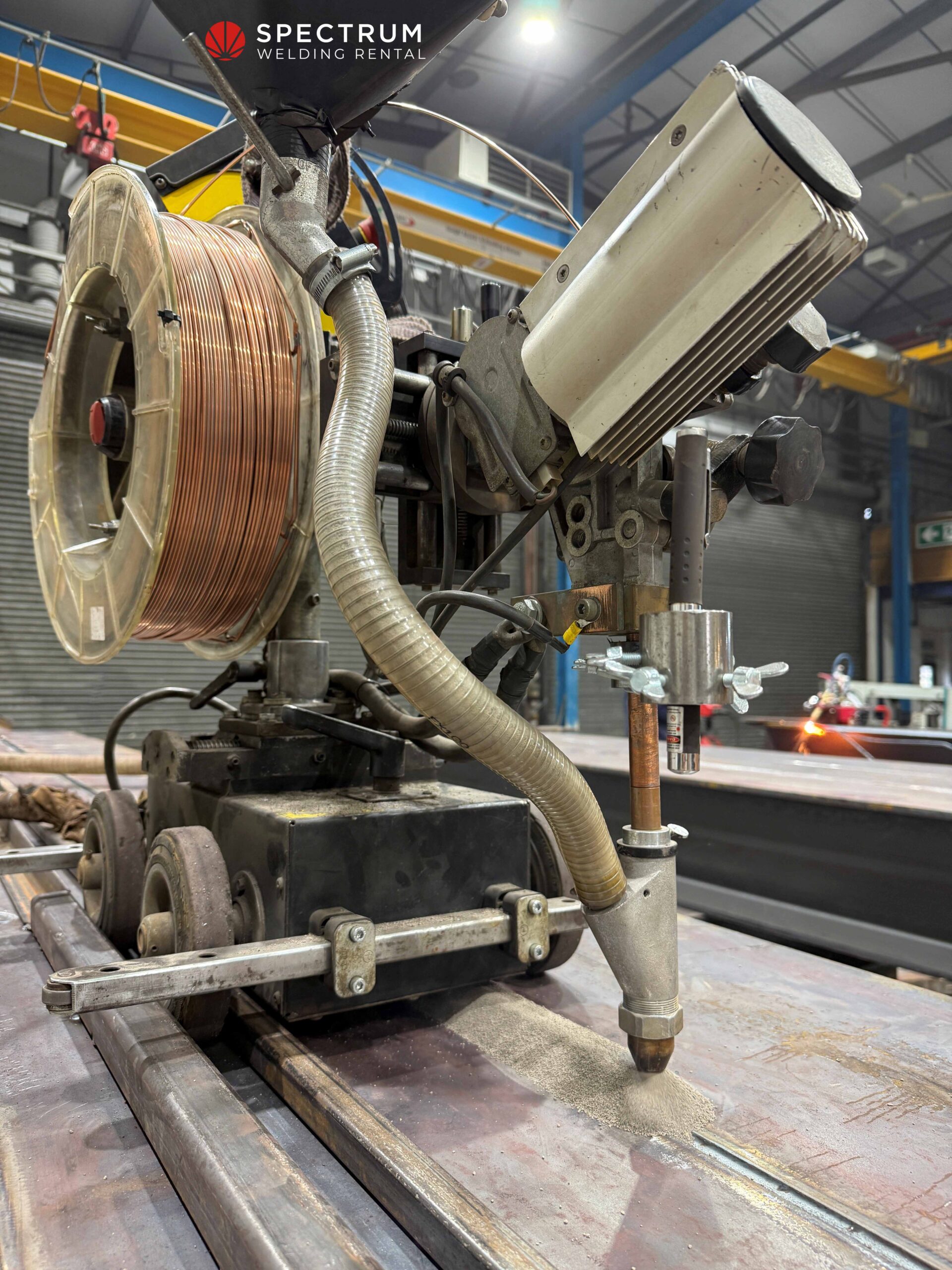

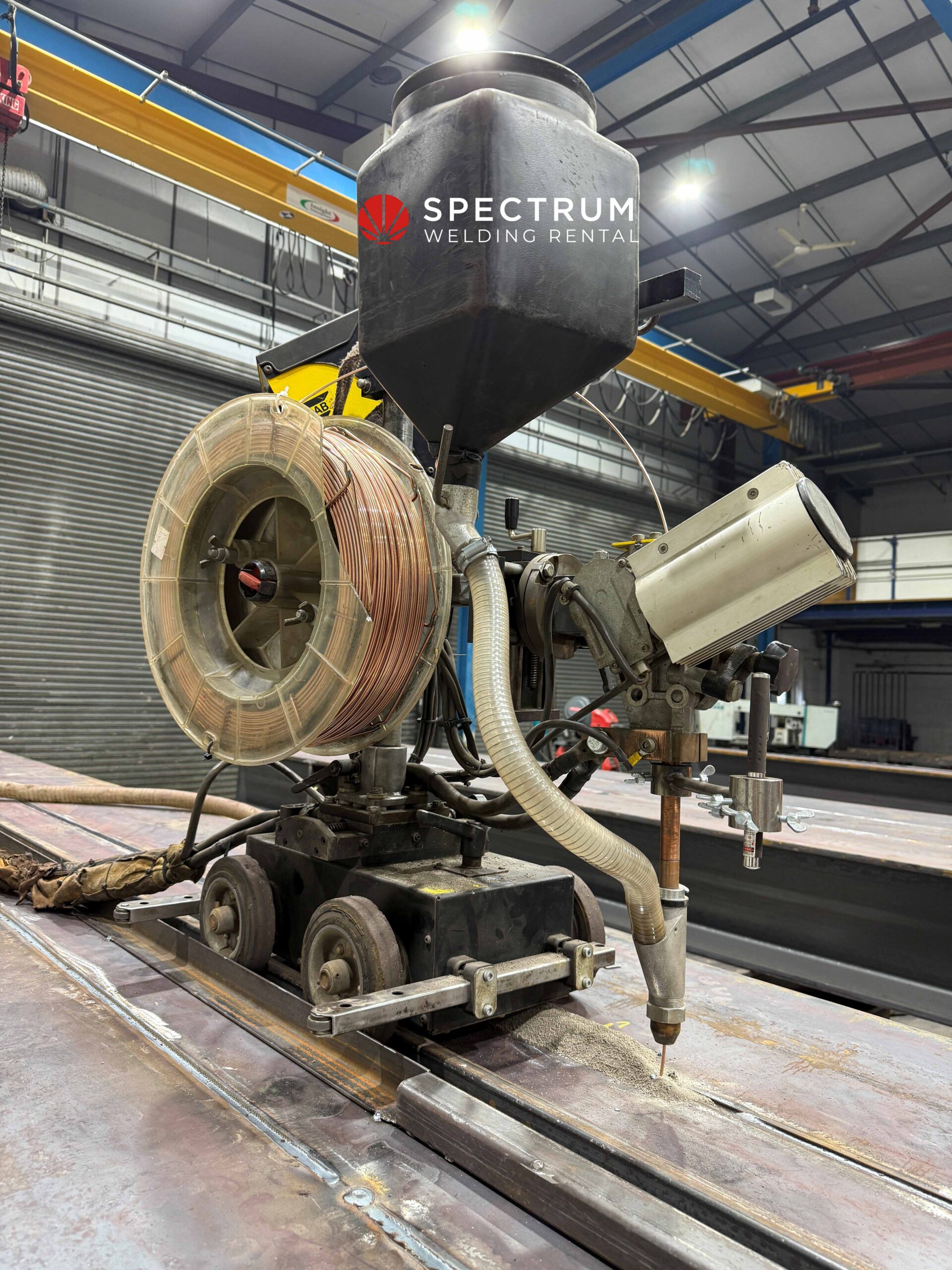

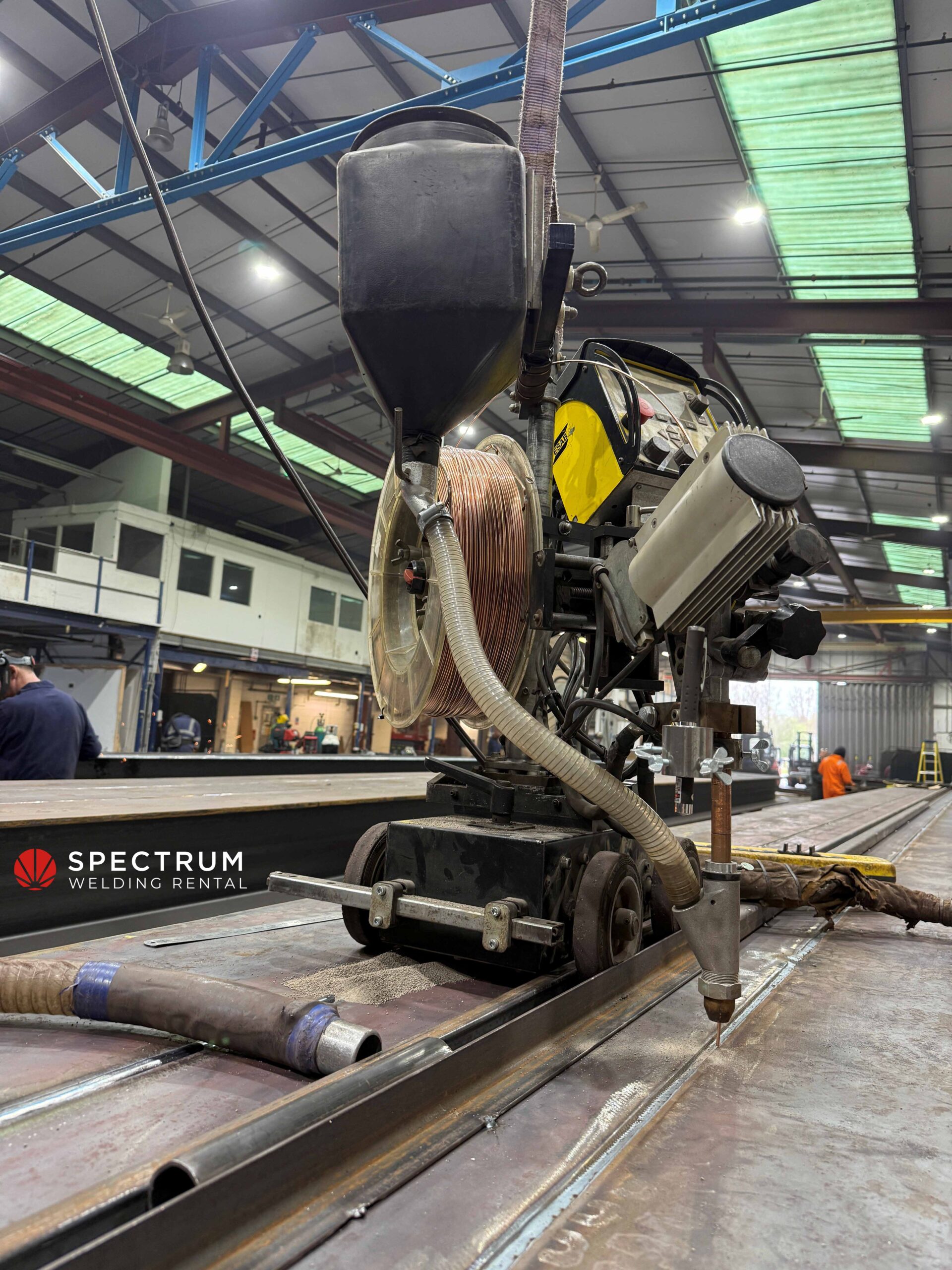

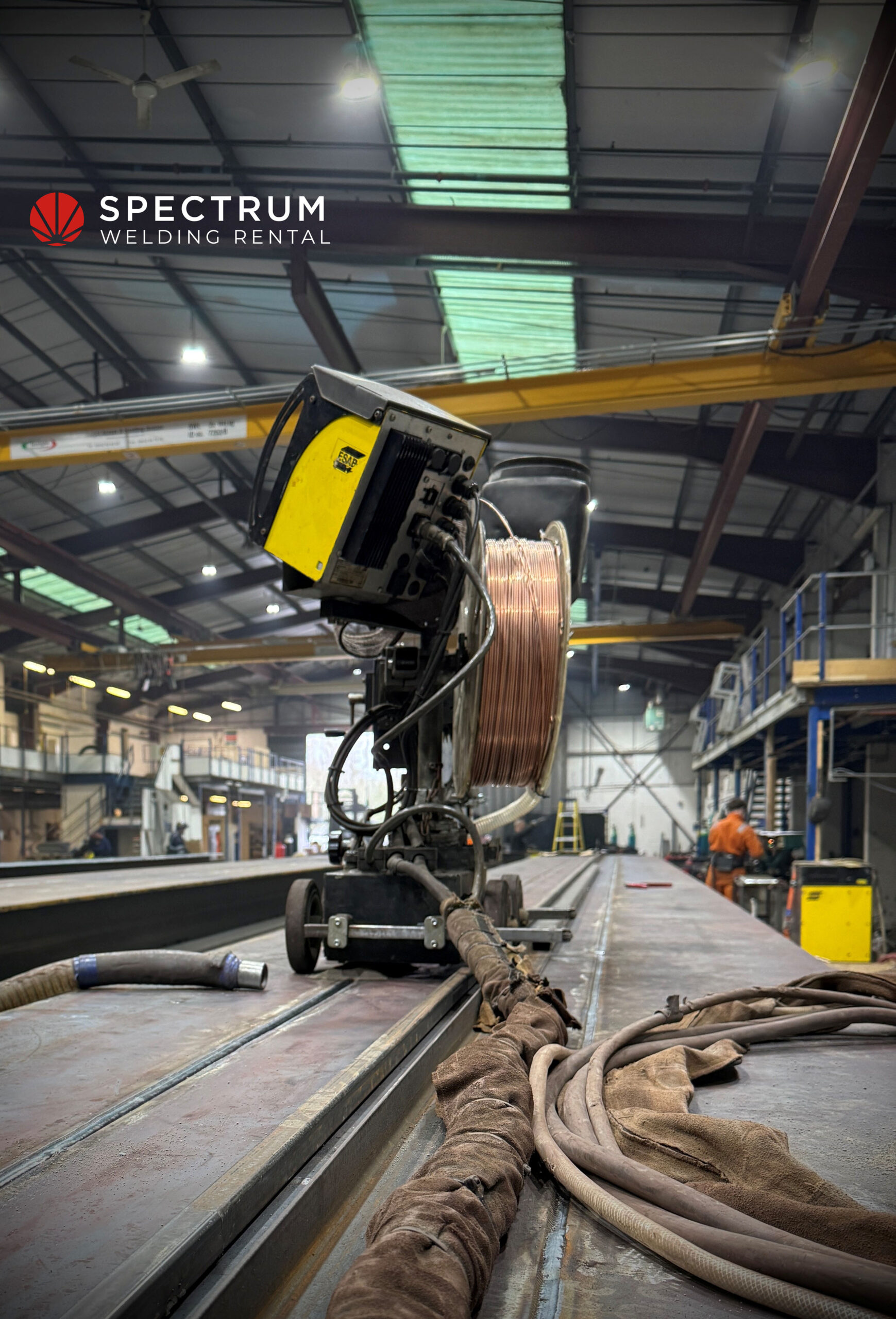

A few snaps of some of our hire plant ESAB LAF 1001 power sources c/w A2 PEK 4-wheel tractors (25mtr / 50mtr interconnection cable) submerged arc welders packages. These beastly machines have been laying down welds 24/7 on night shift for some time, without missing a beat. The guys have produced stunning runs 💥, that have passed inspection 🧐

The heavy bridge beams being welded had 2 ESAB sub arc welder power sources positioned in the middle of the beams, to enable the tractor unit interlink cable, to reach both ends. These were setup using ESAB 3.2mm wire and flux consumables, to achieve the required yield and tensile strength. The A2 tractors holding the weld tip, ran in opposite directions to each other, only passing once during the weld runs, keeping the interpass temperature down. This vastly sped the job up, with perfect results 🌉

See spec sheet: 800amp ESAB LAF 1001 sub arc tractor

Email about this machine: info@spectrumweldingsupplies.co.uk

Product Description

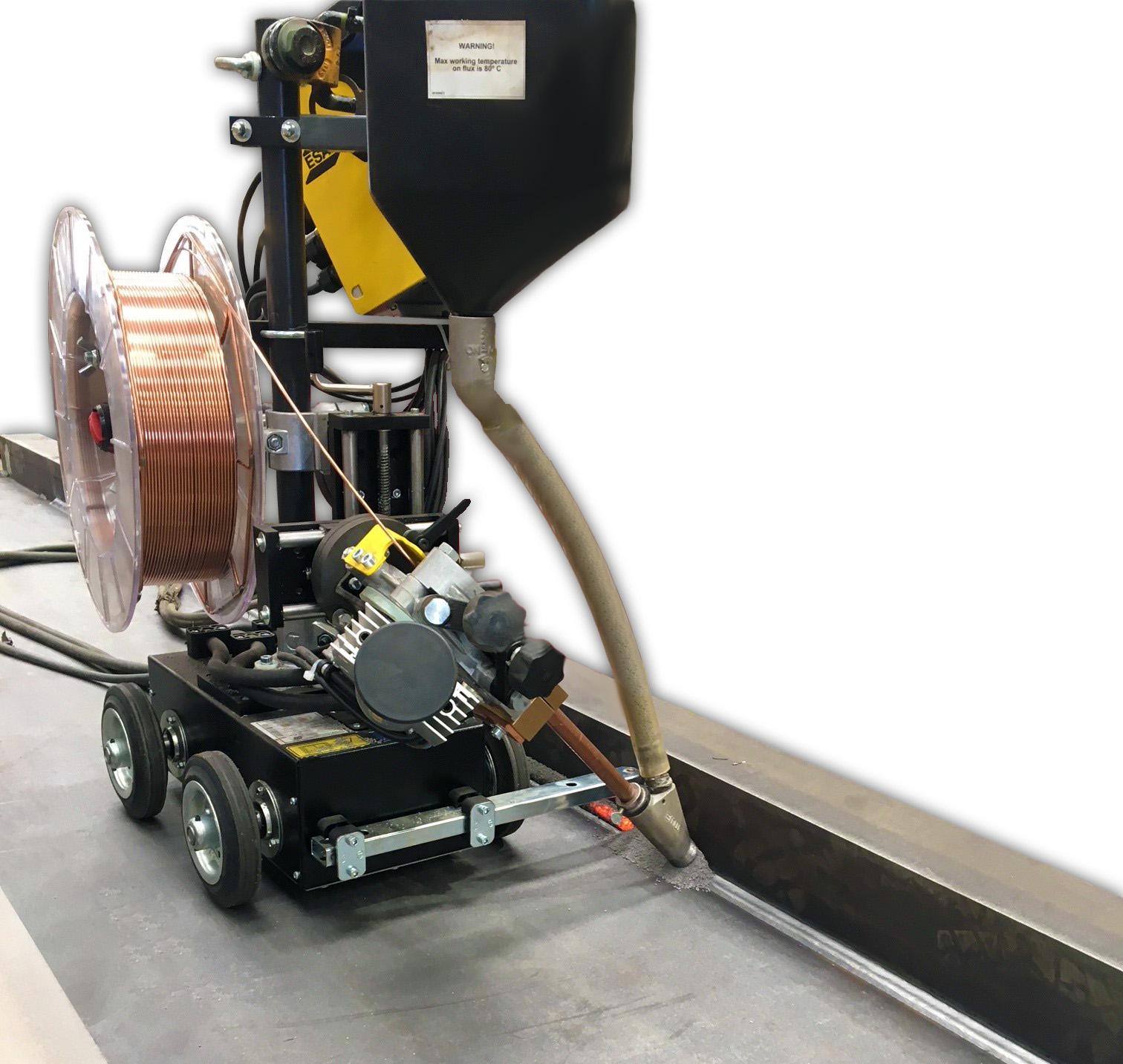

A2 Tractor Features:

  • The PEK controller is easy to use (training offered)
  • 4-wheel drive, so no track required
  • Massive reach and adjustability for awkward fillet welds

HIRE PLANT PACKAGE @ £500 P/WEEK INCLUDES:

  • 1 off,  ESAB LAF 1001 power source
  • 1 off,  4mtr 415V primary cable fitted (16mm² 4-core)
  • 1 off,  63amp 5-pin plug
  • 1 off,  A2 PEK 4-wheel drive model
  • 1 off,  Laser guide
  • 1 off,  Single spool holder
  • 1 off,  25mtr interlink cables & controller cables complete (twin 95mm² copper cables)
  • 1 off,  1200amp 10mtr twin 95mm² copper cable earth lead c/w 2x 600amp screw-type clamps
  • 1 off,  Setup for 3.2mm single wire

See the A2 PEK product brochure.

See the LAF 1001 product brochure.

PEK controller manual download

LAF power source manual download
