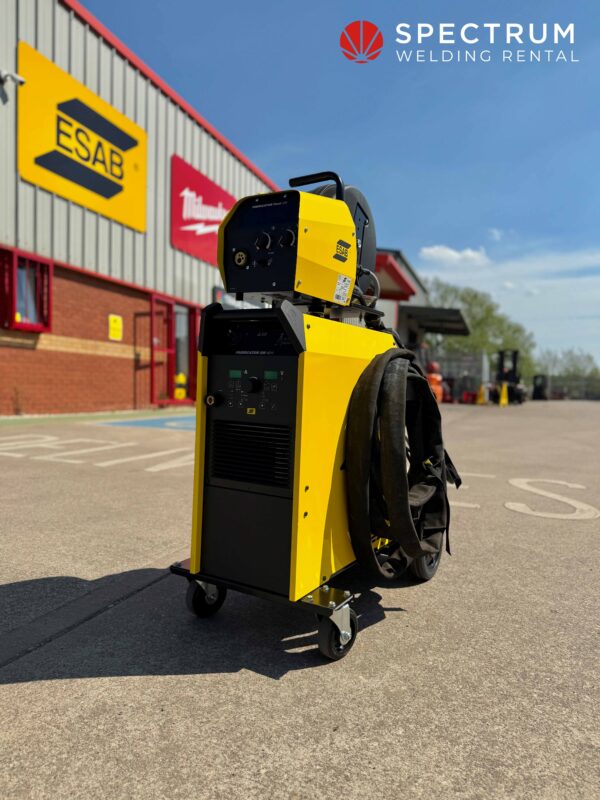

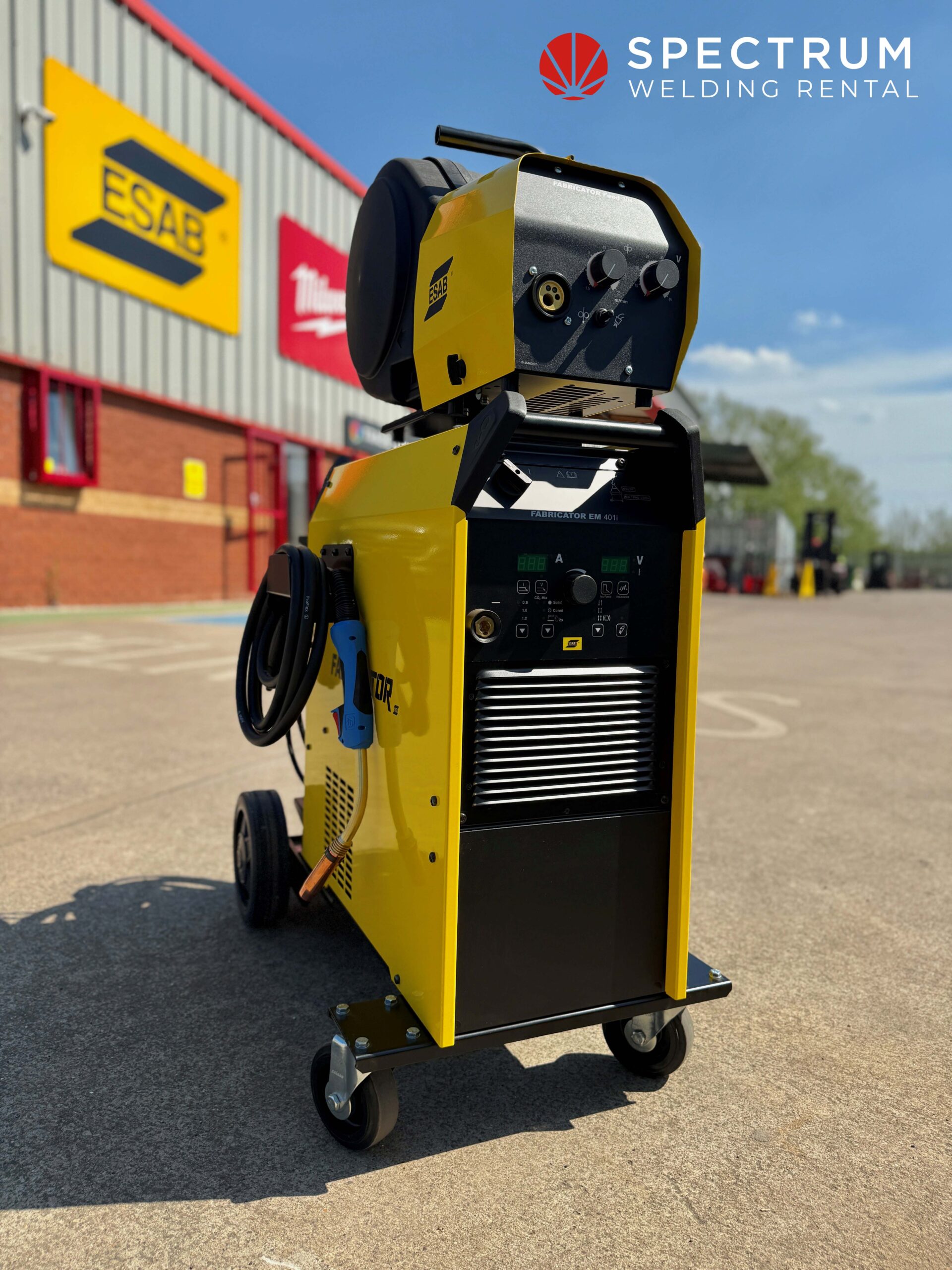

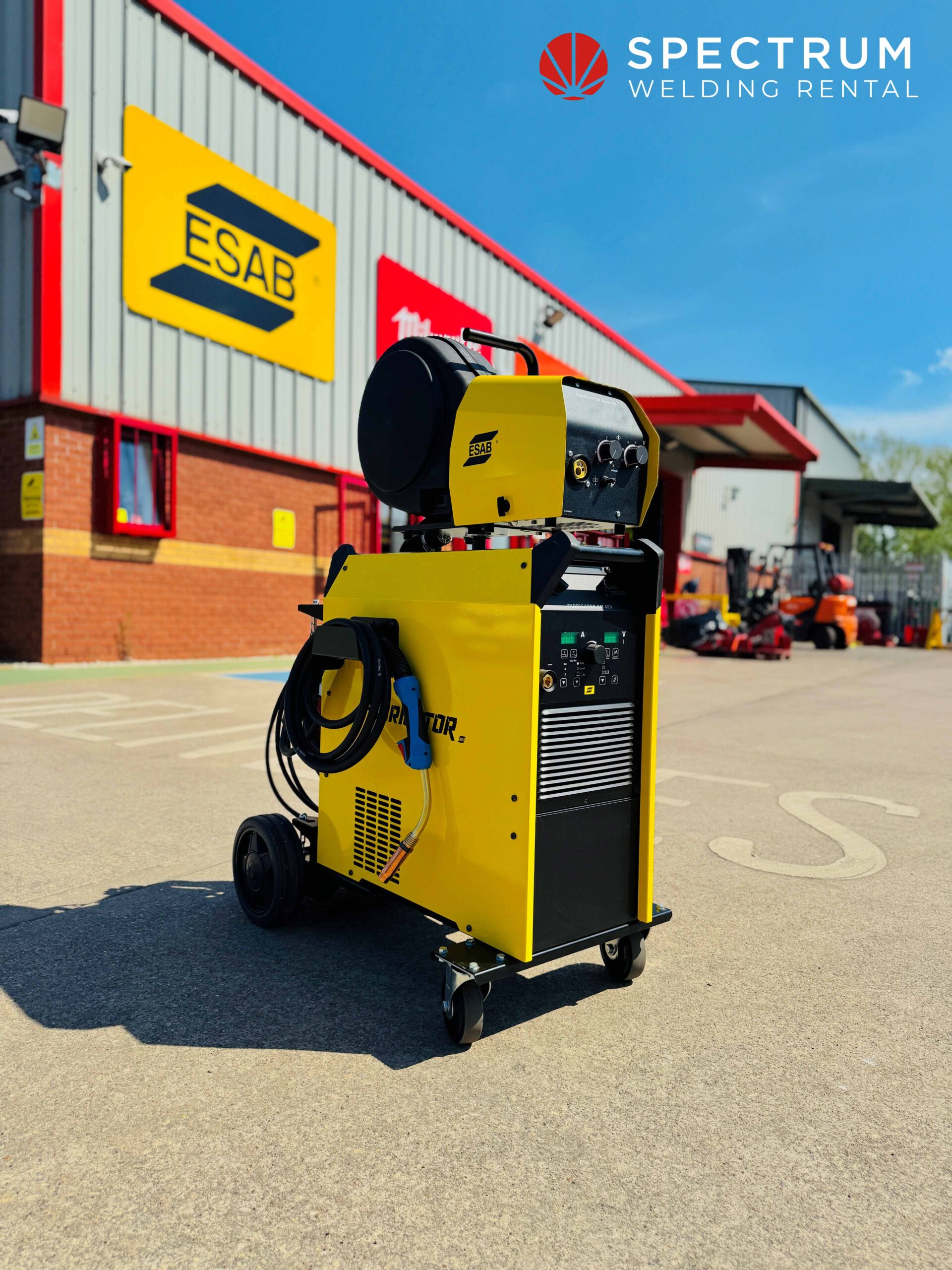

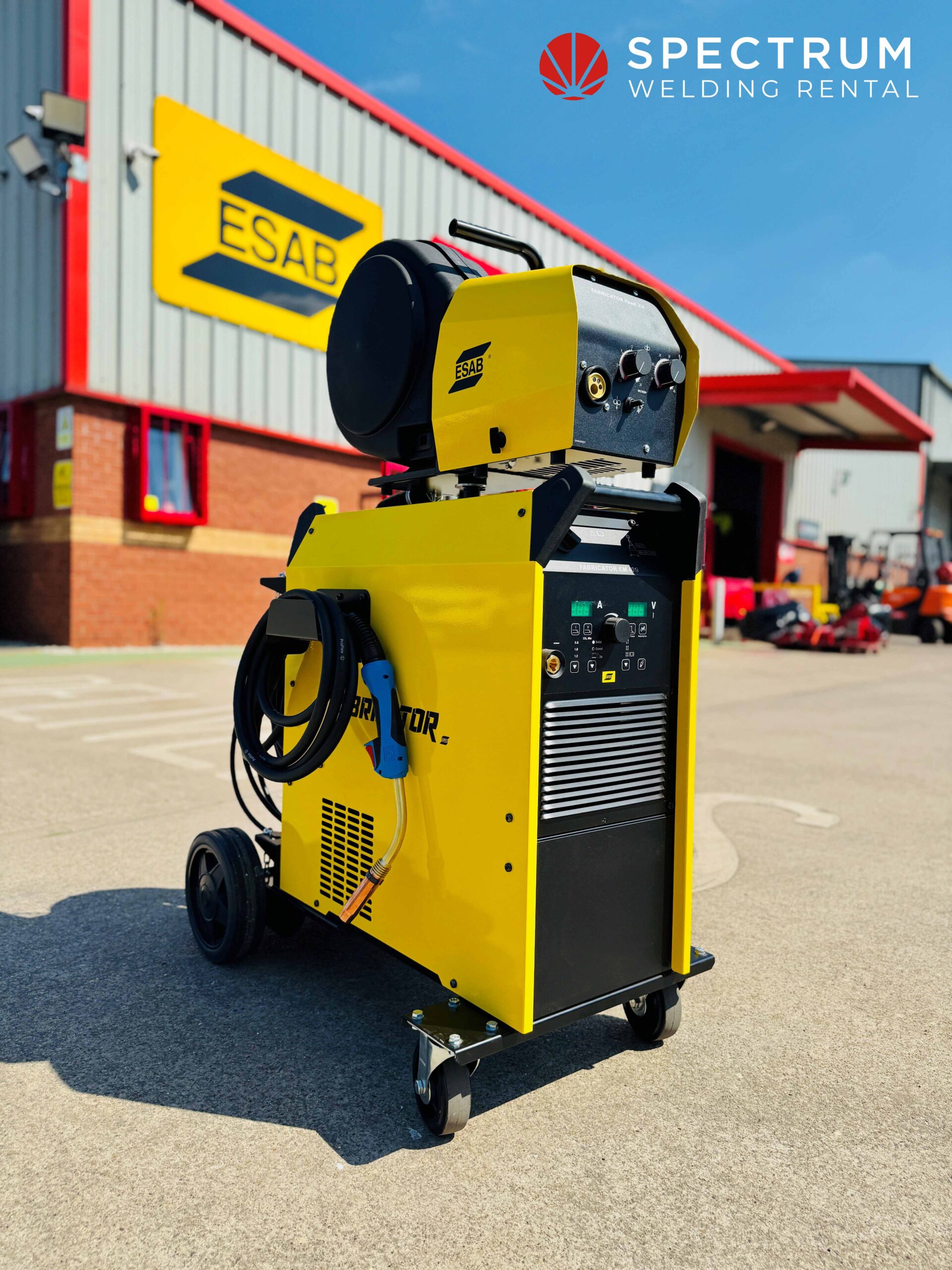

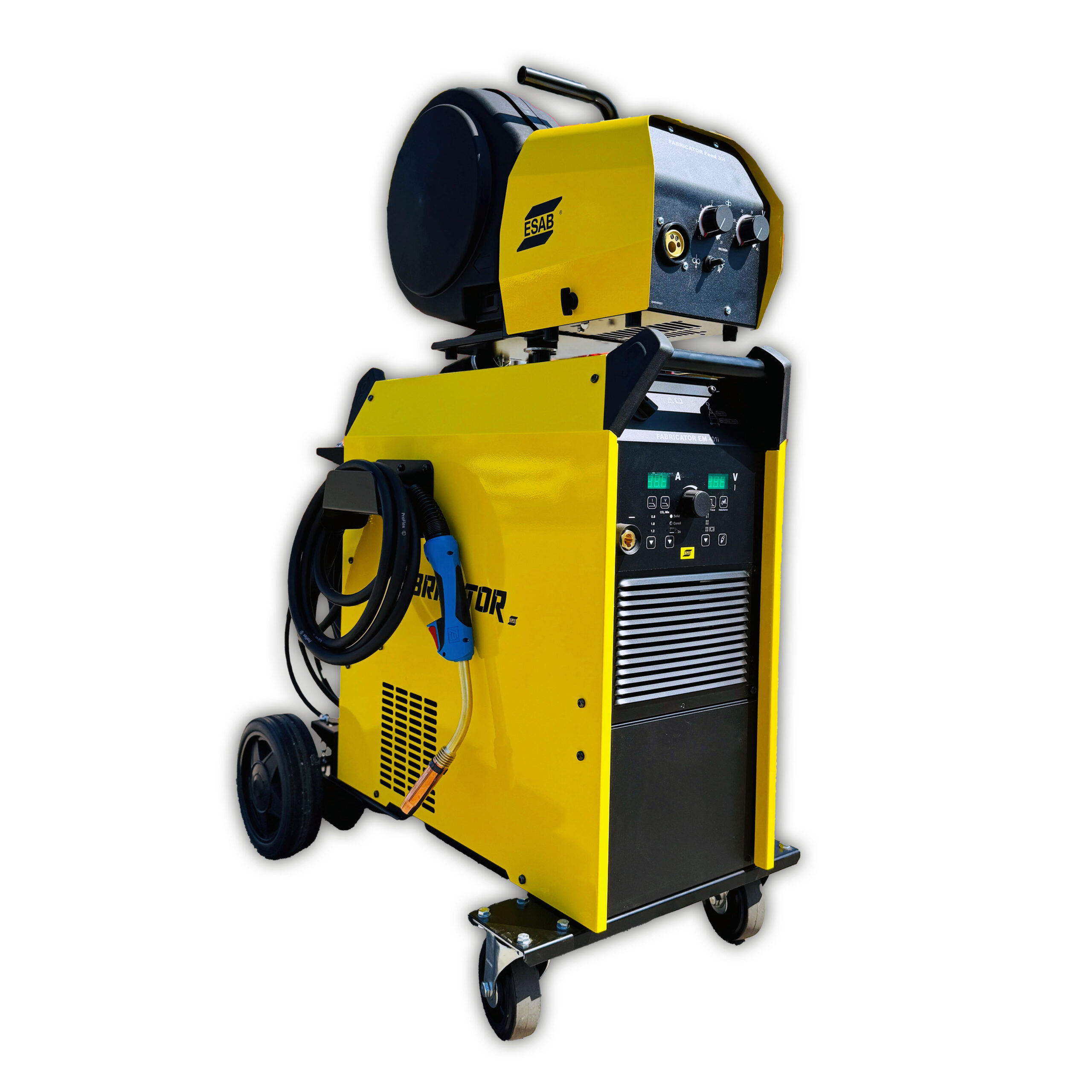

ESAB Fabricator EM 401i air cooled MIG welder for hire

TO HIRE 401 @ £100 p/week

Email us to set an account up and hire straight away.

The Fabricator 401 is a heavy duty 400amp air cooled inverter controlled power source, designed for all-day mild steel MAG welding 1.0mm and 1.2mm OK Aristorod 12.50 copper-free bare solid wire.

Built to withstand harsh environments, it’s soon become the No.1  solution for most fabrication shops in the UK.

See spec sheet: ESAB Fabricator EM 401i hire

Email about this machine: info@spectrumweldingsupplies.co.uk

Hire this machine

    Call 01246 205 267 or contact us below

    Product Description

    PACKAGE INCLUDES:

    • Fabricator 401 MIG welder part no. 0446400884
    • 3m x 6mm² 4-core SY power supply cable fitted

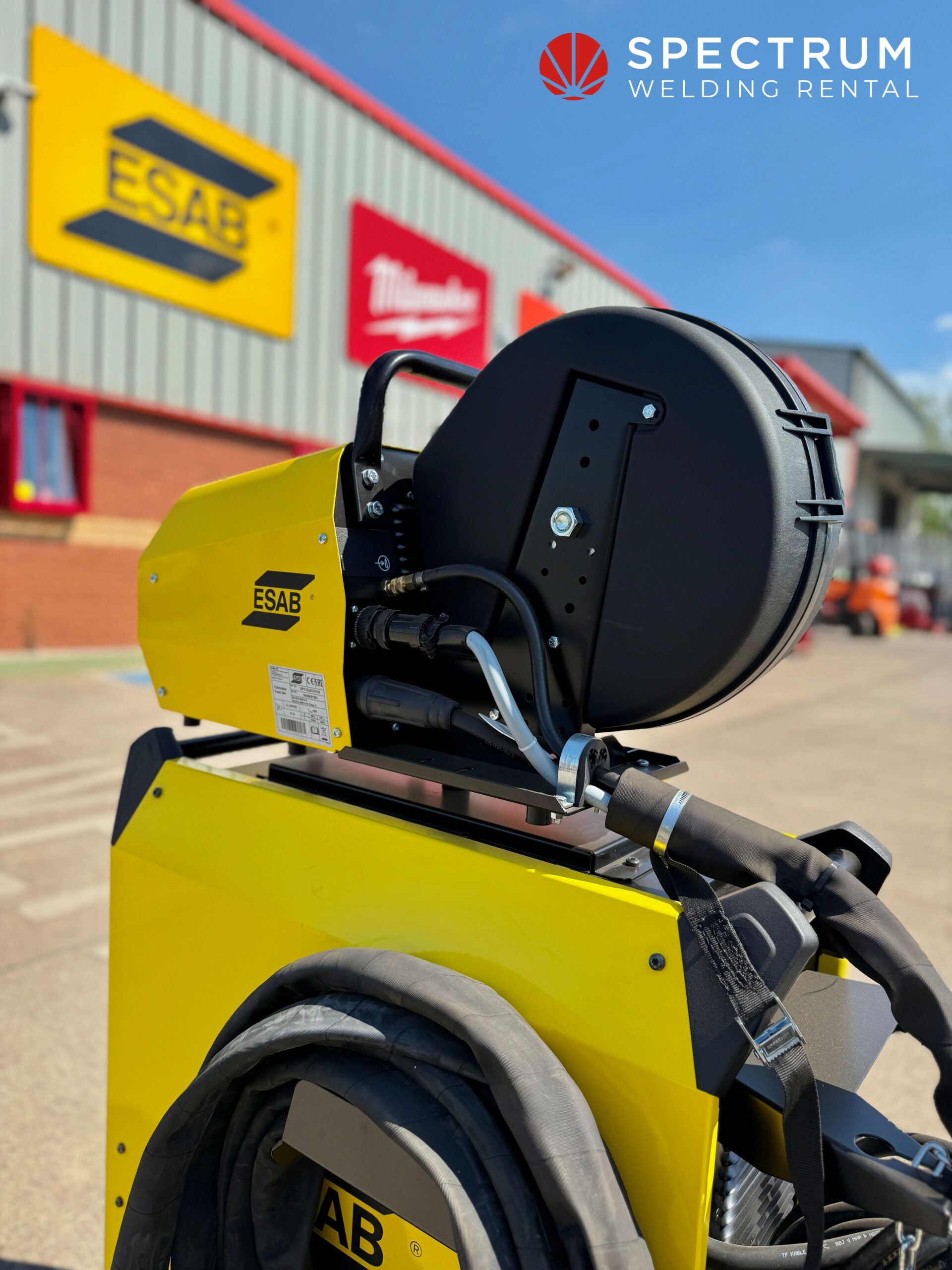

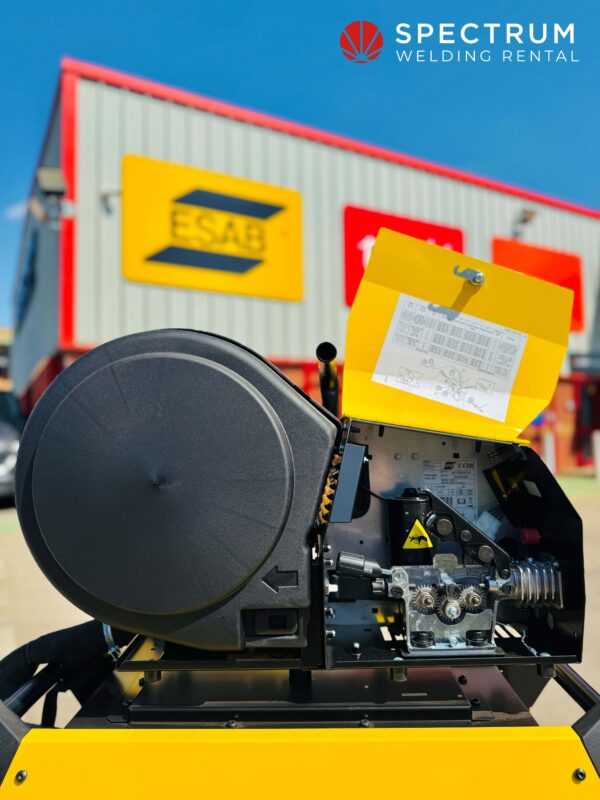

    • Fabricator Feed 304 part no. 0446401881
    • Feed 304 interconn strain relief part no. 0459234880 (for back of wire feeder)
    • On wheels with bottle trolley
    • TBi MB36 x 4mtr air cooled MIG torch
    • 400amp x 5mtr 50mm² earth lead c/w 400amp clamp
    • 10mtr interlink (machine to feeder reach)
    • 3mtr 20bar 6mm ID 3/8th nut argon hose
    • 415V 32amp 4 or 5-pin red plug
    • Assembled
    • Weld tested

    SETUP FOR EITHER OF THE BELOW:

    SPECIFICATIONS:

    • Duty rating @ 100% – 310 amps
    • Duty rating @ 60% – 400 amps
    • Pulls 3-phase 30amps @ 400amps
    • MCB D-rated trip needed





    Want more information? Call us...
    01246 205 267 info@spectrumweldingsupplies.co.uk
    Supply Voltage

    415V

    Welding Equipment Type

    MIG Air Cooled

    MIG Wire Diameter

    0.8-1.0mm solid, 1.0-1.2mm solid, 1.2mm flux cored

    Downloads

    Fabricator 401 air cooled brochure

    Fabricator 401 spec sheet

    Fabricator Feed 304 spec sheet

    Fabricator Feed 304 manual

    Fabricator Feed 304 spares list
