ESAB Warrior 400 air cooled MIG welder with Feed 304

£3,800.00 exc VAT

Warrior. Designed to survive. Package complete inc. torch & earth @ £3,800 quid.

An outstanding heavy duty 400amp air cooled MIG welder for welding mild steel. This 400 model can also ARCAIR gouge 6.0mm gouging carbons perfectly @ 330amps on a 32amp plug, for short durations.

NOTE. Never go past 100% duty rating for long durations for machine longevity. The 400 model is NOT designed for 8.0mm gouging carbons, which are best used @ 400amps for optimal results. You will burn the machine out if using 8.0mm carbons (Warrior 500 model needed with 400amps @ 100% duty for 8.0mm carbons).

The Warrior Feed 304 is a reliable wire feeder, and an excellent cheaper alterative to the superior ultra duty RobustFeed Pro.

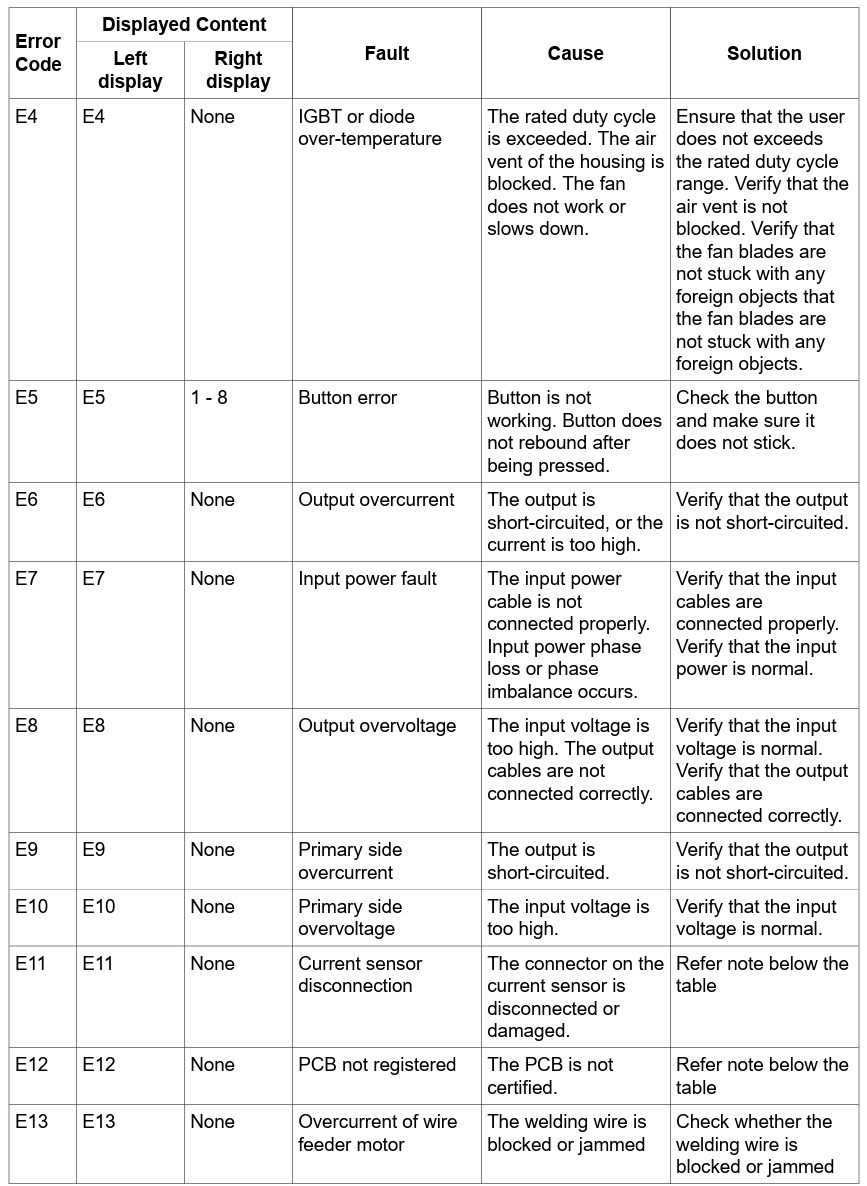

Also, the Warrior 400 machine has ZERO issues when running our MB36 spool-on-gun. We tried a Fabricator 401 with the spool-on-gun, but after a few months Error Code E6 kept coming up. This was due to PCBs detecting current irregularities from the open circuit voltage, but mainly the synergic lines freaking out due to the instantaneous voltage spike due to how aluminium responds upon welding. The Fabricator synergic lines are not designed for aluminium, but this Warrior can do anything and doesn’t stop until the job is done.

Product Description

PACKAGE INCLUDES:

  • Warrior 400i CC/CV MIG welder part no. 0465350884
  • 3m x 6mm² 4-core SY power supply cable fitted

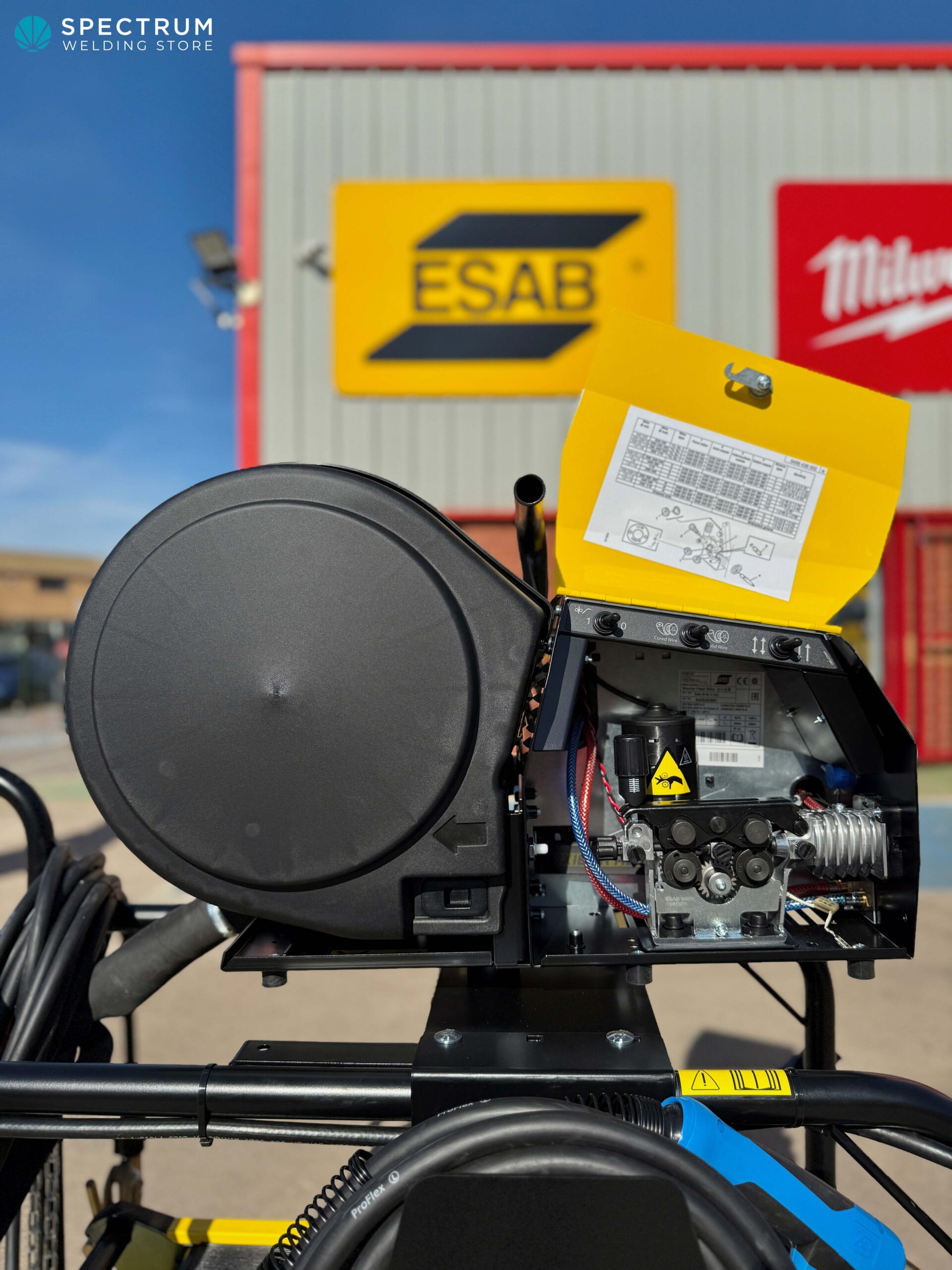

  • Warrior Feed 304 part no. 0465250881
  • Feed 304 interconn strain relief part no. 0459234880 (for back of wire feeder)
  • Warrior trolley inc. bottle / cable / torch carriers part no. 0349313450
  • TBi MB36 x 4mtr air cooled MIG torch
  • 600amp x 5mtr 70mm² earth lead
  • 5m 70mm² interlink (machine to feeder reach) 0459836881
  • 3mtr 20bar 6mm ID 3/8th nut argon hose
  • 415V 32amp 4 or 5-pin red plug
  • Assembled
  • Weld tested

SETUP FOR EITHER OF THE BELOW:

SPECIFICATIONS:

  • Duty rating @ 100% – 300 amps
  • Duty rating @ 60% – 400 amps
  • Pulls 3-phase 30amps @ 400amps
  • MCB D-rated trip needed
Want more information? Call us...
01246 205 267 info@spectrumweldingsupplies.co.uk
MIG Feeder Reach

5 mtr interlink

Welding Equipment Type

MIG Air Cooled

Supply Voltage

415V

MIG Wire Diameter

0.8-1.0mm solid, 1.0-1.2mm solid, 1.2mm flux cored
