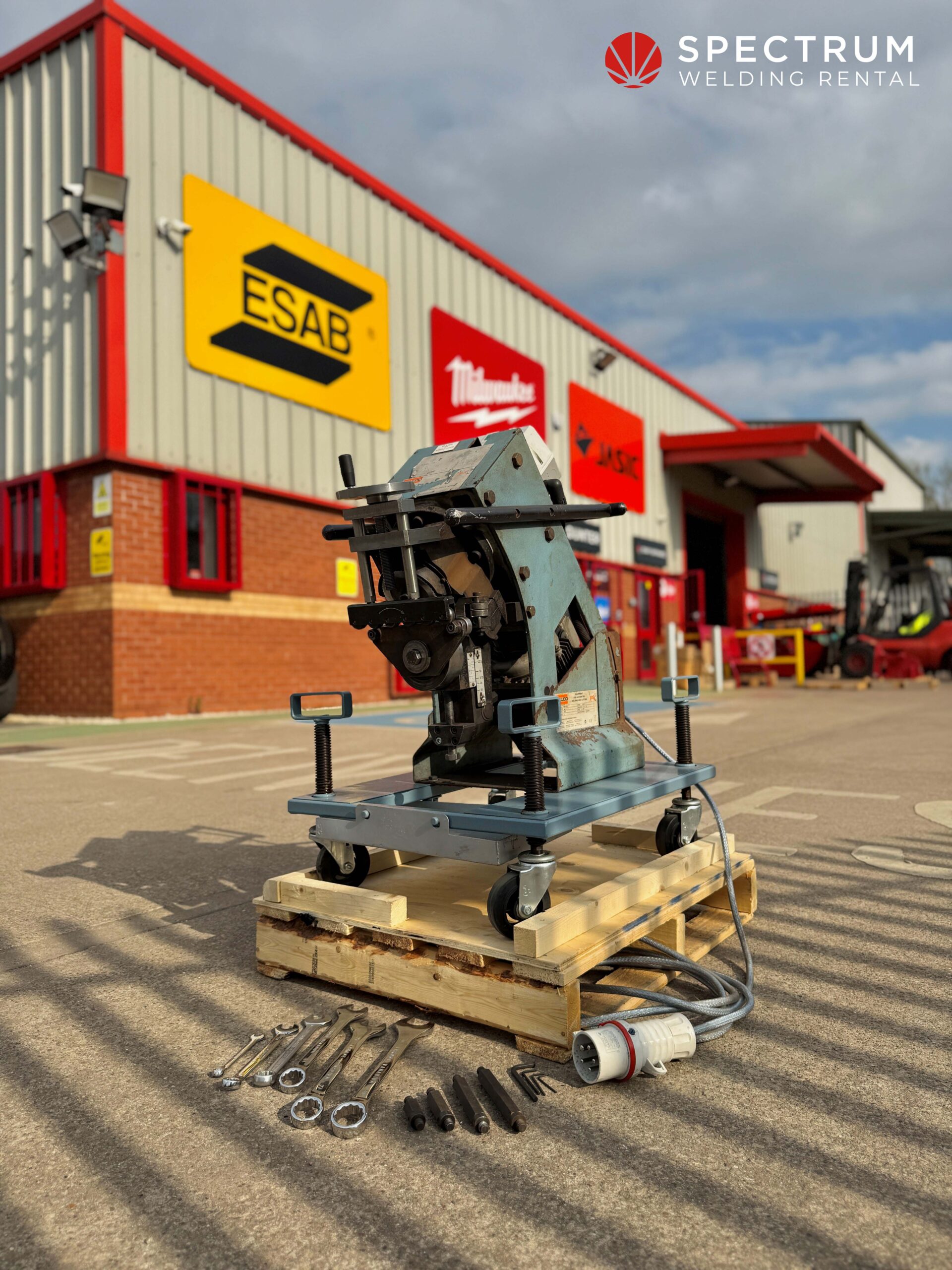

Product Description
- Max bevel width: 18mm
- Max bevel depth: 15.6mm
- Minimum plate thickness: 6.3mm
- Max plate thickness: 38.1mm
- Bevel speed: 300cm p/min
- Supply voltage: 415V 32amp plug
- Adjustable height self-aligning undercarriage KBM-18-069
- KBM-18-X1C Mild Steel Cutter
- Bevel Angle Pins for: 22 1/2º, 30º, 37 1/2º, 45º and 55º
- Tool Kit
NOTE

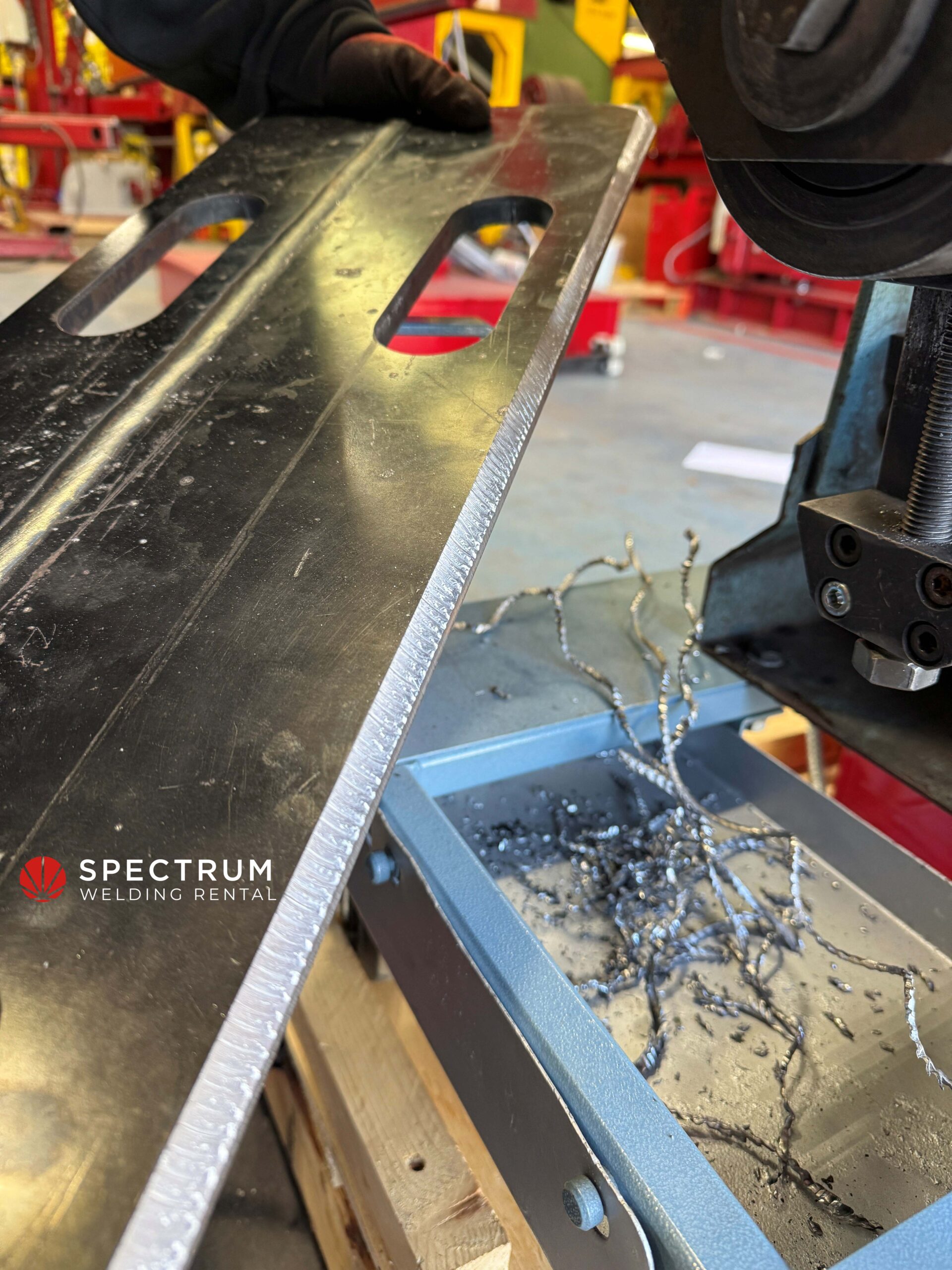

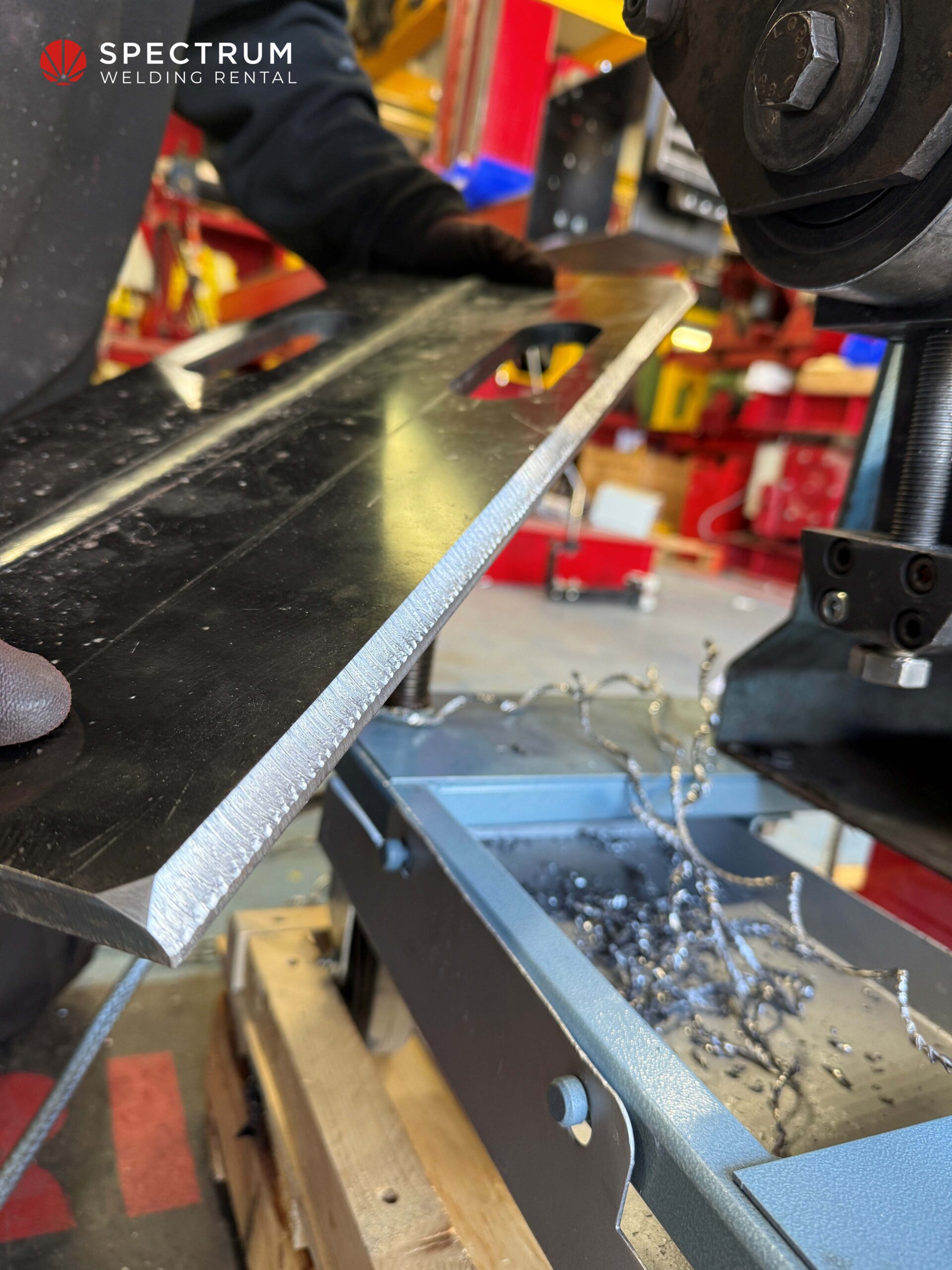

When bevelling thicker plate ie. 15mm plate with a 5mm root face @ 30º, this will need to sent through the beveller at least twice. You will need to set the root face measurement (dropping the roller down) @ 10mm, send the plate through, then after that cut set the root gap to 5mm, and do a second bevel for correct results (5mm off each time on thicker plate).

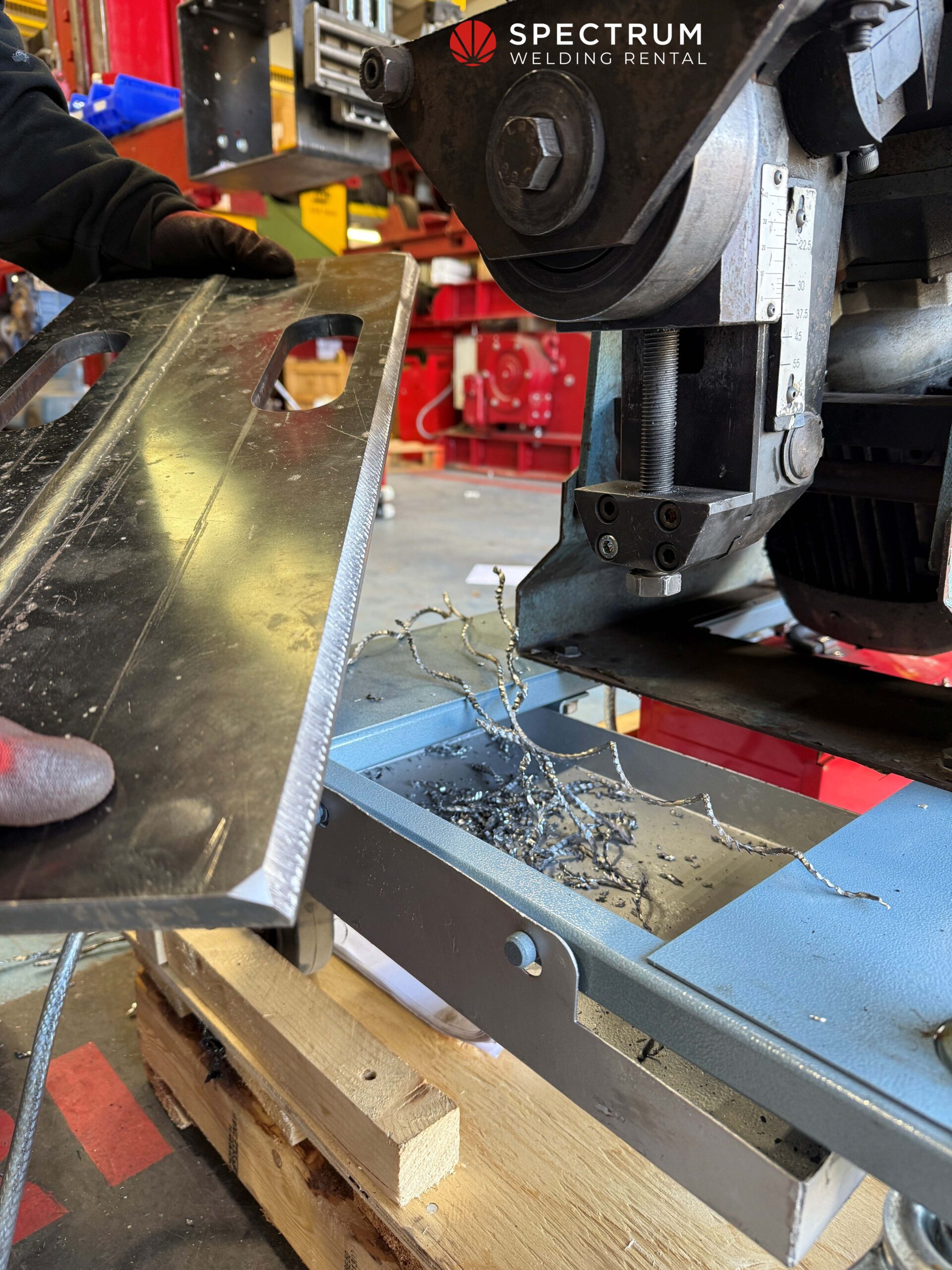

The root face setting 0-40mm on the side (adjusted via the threaded bar underneath) represents the gap from the cutter ie. @ ‘5’ will leave a 5mm vertical root face, whereby the bevelled edge will start above that 5mm root face.
The roller assembly stabilising clamp should only touch down on top of the plate after fed into the beveller. DO NOT over tighten to prevent bending the bars.
