Warrior ECHO and RobustFeed AVS ECHO site MIG for hire

HIRE 500 ECHO @ £200 p/week

A genius bit of kit, and the ultimate solution to long reach site welding. No controller cable needed, and a wire feeder capable of remotely controlling amps and feed speed. Copper welding cable only. This means no more having to go back to the welder to change the amps. It can all be done from your working area.

NOTE. Make sure the small reference lead clamp plugged into the front of the feeder is clamped onto the same steel as the earth clamp, to create the ‘AVS’ circuit.

With the a special signal sent down the copper welding cable, this is a big upgrade from the standard Warrior 500 and RobsutFeed AVS, which is also doesn’t need a controller cable, but can only control the feed speed from the feeder, and not the amps (adjusted from the power source only).

The Warrior ECHO is also extremely generator friendly, needing 1 of our 30 kVA diesel generators to power 1 off, or 1 off 60 kVA model to power 2 off ECHO MIGs. This generator and welder package setup is the best site MIG welding solution where reach and run time is critical, with bigger generators and external diesel fuel tanks having up to 1,500 ltrs lasting weeks (compared to 40 ltr tank diesel welder generators lasting 11 hours).

NOTE. The AVS ECHO feeder works with all CV diesel welder generators and the standard Warrior 500 (feed speed control only), HOWEVER, The ECHO feeder can only control weld current ‘and’ feed speed when used with the Warrior ECHO power source (not the standard Warrior 500).

Reach	Configuration	Weekly Hire Rate
20m	2 x 15m cables	£200 p/week
35m	4 x 15m cables	£250 p/week
50m	6 x 15m cables	£300 p/week
65m	8 x 15m cables	£350 p/week
80m	10 x 15m cables	£400 p/week
95m	12 x 15m cables	£450 p/week

Email us to set an account up and hire straight away.

Hire this site MIG

Product Description

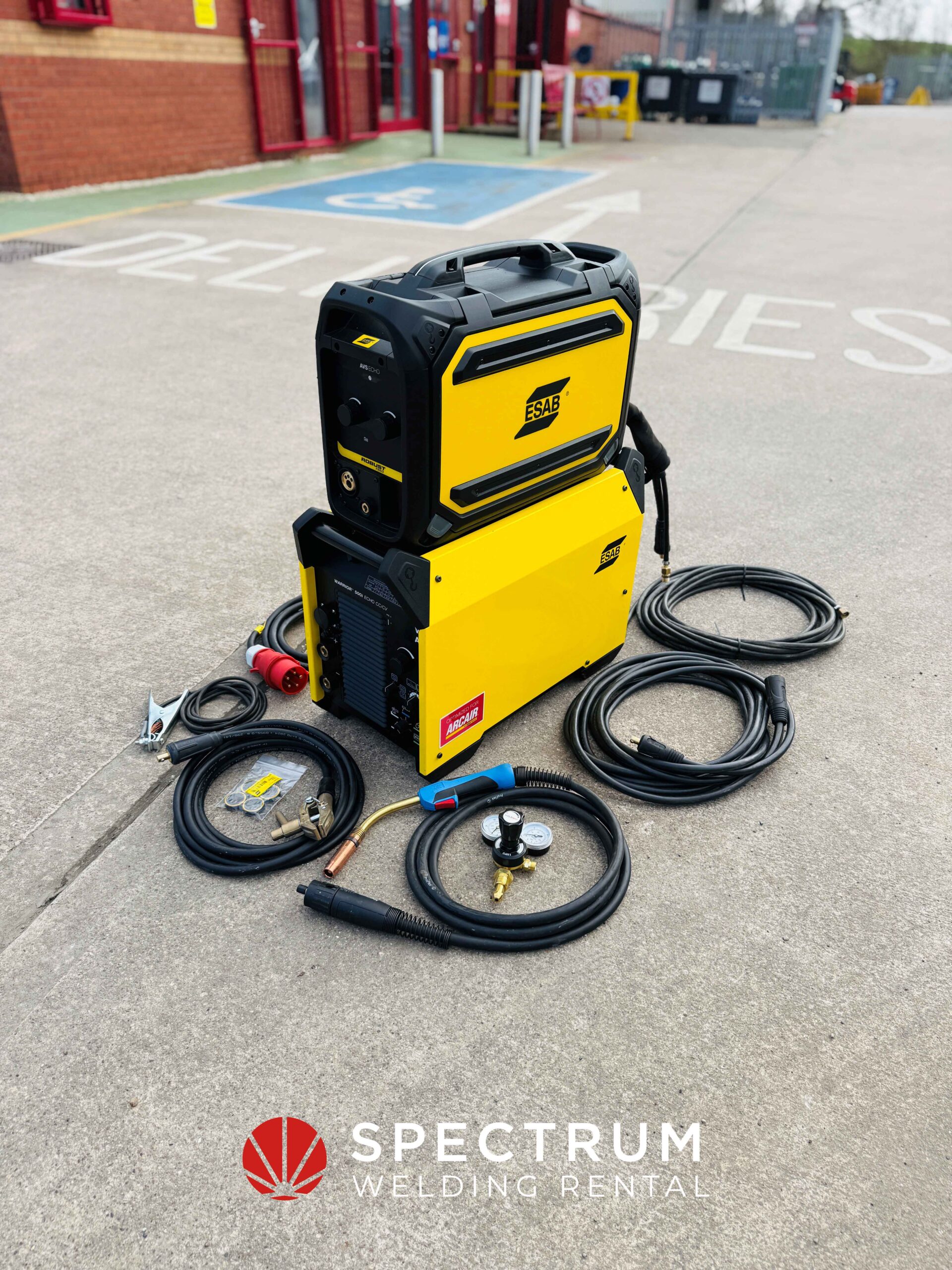

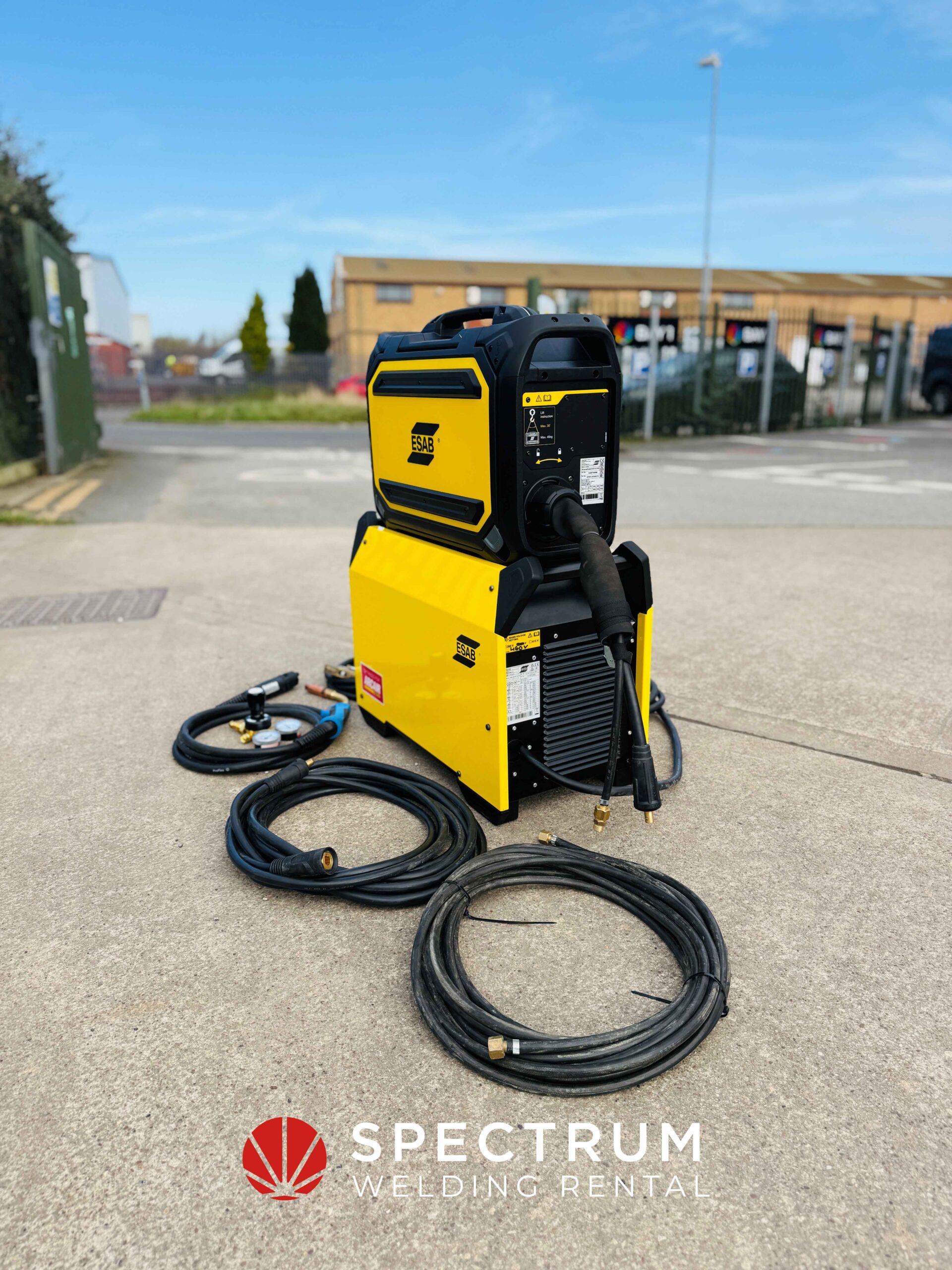

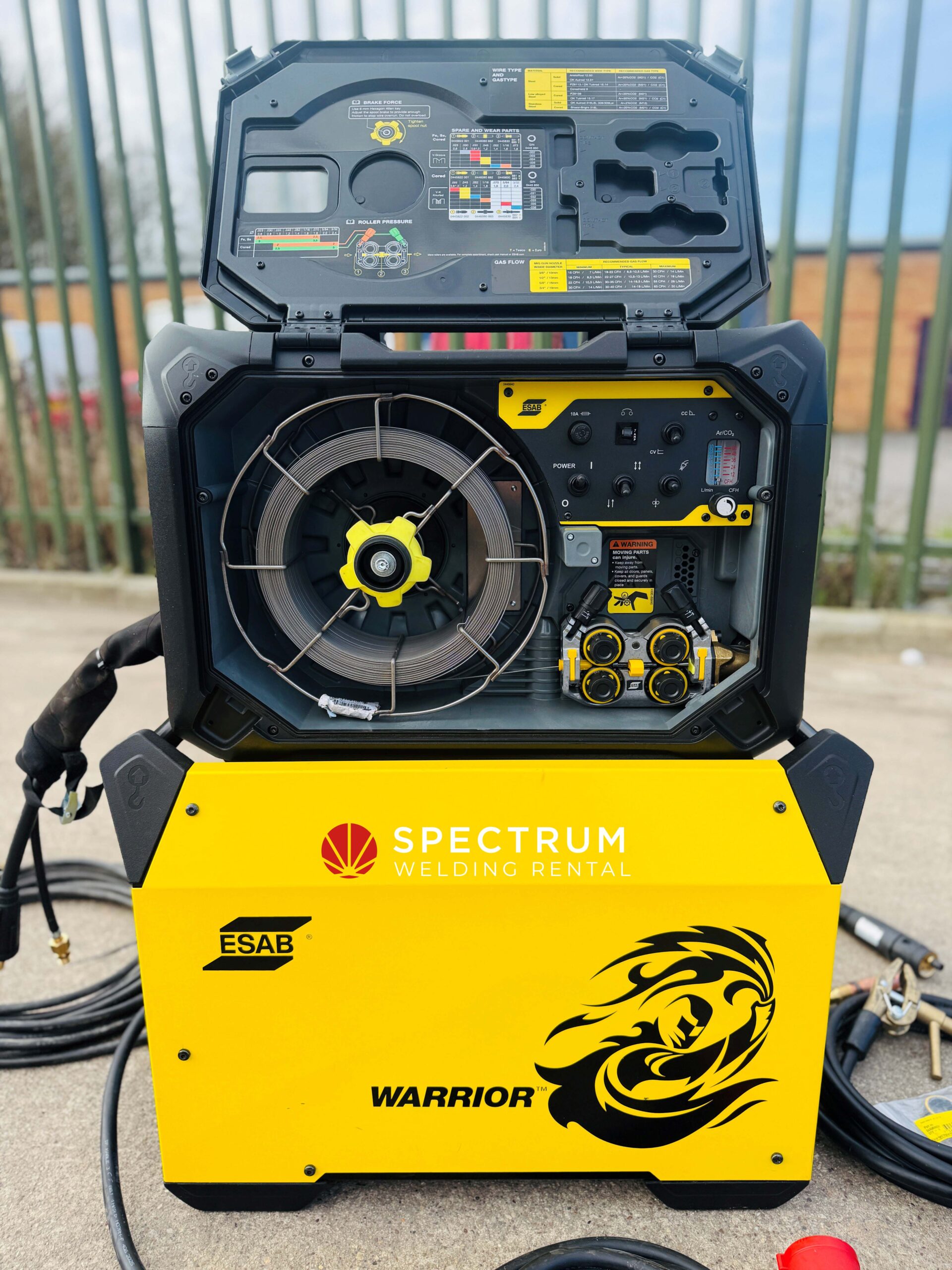

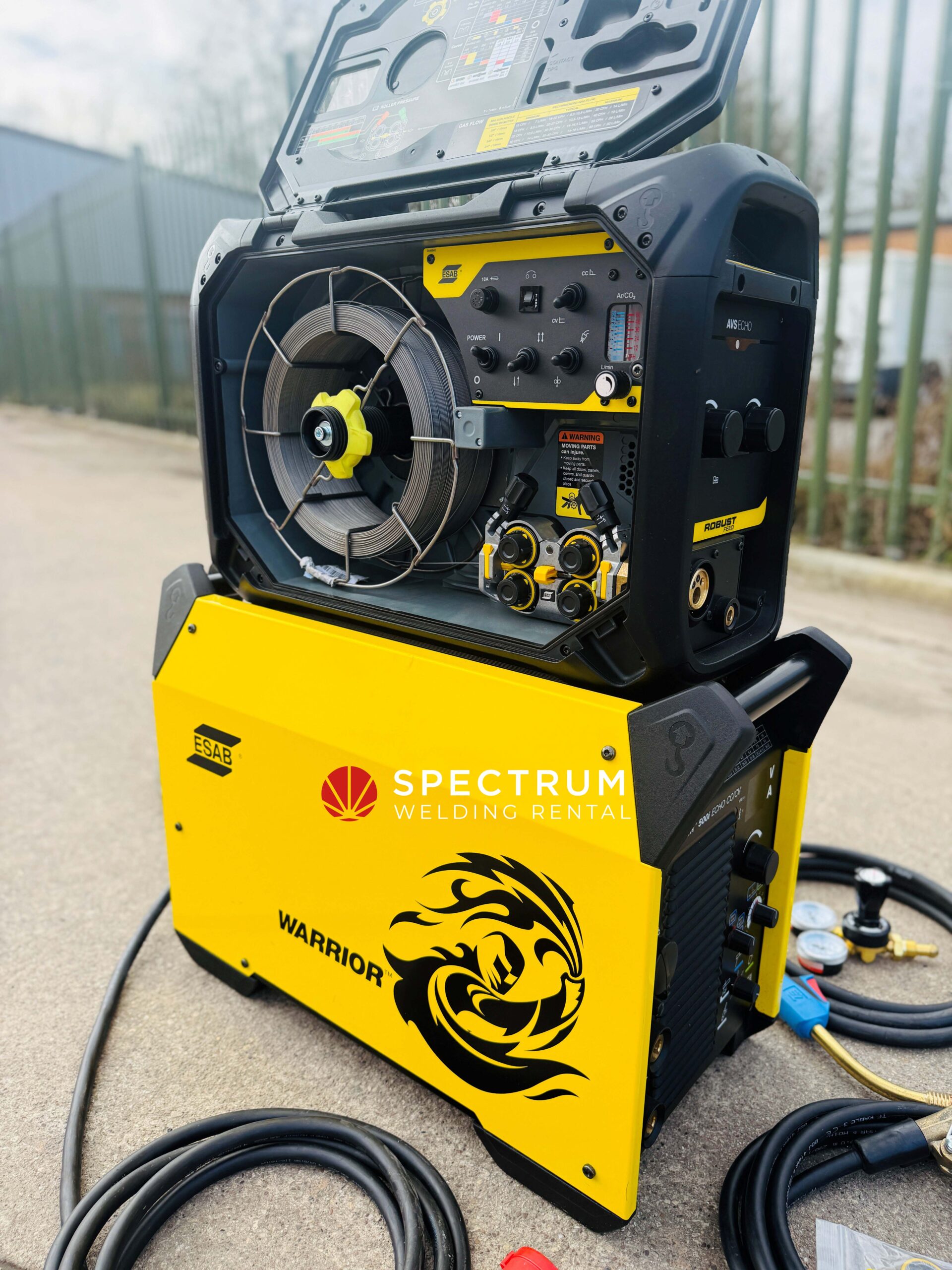

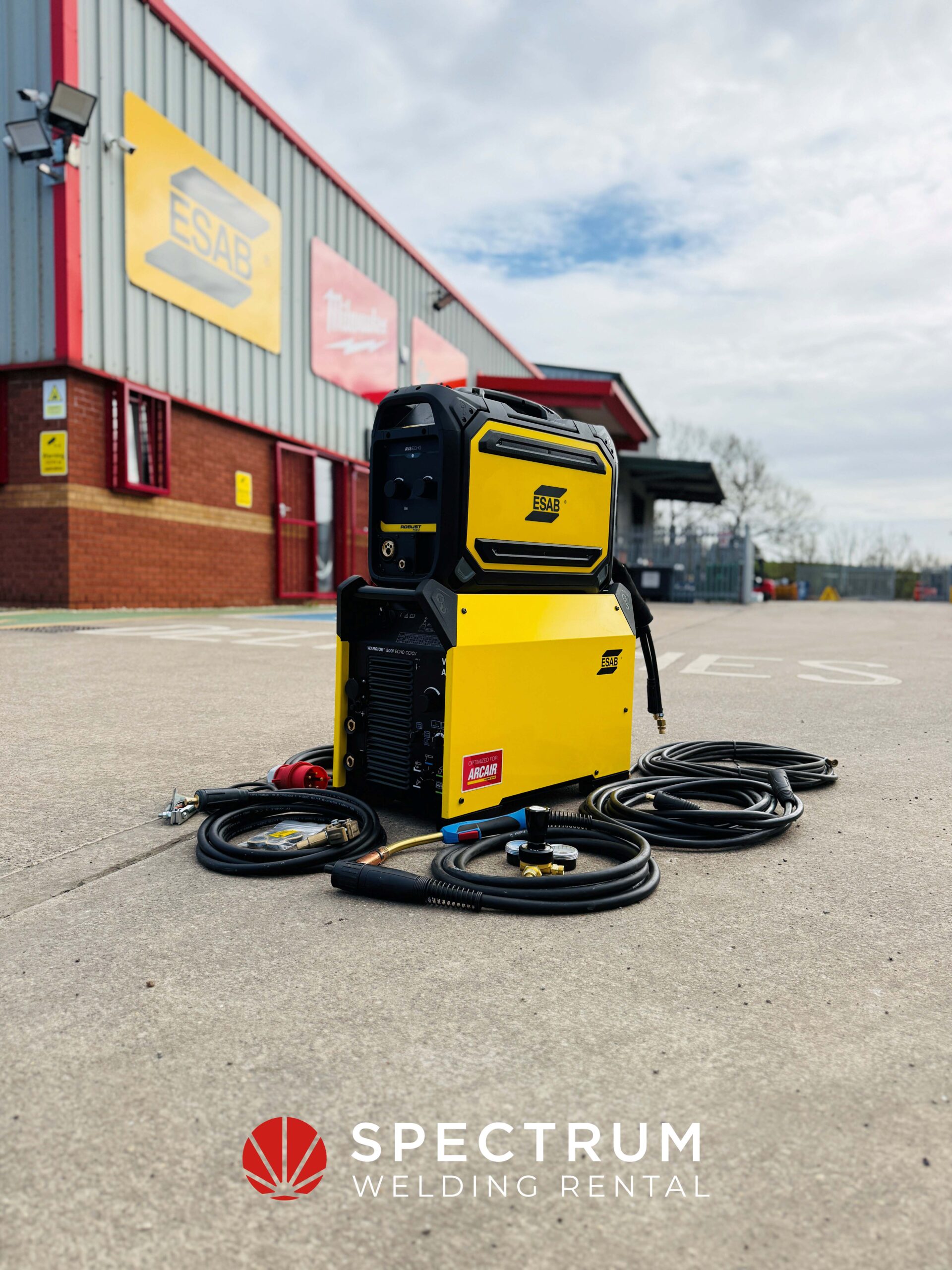

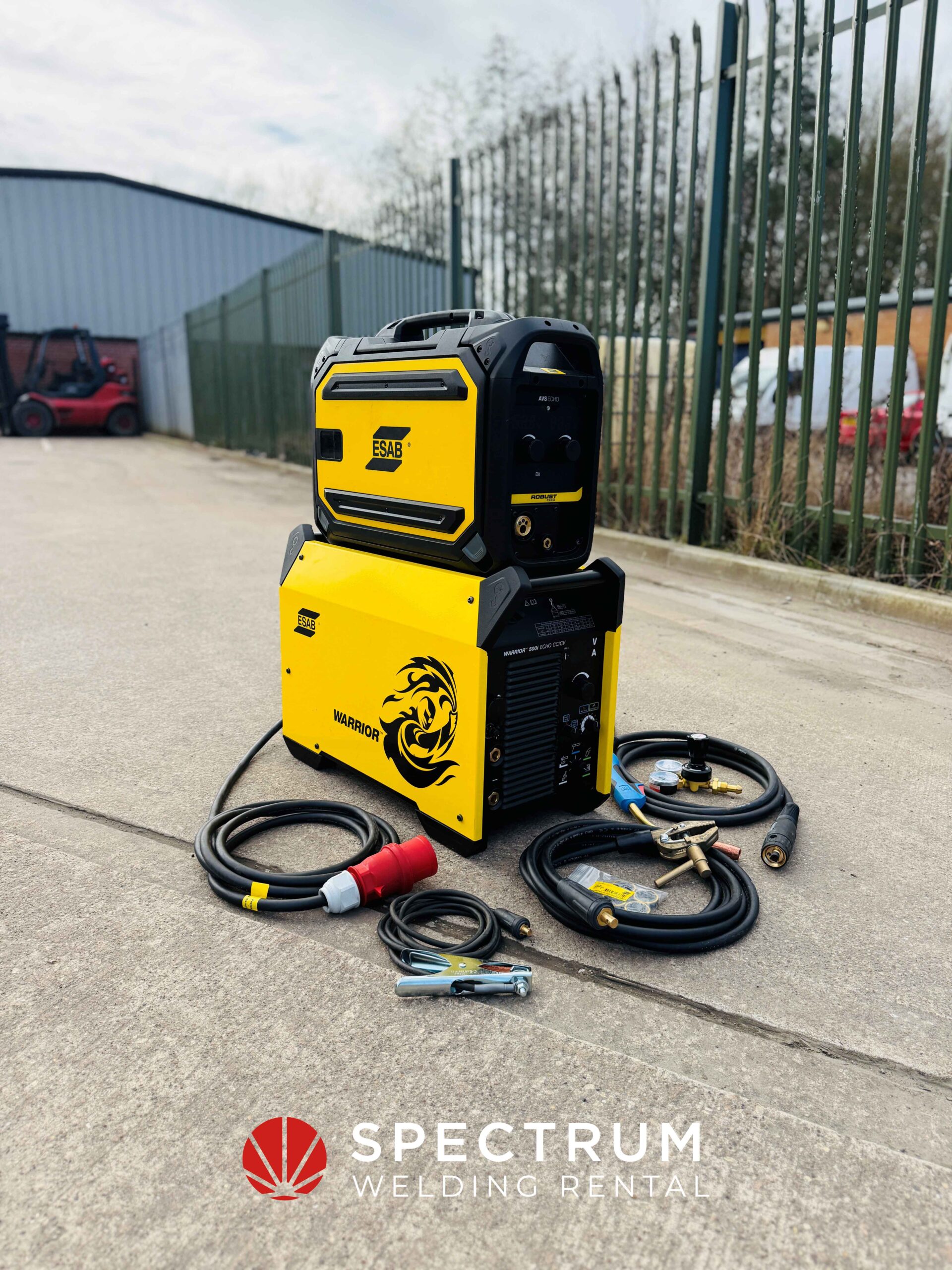

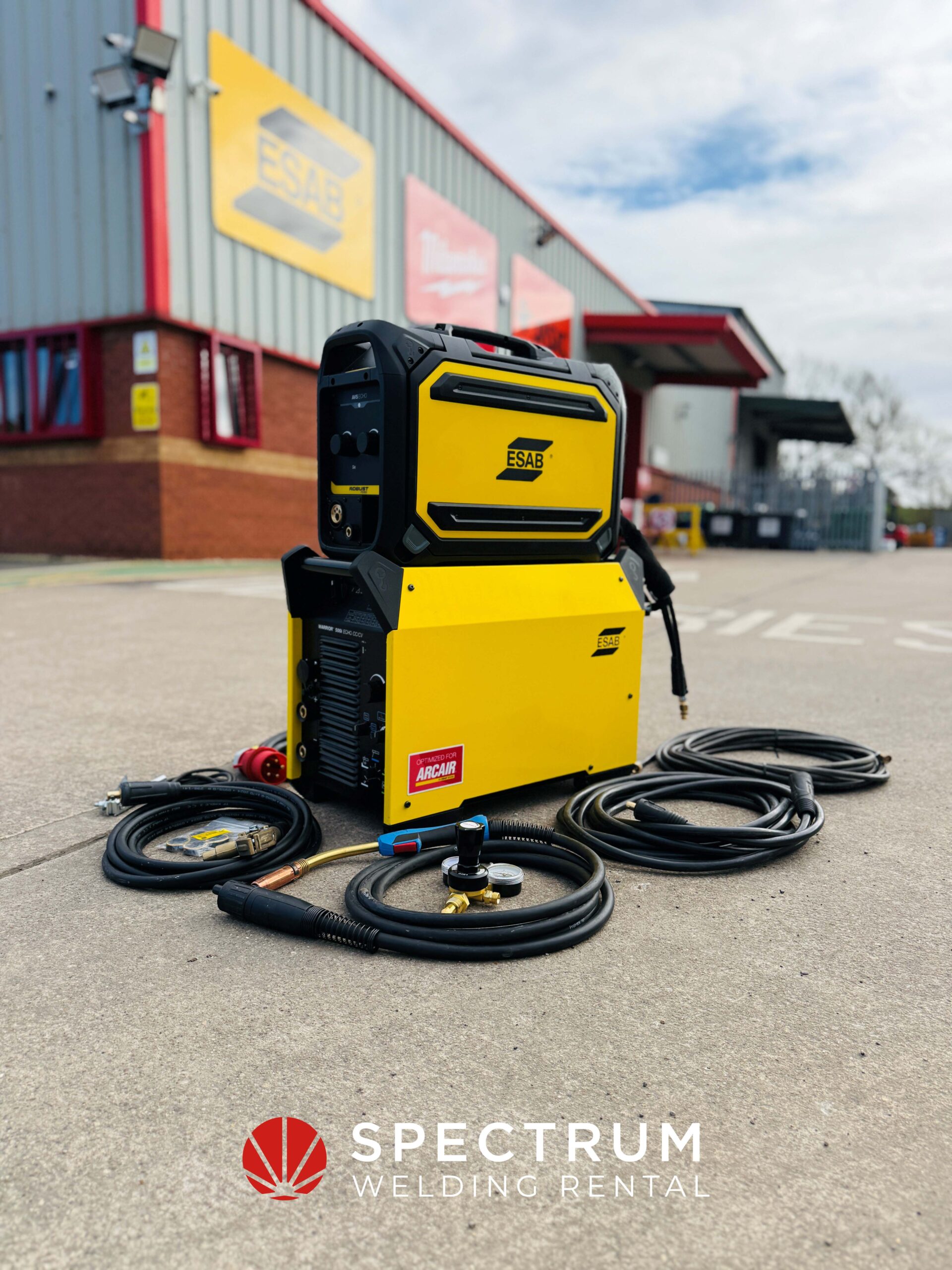

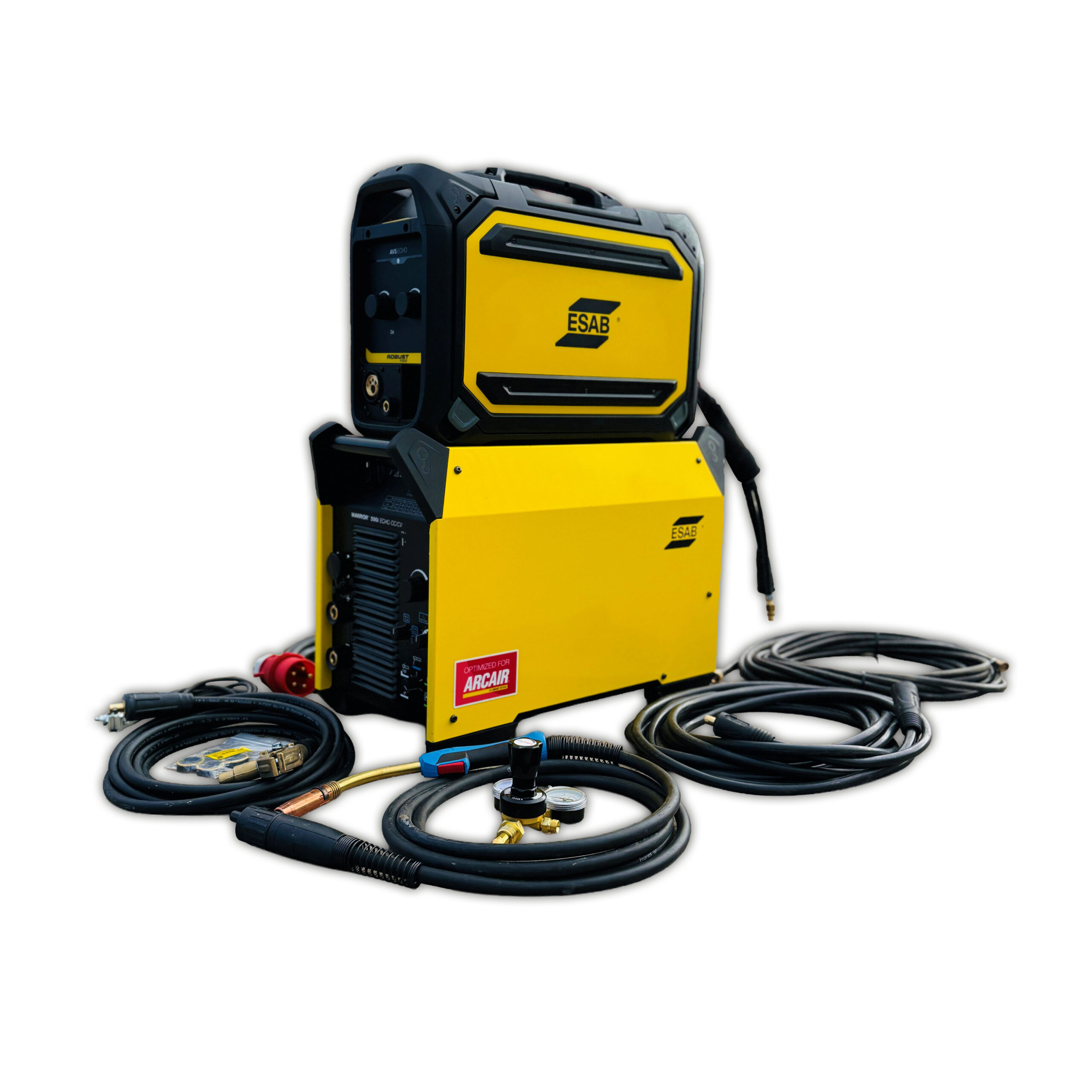

PACKAGE INCLUDES:

Warrior 500mp ECHO portable welder power source
ESAB Robustfeed AVS ECHO site feeder with welder socket & coupler
inc. 3/8th hose fitting + 7mtr reference lead clamp
Setup 0.8mm/1.0mm/1.2mm solid/1.2mm/1.6mm flux-core
MB36 x 3m / 4m / 5m air cooled MIG torch (300amps @ 40% duty)
600amp x 5mtr x 70mm² earth lead
15mtr x 70mm² copper cable extension leads (x2)
inc. 70-95mm² welder plug & sockets
20bar x 15mtr x 6mm ID argon hose
inc. 3/8th fittings & male/male couplers (x2)
10 bar argon regulator & 40ltr flow meter + gas flow tester

Component	Specification	Reach
Argon Hose	6mm ID / 20 Bar	0–45m
Argon Hose	10mm ID / 20 Bar	45–90m
Copper Cable	70mm²	0–45m
Copper Cable	95mm²	45–95m

A 95m reach package is the max capacity (200m cable circuit capacity = 95m ‘-‘ earth cable & 95m ‘+’ feeder cable), and would include:

6 x 15m argon hoses inc. couplers
5m earth
5m torch
180m of premium rubber copper welding extension cables (12x 15m lengths with welder plugs & sockets)

OPTIONAL HIRE EQUIPMENT

+ 15m +&- welding cable & argon hose set reach available upon request @ £50 p/week
MMA electrode cable upgrade (for MIG & MMA) @ £50 p/week

Our rental Warrior 500 ECHO needs to be on ‘AVS Mobile Feed CV‘ mode to work with our rental RobustFeed AVS ECHO ‘voltage-sensing’ wire feeder with reference lead.

The RobustFeed AVS ECHO is same feeder used with our 400amp CV diesel welder generator hire plant, and is designed to be used at shipyards for maximum access, where the wire feeder needs to be a very, very long way from the welder power source.
