£900.00 exc VAT
The highest quality heaviest duty range of manual air arc gouging torches in the world.
The ARCAIR Professional Tri-Arc foundry range offers up 2200amps capacity for 25.4mm carbons, and designed for the harshest environments possible, such as 24 hour foundry production lines.
These genuine Tri-Arc air arc gouging torches will last a long time, and is the most efficient way to tackle large castings steel removal after they’ve developed defects such as:
Before repair welding, the defect must be completely removed, and fast. This Tri-Arc air arc gouging allows the operator to chase out the defect until sound metal is found. This is especially critical in forged rolls, pressure-retaining castings, and heavy engineering components.
19mm carbons are the most commonly used due to the massive steel removal rate, and this Tr-Arc torch handles the workload perfectly.
NOTE. Each 95mm² welding cable = 400amps @ 100%
NOTE. We recommend 6 off 95mm² x 12mm lugged cables for the earth clamp

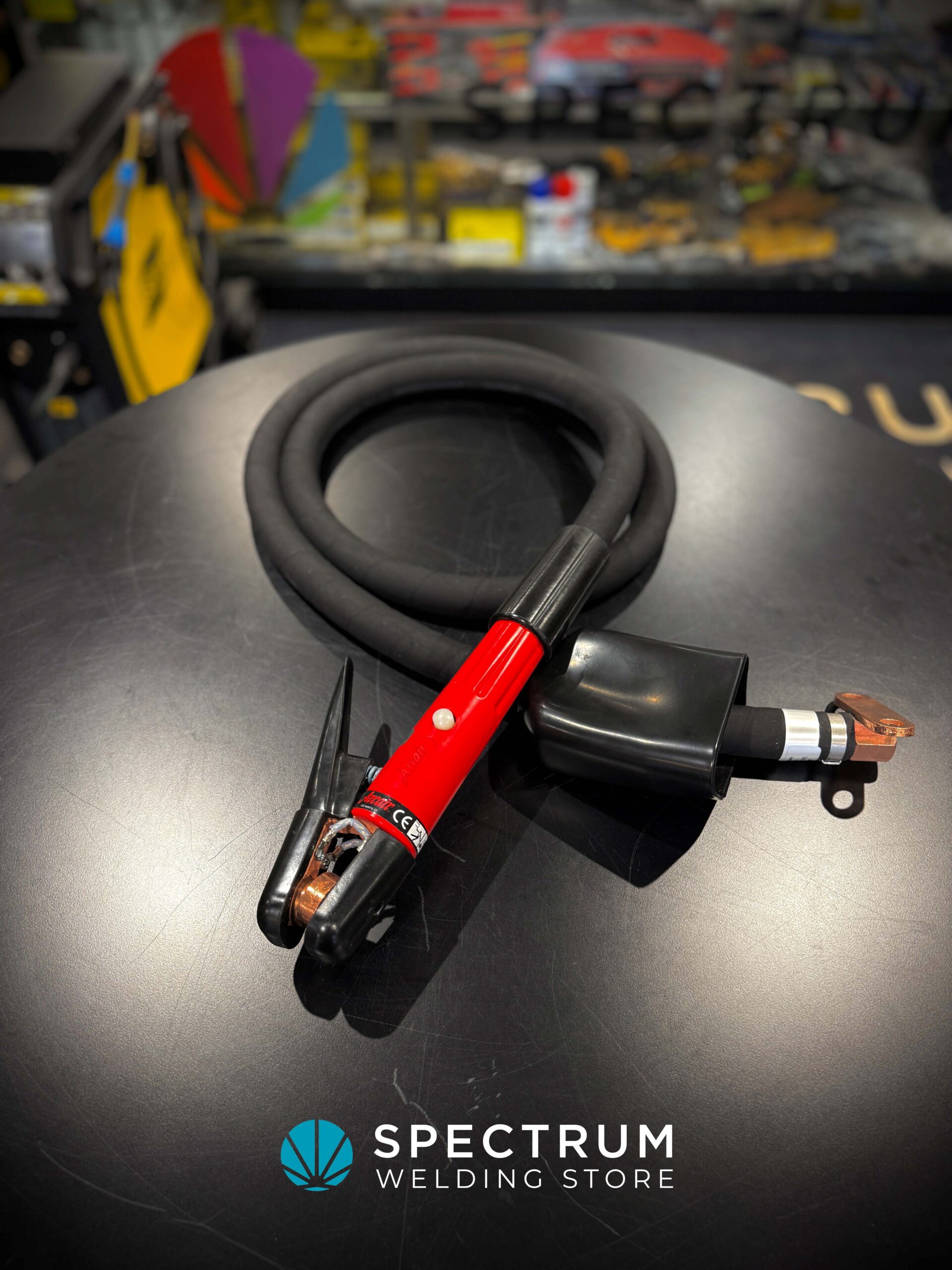

1x 1600amp torch 7 cable @ £700 net (part no. 62991417)
1x set (pair) of jaws (top & bottom) @ £200 net (part no. 94378298)
| Air Arc Carbon Capacity | upto 19mm |
|---|---|
| Cutting Process | Air Arc Gouging consumables |
