ESAB Cutmaster 30 plasma cutter package for hire

ESAB Cutmaster 30 plasma cutter for hire

Recommended cutting capacity = 10 mm (254 mm/min)
Maximum cutting capacity = 16 mm (150 mm/min)
Light and portable, weighing only 13 kg (including torch)
Easy to use 4.3″ colour LCD panel, with all adjustments in just one knob
Single-Phase 240 V 19amp load pull (32amp blue plug required)
Torch trigger 2T/4T function
Torch trigger lock for greater safety
Grate or plate cutting functions
Comes with torch included

ESAB Cutmaster 30 Cut Spec

Product Description

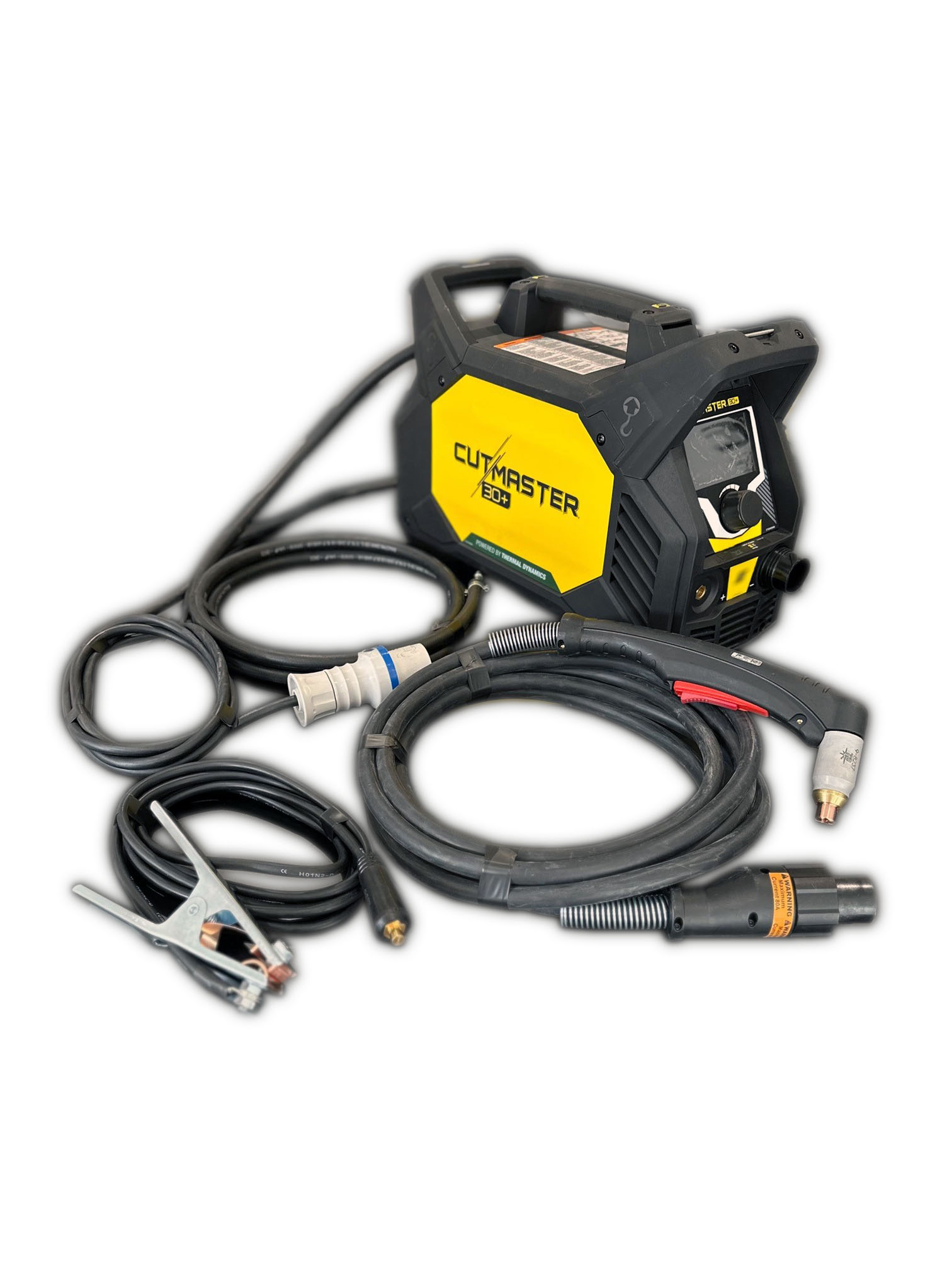

The Rental Package

Cutmaster 30 Plasma Power Source
32amp blue 240V plug fitted
SL60 1Torch plasma torch with 5 metre lead
Earth clamp with 3 metre lead
20bar x 2mtr (10mm ID) heavy duty black rubber reinforced air hose c/w male BSP compressor air fitting

Spec sheet download

Want more information? Call us...

01246 205 267 info@spectrumweldingsupplies.co.uk

Additional information

Mild Steel Clean Cut                     10 mm
Mild Steel Severance                    16 mm
Stainless Clean Cut                        8 mm
Aluminium Clean Cut                    6 mm
Input Power                                    220-240 V ±10%,1 ph
Duty Cycle                                       30 A/120 V@40%
Input Air Required                         0.6-0.8 MPa,145 LPM
Generator Required                      8 kVA
Dimensions L x W x H                   465x200x315 mm
Weight (incl. torch)                       13 kg

Weight	13 kg
Dimensions	465 × 200 × 315 cm
Cut Capacity	0-10 mm

Downloads

Download the brochure for:
