400amp ESAB Fabricator EM 401i air cooled MIG

ESAB Fabricator EM 401i air cooled MIG welder for hire - Image 2

400amp ESAB Fabricator EM 401i air cooled MIG welder

ESAB Fabricator EM 401i air cooled MIG welder for hire - Image 4

ESAB Fabricator EM 401i air cooled MIG welder for hire

TO HIRE 401 @ £100 p/week

Email us to set an account up and hire straight away.

The Fabricator 401 is a heavy duty 400amp air cooled inverter controlled power source, designed for all-day mild steel MAG welding 1.0mm and 1.2mm OK Aristorod 12.50 copper-free bare solid wire.

Built to withstand harsh environments, it’s soon become the No.1 solution for most fabrication shops in the UK.

See spec sheet: ESAB Fabricator EM 401i hire

Email about this machine: info@spectrumweldingsupplies.co.uk

Product Description

PACKAGE INCLUDES:

Fabricator 401 MIG welder part no. 0446400884
3m x 6mm² 4-core SY power supply cable fitted
Fabricator Feed 304 part no. 0446401881
Feed 304 interconn strain relief part no. 0459234880 (for back of wire feeder)
On wheels with bottle trolley
TBi MB36 x 4mtr air cooled MIG torch
400amp x 5mtr 50mm² earth lead c/w 400amp clamp
10mtr interlink (machine to feeder reach)
3mtr 20bar 6mm ID 3/8th nut argon hose
415V 32amp 4 or 5-pin red plug
Assembled
Weld tested

SETUP FOR EITHER OF THE BELOW:

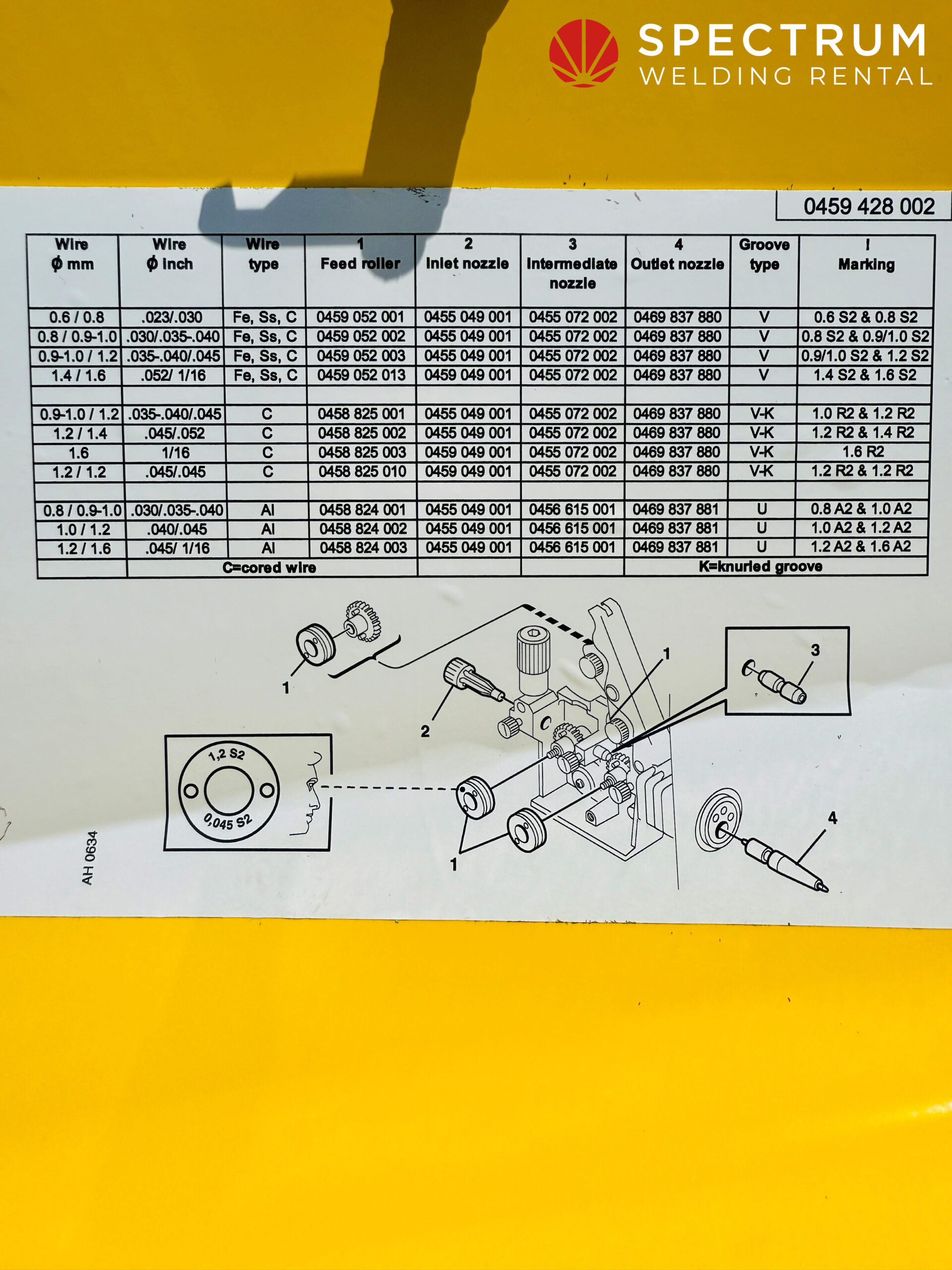

4x, 1.0mm – 1.2mm V-Groove solid wire MIG wire drive rollers
4x, 1.2mm – 1.6mm V-Groove solid wire MIG wire drive rollers
4x, 1.2mm – 1.6mm knurled serrated groove flux-cored MIG wire drive rollers

SPECIFICATIONS:

Duty rating @ 100% – 310 amps
Duty rating @ 60% – 400 amps
Pulls 3-phase 30amps @ 400amps
MCB D-rated trip needed

Want more information? Call us...

01246 205 267 info@spectrumweldingsupplies.co.uk

Supply Voltage	415V
Welding Equipment Type	MIG Air Cooled
MIG Wire Diameter	0.8-1.0mm solid, 1.0-1.2mm solid, 1.2mm flux cored

Downloads

Fabricator 401 air cooled brochure

Fabricator 401 spec sheet

Fabricator Feed 304 spec sheet

Fabricator Feed 304 manual

Fabricator Feed 304 spares list
